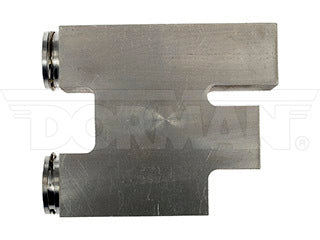

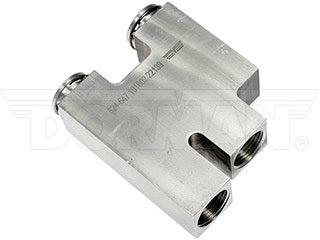

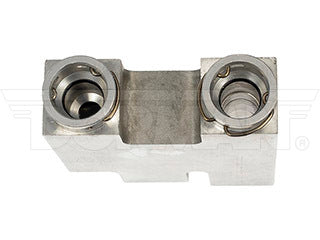

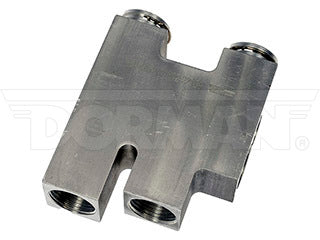

Dorman 624-647 Transmission Oil Cooler Bypass Valve
Regular price
$0.00
Couldn't load pickup availability
Product Description
This transmission oil cooler bypass valve is designed to regulate the flow and temperature of the transmission fluid to ensure the proper operating temperature of the transmission on specified vehicles.
- Ideal solution - this transmission oil cooler bypass valve is designed to help regulate the flow and temperature of the transmission fluid on specified vehicles
- Protects transmission - engineered to ensure the optimal operating temperature of the transmission fluid and transmission
- Durable construction - made of quality materials for reliable performance and service life
- Trustworthy quality - backed by a team of product experts in the United States and more than a century of automotive experience
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2018 | Ram | 2500 | L6 408 6.7L; 68RFE Trans. | ||
| 2018 | Ram | 2500 | V8 345 5.7L; 68RFE Trans. | ||
| 2018 | Ram | 2500 | V8 392 6.4L (6424cc); 68RFE Trans. | ||
| 2018 | Ram | 3500 | L6 408 6.7L; 68RFE Trans. | ||
| 2018 | Ram | 3500 | L6 408 6.7L; AS69RC Trans. | ||
| 2018 | Ram | 3500 | V8 345 5.7L; 68RFE Trans. | ||
| 2018 | Ram | 3500 | V8 345 5.7L; AS69RC Trans. | ||
| 2018 | Ram | 3500 | V8 392 6.4L (6424cc); 68RFE Trans. | ||
| 2018 | Ram | 3500 | V8 392 6.4L (6424cc); AS69RC Trans. | ||
| 2018 | Ram | 4500 | L6 408 6.7L | ||
| 2018 | Ram | 4500 | V8 392 6.4L (6424cc) | ||
| 2018 | Ram | 5500 | L6 408 6.7L | ||
| 2018 | Ram | 5500 | V8 392 6.4L (6424cc) | ||
| 2017 | Ram | 2500 | L6 408 6.7L; 68RFE Trans. | ||
| 2017 | Ram | 2500 | V8 345 5.7L; 68RFE Trans. | ||
| 2017 | Ram | 2500 | V8 392 6.4L (6424cc); 68RFE Trans. | ||
| 2017 | Ram | 3500 | L6 408 6.7L; 68RFE Trans. | ||
| 2017 | Ram | 3500 | L6 408 6.7L; AS69RC Trans. | ||
| 2017 | Ram | 3500 | V8 345 5.7L; 68RFE Trans. | ||
| 2017 | Ram | 3500 | V8 345 5.7L; AS69RC Trans. | ||
| 2017 | Ram | 3500 | V8 392 6.4L (6424cc); 68RFE Trans. | ||
| 2017 | Ram | 3500 | V8 392 6.4L (6424cc); AS69RC Trans. | ||
| 2017 | Ram | 4500 | L6 408 6.7L | ||
| 2017 | Ram | 4500 | V8 392 6.4L (6424cc) | ||
| 2017 | Ram | 5500 | L6 408 6.7L | ||
| 2017 | Ram | 5500 | V8 392 6.4L (6424cc) | ||
| 2016 | Ram | 2500 | L6 408 6.7L; 68RFE Trans. | ||
| 2016 | Ram | 2500 | V8 345 5.7L; 68RFE Trans. | ||
| 2016 | Ram | 2500 | V8 392 6.4L (6424cc); 68RFE Trans. | ||
| 2016 | Ram | 3500 | L6 408 6.7L; 68RFE Trans. | ||
| 2016 | Ram | 3500 | L6 408 6.7L; AS69RC Trans. | ||
| 2016 | Ram | 3500 | V8 345 5.7L; 68RFE Trans. | ||
| 2016 | Ram | 3500 | V8 345 5.7L; AS69RC Trans. | ||
| 2016 | Ram | 3500 | V8 392 6.4L (6424cc); 68RFE Trans. | ||
| 2016 | Ram | 3500 | V8 392 6.4L (6424cc); AS69RC Trans. | ||
| 2016 | Ram | 4500 | L6 408 6.7L; AS69RC Trans. | ||
| 2016 | Ram | 4500 | V8 392 6.4L (6424cc); AS69RC Trans. | ||
| 2016 | Ram | 5500 | L6 408 6.7L; AS69RC Trans. | ||
| 2016 | Ram | 5500 | V8 392 6.4L (6424cc); AS69RC Trans. |
Product Specifications
| Body Height: | 1 in |
|---|---|
| Body Length: | 3.4 in |
| Body Width: | 2.75 in |
| Color: | Silver |
| Inlet Port Connection Type: | Quick Connect; Threaded |
| Inlet Port Diameter: | 12.7 mm |
| Inlet Port Quantity: | 2 |
| Internal Pressure Relief Valve: | Yes |
| Outlet Port Connection Type: | Quick Connect; Threaded |
| Outlet Port Diameter: | 12.7 mm |
| Outlet Port Quantity: | 2 |
| Package Contents: | 1 Transmission Oil Cooler Bypass Valve Assembly; 2 O-rings; 2 Retaining Clips |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Selling Package Quantity UOM: | Piece |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 68186711AA | CHRYSLER |
| 68186711AB | CHRYSLER |
| 68186711AB | FORD MOTOR COMPANY |
