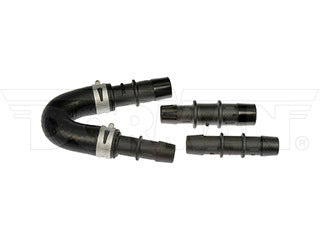

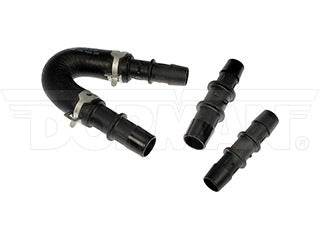

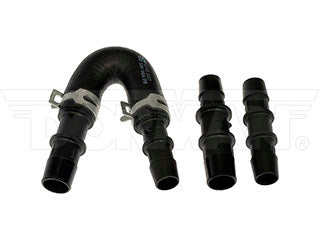

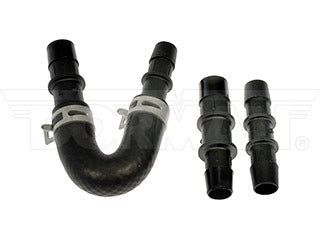

Dorman 626-001CD HVAC Heater Hose Assembly
Regular price
$15.06
Couldn't load pickup availability
Product Description
This replacement HVAC heater hose assembly is engineered to match the fit and durability of the stock heater hose assembly on specified vehicles. It is designed to withstand extreme temperature changes to extend service life.
- Ideal replacement - this HVAC heater hose assembly directly replaces the original heater hose on specified vehicle years, makes and models
- Durable construction - this part is specifically designed to withstand extreme temperature changes and resist cracking and leaking
- Cost-effective and reliable - offers original manufacturer quality at lower cost than getting replacement at dealer
- Industry-leading design - professionally engineered by the aftermarket leader in heater hose assemblies
Product Specifications
| Axis 1 Length: | 4.5 in |
|---|---|
| Axis 2 Length: | 3.5 in |
| Branch Quantity: | 1 |
| Burst Pressure: | 125 PSI |
| Centerline Length: | 9.4 in |
| Clamps Included: | Yes |
| Color: | Black |
| Contains Spring: | No |
| Coolant Hose Heat Shield Included: | No |
| Coolant Hose Type: | Branched |
| End 1 Attachment Type: | Hose Barb |
| End 1 Inside Diameter: | 0.52 in |
| End 1 Type: | Flared Tube |
| End 2 Attachment Type: | Hose Barb |
| End 2 Inside Diameter: | 0.52 in |
| End 2 Type: | Flared Tube |
| End 3 Inside Diameter: | 0.52 in |
| End 4 Attachment Type: | Hose Barb |
| End 4 Inside Diameter: | 0.63 in |
| Grade Type: | Regular |
| Heat Shield Included: | No |
| Hose Attachment End 1: | Flared Tube |
| Hose Attachment End 2: | Flared Tube |
| Hose End (1) Outside Diameter (In): | 0.64 in |
| Hose End (2) Outside Diameter (In): | 0.53 in |
| Hose Material: | EPDM |
| Hose Outside Diameter: | 0.94 in |
| Hose Overall Length (In): | 5.2 in |
| Hose Quantity: | 1 |
| Hose Shape: | Molded Assembly |
| Inside Diameter: | 0.62 in |
| Length: | 5.2 in |
| Material: | EPDM |
| Maximum Bend Angle: | 26 Deg |
| Maximum Working Pressure: | 50 PSI |
| Modular: | No |
| Modular Components Included: | Quick Disconnect; Clamp |
| Molded: | Yes |
| Mounting Bracket Included: | No |
| Outside Diameter: | 0.94 in |

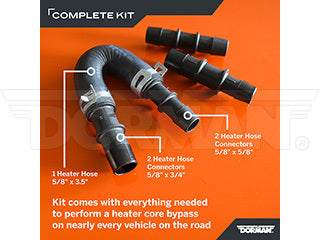

| Package Contents: | 1 Heater Hose; 2 Hose Clamps; 2 5/8 in x 3/4 in Heater Hose Connectors; 2 5/8 in x 5/8 in Heater Hose Connectors |
| Package Quantity: | 1 |
| Packaging Type: | Card |
| Protective Sleeve Attached: | No |
| Protective Sleeve Included: | No |
| Quick Connect Fitting Quantity: | 0 |
| Thermostatically Controlled: | No |
