Dorman 626-329 HVAC Heater Hose Assembly
Regular price
$78.24
Couldn't load pickup availability
Product Description

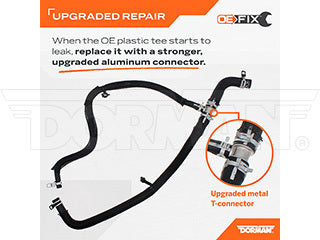

Original equipment HVAC heater hose assemblies often fail due to cracks in the plastic T-connector. This Dorman OE FIX replacement features an upgraded aluminum T-connector to prevent similar failures in the future.
- Upgraded material - this replacement engine heater hose assembly features aluminum T-connectors for added durability
- Application specific - designed to match the original fit and function of heater hoses on certain vehicle years, makes and models
- Complete replacement - hoses come with necessary clamps for easy installation
- Trustworthy quality - backed by a team of product experts in the United States and more than a century of automotive experience
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2023 | Chrysler | 300 | V6 220 3.6L (3604cc) | Inlet | |
| 2023 | Dodge | Challenger | V6 220 3.6L (3604cc) | Inlet | |
| 2023 | Dodge | Charger | V6 220 3.6L (3604cc) | Inlet | |
| 2022 | Chrysler | 300 | V6 220 3.6L (3604cc) | Inlet | |
| 2022 | Dodge | Challenger | V6 220 3.6L (3604cc) | Inlet | |
| 2022 | Dodge | Charger | V6 220 3.6L (3604cc) | Inlet | |
| 2021 | Chrysler | 300 | V6 220 3.6L (3604cc) | Inlet | |
| 2021 | Dodge | Challenger | V6 220 3.6L (3604cc) | Inlet | |
| 2021 | Dodge | Charger | V6 220 3.6L (3604cc) | Inlet | |
| 2020 | Chrysler | 300 | V6 220 3.6L (3604cc) | Inlet | |
| 2020 | Dodge | Challenger | V6 220 3.6L (3604cc) | Inlet | |
| 2020 | Dodge | Charger | V6 220 3.6L (3604cc) | Inlet | |
| 2019 | Chrysler | 300 | V6 220 3.6L (3604cc) | Inlet | |
| 2019 | Dodge | Challenger | V6 220 3.6L (3604cc) | Inlet | |
| 2019 | Dodge | Charger | V6 220 3.6L (3604cc) | Inlet | |
| 2018 | Chrysler | 300 | V6 220 3.6L (3604cc) | Inlet | |
| 2018 | Dodge | Challenger | V6 220 3.6L (3604cc) | Inlet | |
| 2018 | Dodge | Charger | V6 220 3.6L (3604cc) | Inlet | |
| 2017 | Chrysler | 300 | V6 220 3.6L (3604cc) | Inlet | |
| 2017 | Dodge | Challenger | V6 220 3.6L (3604cc) | Inlet | |
| 2017 | Dodge | Charger | V6 220 3.6L (3604cc) | Inlet | |
| 2016 | Chrysler | 300 | V6 220 3.6L (3604cc) | Inlet | |
| 2016 | Dodge | Challenger | V6 220 3.6L (3604cc) | Inlet | |
| 2016 | Dodge | Charger | V6 220 3.6L (3604cc) | Inlet |
Product Specifications
| Axis 1 Length: | 43.78 in |
|---|---|
| Axis 2 Length: | 49.6 in |
| Branch Quantity: | 2 |
| Burst Pressure: | 75 PSI |
| Centerline Length: | 43.78 in |
| Clamps Included: | Yes |
| Color: | Black |
| Contains Spring: | No |
| Coolant Hose Heat Shield Included: | Yes |
| Coolant Hose Type: | Branched |
| End 1 Attachment Type: | Quick Connect |
| End 1 Inside Diameter: | 0.85 in |
| End 1 Type: | Quick Connect |
| End 2 Attachment Type: | Quick Connect |
| End 2 Inside Diameter: | 0.85 in |
| End 2 Type: | Quick Connect |
| End 3 Attachment Type: | Quick Connect |
| End 3 Inside Diameter: | 0.41 in |
| Grade Type: | Regular |
| Heat Shield Included: | No |
| Hose Attachment End 1: | Flared Tube |
| Hose Attachment End 2: | Flared Tube |
| Hose End (1) Outside Diameter (In): | 0.9 in |
| Hose End (2) Outside Diameter (In): | 0.89 in |
| Hose End (3) Outside Diameter (In): | 0.43 in |
| Hose Material: | EPDM |
| Hose Outside Diameter: | 0.9 |
| Hose Overall Length (In): | 43.78 in |
| Hose Quantity: | 2 |
| Hose Shape: | Molded Assembly |
| Inside Diameter: | 0.6 in |
| Length: | 43.78 in |
| Material: | EPDM |
| Maximum Bend Angle: | 85 deg |
| Maximum Working Pressure: | 100 PSI |
| Modular: | No |
| Modular Components Included: | Quick Disconnect; Clamp |
| Molded: | Yes |
| Mounting Bracket Included: | No |
| Outside Diameter: | 0.1 in |
| Package Contents: | 1 Heater Hose Assembly |
| Package Quantity: | 1 |
| Packaging Type: | Bag |
| Protective Sleeve Attached: | Yes |
| Protective Sleeve Included: | No |
| Quick Connect Fitting Quantity: | 3 |
| Thermostatically Controlled: | No |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 55038163AD | CHRYSLER |
| 55038163AE | CHRYSLER |
| 55038163AF | CHRYSLER |
| 55038163AG | CHRYSLER |
| 55038163AH | CHRYSLER |
| 55038163AI | CHRYSLER |
