Product Description

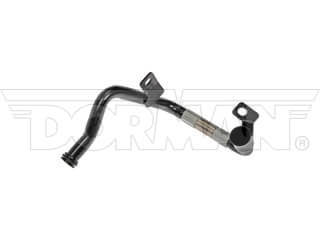

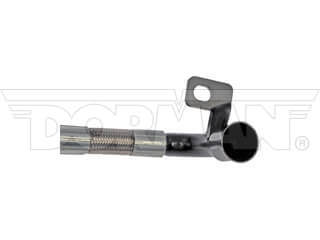

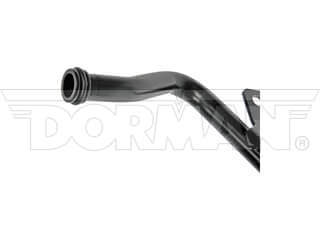

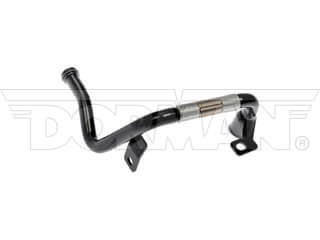

This engine coolant pipe is designed to match the fit and function of the original pipe on specified vehicles. It is engineered to help ensure leak-free coolant transfer when an original pipe has failed from heat or corrosion.
- Direct replacement - this engine coolant pipe is designed to match the fit and function of the original pipe on specified vehicles
- Ideal solution - engineered to help ensure leak-free coolant transfer when an original pipe has failed from heat or corrosion
- Durable construction - designed and manufactured to strict specifications for reliable performance
- Trustworthy quality - backed by a team of product experts in the United States and more than a century of automotive experience
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2017 | Ram | 2500 | L6 408 6.7L | Inlet | |
| 2017 | Ram | 3500 | L6 408 6.7L | Inlet | |
| 2017 | Ram | 4500 | L6 408 6.7L | Inlet | |
| 2017 | Ram | 5500 | L6 408 6.7L | Inlet | |
| 2016 | Ram | 2500 | L6 408 6.7L | Inlet | |
| 2016 | Ram | 3500 | L6 408 6.7L | Inlet | |
| 2016 | Ram | 4500 | L6 408 6.7L | Inlet | |
| 2016 | Ram | 5500 | L6 408 6.7L | Inlet | |
| 2015 | Ram | 2500 | L6 408 6.7L | Inlet | |
| 2015 | Ram | 3500 | L6 408 6.7L | Inlet | |
| 2015 | Ram | 4500 | L6 408 6.7L | Inlet | |
| 2015 | Ram | 5500 | L6 408 6.7L | Inlet | |
| 2014 | Ram | 2500 | L6 408 6.7L | Inlet | |
| 2014 | Ram | 3500 | L6 408 6.7L | Inlet | |
| 2014 | Ram | 4500 | L6 408 6.7L | Inlet | |
| 2014 | Ram | 5500 | L6 408 6.7L | Inlet | |
| 2013 | Dodge | Ram 4000 | L6 408 6.7L (6690cc) | Inlet | |
| 2013 | Ram | 2500 | L6 408 6.7L | Inlet | |
| 2013 | Ram | 3500 | L6 408 6.7L | Inlet | |
| 2013 | Ram | 4000 (Mexico) | L6 408 6.7L | Inlet | |
| 2013 | Ram | 4500 | L6 408 6.7L | Inlet | |
| 2013 | Ram | 5500 | L6 408 6.7L | Inlet | |
| 2012 | Dodge | Ram 4000 | L6 408 6.7L (6690cc) | Inlet | |
| 2012 | Ram | 2500 | L6 408 6.7L | Inlet | |
| 2012 | Ram | 3500 | L6 408 6.7L | Inlet | |
| 2012 | Ram | 4000 (Mexico) | L6 408 6.7L | Inlet | |
| 2012 | Ram | 4500 | L6 408 6.7L | Inlet | |
| 2012 | Ram | 5500 | L6 408 6.7L | Inlet | |
| 2011 | Dodge | Ram 4000 | L6 408 6.7L (6690cc) | Inlet | |
| 2011 | Ram | 2500 | L6 408 6.7L | Inlet | |
| 2011 | Ram | 3500 | L6 408 6.7L | Inlet | |
| 2011 | Ram | 4000 (Mexico) | L6 408 6.7L | Inlet | |
| 2011 | Ram | 4500 | L6 408 6.7L | Inlet | |
| 2011 | Ram | 5500 | L6 408 6.7L | Inlet | |
| 2010 | Dodge | Ram 2500 | L6 408 6.7L | Inlet | |
| 2010 | Dodge | Ram 3500 | L6 408 6.7L | Inlet | |
| 2010 | Dodge | Ram 4000 (Mexico) | L6 408 6.7L | Inlet | |
| 2010 | Dodge | Ram 4500 | L6 408 6.7L | Inlet | |
| 2010 | Dodge | Ram 5500 | L6 408 6.7L | Inlet | |
| 2009 | Dodge | Ram 2500 | L6 408 6.7L | Inlet | |
| 2009 | Dodge | Ram 3500 | L6 408 6.7L | Inlet | |
| 2009 | Dodge | Ram 4500 | L6 408 6.7L | Inlet | |
| 2009 | Dodge | Ram 5500 | L6 408 6.7L | Inlet |
Product Specifications
| Color: | Black |
|---|---|
| Coolant Hose Heat Shield Included: | No Heat Shield Required |
| Coolant Hose Protective Sleeve Included: | No Protective Sleeve Required |
| Coolant Hose Type: | Dual I.D. (Inside Diameter) |
| End 1 Inside Diameter: | 0.97 in |
| End 1 Type: | Flange |
| End 2 Inside Diameter: | 0.65 in |
| End 2 Type: | Pipe |
| Gasket Or Seal Required: | Yes |
| Hose End (1) Outside Diameter (In): | 1.07 in |
| Hose End (2) Outside Diameter (In): | 0.93 in |
| Length: | 12 in |
| Material: | Steel |
| Maximum Working Pressure (psi): | 100 PSI |
| Mount Bracket Hole Diameter: | 0.43 in |
| Mount Bracket Quantity: | 2 |
| Mounting Bracket Included: | Yes |
| Package Contents: | 1 Coolant Tube |
| Package Quantity: | 1 |
| Packaging Type: | Bag |
| Shape: | Irregular |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 68213517AA | CHRYSLER |
