Product Description

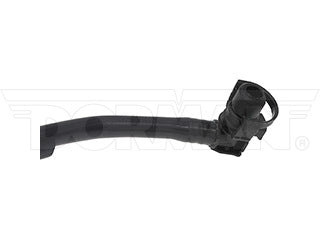

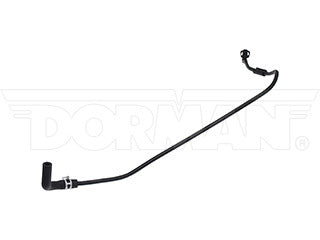

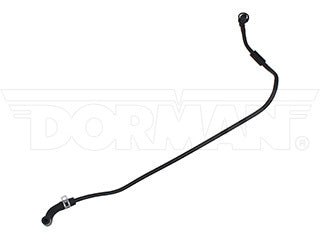

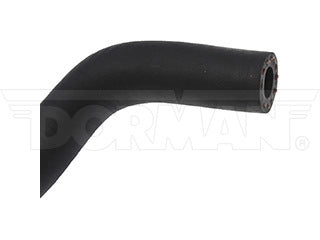

This engine coolant pipe is designed to match the fit and function of the original pipe on specified vehicles. It is engineered to help ensure leak-free coolant transfer when an original pipe has failed from heat or corrosion.
- Direct replacement - this engine coolant pipe is designed to match the fit and function of the original pipe on specified vehicles
- Ideal solution - engineered to help ensure leak-free coolant transfer when an original pipe has failed from heat or corrosion
- Durable construction - designed and manufactured to strict specifications for reliable performance
- Trustworthy quality - backed by a team of product experts in the United States and more than a century of automotive experience
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2011 | Chevrolet | Aveo | L4 98 1.6L (1598cc); Engine Desg. LXV | Inlet | Throttle Body |
| 2011 | Chevrolet | Aveo5 | L4 98 1.6L (1598cc); Engine Desg. LXV | Inlet | Throttle Body |
| 2010 | Chevrolet | Aveo | L4 98 1.6L (1598cc); Engine Desg. LXV | Inlet | Throttle Body |
| 2010 | Chevrolet | Aveo5 | L4 98 1.6L (1598cc); Engine Desg. LXV | Inlet | Throttle Body |
| 2010 | Pontiac | G3 | L4 98 1.6L (1598cc); Engine Desg. LXV | Inlet | Throttle Body |
| 2009 | Chevrolet | Aveo | L4 98 1.6L (1598cc); Engine Desg. LXV | Inlet | Throttle Body |
| 2009 | Chevrolet | Aveo5 | L4 98 1.6L (1598cc); Engine Desg. LXV | Inlet | Throttle Body |
| 2009 | Pontiac | G3 | L4 98 1.6L (1598cc); Engine Desg. LXV | Inlet | Throttle Body |
| 2009 | Pontiac | G3 Wave | L4 98 1.6L (1598cc); Engine Desg. LXV | Inlet | Throttle Body |
Product Specifications
| Color: | Black; Natural |
|---|---|
| Coolant Hose Heat Shield Included: | No |
| Coolant Hose Protective Sleeve Included: | No |
| Coolant Hose Type: | Single I.D. |
| End 1 Inside Diameter: | 8 mm |
| End 1 Type: | Hose |
| End 2 Inside Diameter: | 4.3 mm |
| End 2 Type: | Quick Disconnect |
| Finish: | No Finish |
| Gasket Or Seal Required: | No |
| Hose End (1) Outside Diameter (In): | 15 mm |
| Hose End (2) Outside Diameter (In): | 8 mm |
| Inside Diameter: | 4 mm |
| Length: | 780 mm |
| Material: | Plastic; EPDM; Metal |
| Maximum Working Pressure (psi): | 100 PSI |
| Mounting Bracket Included: | No |
| Outside Diameter: | 8 mm |
| Package Contents: | 1 Coolant Pipe |
| Package Quantity: | 1 |
| Packaging Type: | Bag |
| Shape: | Molded Assembly |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 25192904 | GENERAL MOTORS |
