Dorman 626-681 Engine Heater Hose Assembly 13-16 Ford Escape CV6Z18472S
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$56.79
Select your vehicle at the top of the page to check fitment.
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.

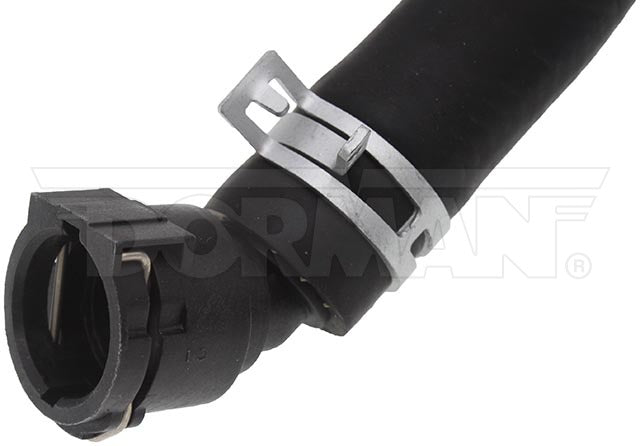

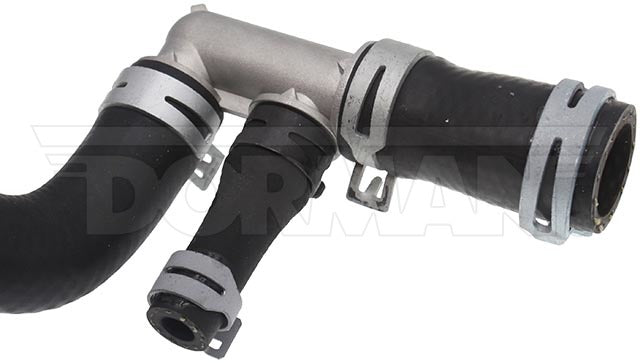

Original equipment HVAC heater hose assemblies often fail due to cracks in the plastic connectors. This Dorman OE FIX replacement features upgraded aluminum connectors to prevent similar failures in the future.
- Upgraded solution - this replacement engine heater hose assembly match original fit and function and features aluminum connectors for added durability
- Application specific - designed to match the original fit and function of heater hoses on certain vehicle years, makes and models
- Complete replacement - hoses come with the necessary clamps for easier installation
- Quality engineering - designed in the United States and backed by decades of automotive aftermarket experience
Vehicle Fitment
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2013-2016 | Ford | Escape | Inlet | From Heater Valve; 1.6L L4; From Engine |
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | 626-681 |
| UPC | 889245562913 |
| Material | EPDM; Metal; Plastic |
| Color | Black; Gray |
| Clamps Included | Yes |
| End 1 Inside Diameter | 21.5 mm |
| End 2 Inside Diameter | 19.25 mm |
| Contains Spring | No |
| Centerline Length | 815 mm |
| End 3 Inside Diameter | 24.2 mm |
| Hose Shape | Molded Assembly |
| Grade Type | Standard Replacement |
| Axis 1 Length | 480 mm |
| Axis 2 Length | 275 mm |
| Package Quantity | 3 |
| Connector Quantity | 2 |
| Coolant Hose Heat Shield Included | No |
| Coolant Hose Type | Standard Replacement |
| End 1 Attachment Type | Quick Disconnect |
| End 1 Type | Flanged |
| End 2 Attachment Type | Quick Disconnect |
| End 2 Type | Flanged |
| End 3 Attachment Type | Clamp |
| Heat Shield Included | No |
| Hose Attachment End 1 | Flanged |
| Hose Attachment End 2 | Flanged |
| Hose End (1) Outside Diameter (In) | 1.12 in |
| Hose End (2) Outside Diameter (In) | 1.2 in |
| Hose End (3) Outside Diameter (In) | 1.19 in |
| Hose Material | Rubber |
| Hose Outside Diameter | 0.94 in |
| Hose Overall Length (In) | 29 in |
| Inside Diameter | 0.75 in |
| Length | 29 in |
| Modular | No |
| Mounting Bracket Included | No |
| Outside Diameter | 0.94 in |
| Package Contents | 1 Heater Hose Assembly |
| Protective Sleeve Included | No |
| Thermostatically Controlled | No |
| Country of Origin | China |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| CV6Z18472S | Ford (OE) |
|---|---|
| CV6Z18472AB | Ford (OE) |
