Dorman 626-686 HVAC Heater Hose Assembly
Regular price
$159.99
Couldn't load pickup availability
Product Description

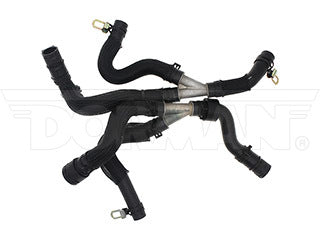

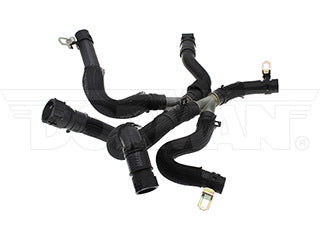

Original equipment HVAC heater hose assemblies often fail due to cracks in the plastic Y-connector. This Dorman OE FIX replacement features an upgraded aluminum Y-connector to prevent similar failures in the future.
- Upgraded material - this replacement engine heater hose assembly features aluminum Y-connectors for added durability
- Application specific - designed to match the original fit and function of heater hoses on certain vehicle years, makes and models

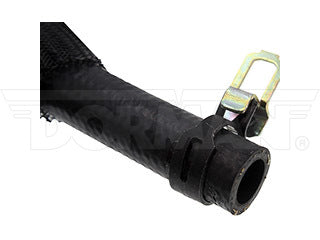

- Complete replacement - hoses come with necessary clamps for easy installation
- Quality engineering - designed in the United States and backed by decades of automotive aftermarket experience
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2020 | Chrysler | Pacifica | Inlet and Outlet | w/Auxiliary Heater | |
| 2020 | Chrysler | Voyager | Inlet and Outlet | w/Auxiliary Heater | |
| 2019 | Chrysler | Pacifica | Inlet and Outlet | w/Auxiliary Heater | |
| 2018 | Chrysler | Pacifica | Inlet and Outlet | w/Auxiliary Heater | |
| 2017 | Chrysler | Pacifica | Inlet and Outlet | w/Auxiliary Heater |
Product Specifications
| Axis 1 Length: | 447 mm |
|---|---|
| Axis 2 Length: | 270 mm |
| Axis 3 Length: | 473 mm |
| Axis 4 Length: | 268 mm |
| Branch Quantity: | 4 |
| Burst Pressure: | 75 PSI |
| Centerline Length: | 1458 mm |
| Clamps Included: | Yes |
| Color: | Black; Natural |
| Contains Spring: | No |
| Coolant Hose Heat Shield Included: | No |
| Coolant Hose Type: | Branched |
| End 1 Attachment Type: | Hose |
| End 1 Inside Diameter: | 18.5 mm |

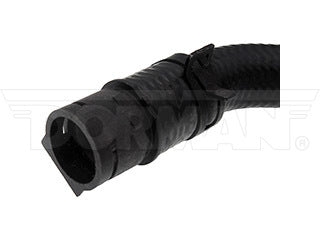

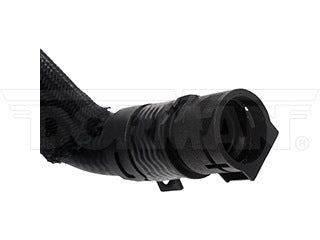

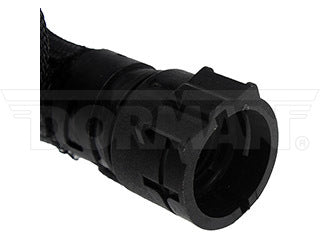

| End 2 Attachment Type: | Quick Disconnect |
| End 2 Inside Diameter: | 22.2 mm |
| End 3 Attachment Type: | Quick Disconnect |
| End 3 Inside Diameter: | 22.2 mm |
| End 4 Attachment Type: | Quick Disconnect |
| End 4 Inside Diameter: | 28.5 mm |
| Grade Type: | Regular |
| Hose End (1) Outside Diameter (In): | 26 mm |
| Hose End (2) Outside Diameter (In): | 27.2 mm |
| Hose End (3) Outside Diameter (In): | 27.2 mm |
| Hose End (4) Inside Diameter (In): | 28.5 mm |
| Hose End (4) Outside Diameter (In): | 35.75 mm |
| Hose Shape: | Molded Assembly |
| Length: | 447 mm |
| Material: | EPDM; Metal |
| Maximum Bend Angle: | 120 Deg |
| Maximum Working Pressure: | 100 PSI |
| Package Contents: | Heater Hose Assembly |
| Package Quantity: | 1 |
| Packaging Type: | Bag |
| Protective Sleeve Attached: | No |
| Thermostatically Controlled: | No |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 68217334AB | CHRYSLER |
| 68217334AC | CHRYSLER |
