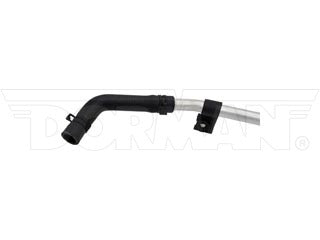

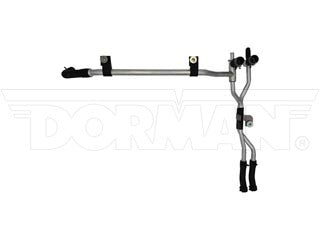

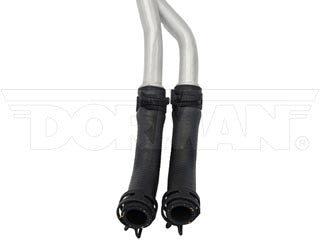

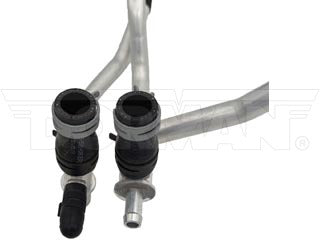

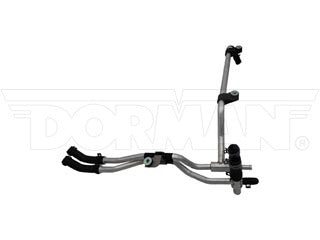

Dorman 626-688 HVAC Heater Hose Assembly
Regular price
$165.95
Couldn't load pickup availability
Product Description
Original equipment HVAC heater hose assemblies often fail due to cracks in the plastic T-connector. This Dorman OE FIX replacement features an upgraded aluminum T-connector to prevent similar failures in the future.
- Upgraded material - this replacement engine heater hose assembly features an aluminum T-connector for added durability
- Application specific - designed to match the original fit and function of heater hoses on certain vehicle years, makes and models
- Complete replacement - hoses come with necessary clamps for easy installation
- Quality engineering - designed in the United States and backed by decades of automotive aftermarket experience
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2012 | Nissan | Pathfinder | V6 4.0L (3954cc) | Inlet and Outlet | w/Rear HVAC; Does Not Include Auxiliary Pump |
| 2011 | Nissan | Pathfinder | V6 4.0L (3954cc) | Inlet and Outlet | w/Rear HVAC; Does Not Include Auxiliary Pump |
| 2010 | Nissan | Pathfinder | V6 4.0L (3954cc) | Inlet and Outlet | w/Rear HVAC; Does Not Include Auxiliary Pump |
| 2009 | Nissan | Pathfinder | V6 4.0L (3954cc) | Inlet and Outlet | w/Rear HVAC; Does Not Include Auxiliary Pump |
| 2008 | Nissan | Pathfinder | V6 4.0L (3954cc) | Inlet and Outlet | w/Rear HVAC; Does Not Include Auxiliary Pump |
| 2007 | Nissan | Pathfinder | V6 4.0L (3954cc) | Inlet and Outlet | w/Rear HVAC; Does Not Include Auxiliary Pump |
| 2006 | Nissan | Pathfinder | V6 4.0L (3954cc) | Inlet and Outlet | w/Rear HVAC; Does Not Include Auxiliary Pump |
| 2005 | Nissan | Pathfinder | V6 4.0L (3954cc) | Inlet and Outlet | w/Rear HVAC; Does Not Include Auxiliary Pump |
Product Specifications
| Axis 1 Length: | 632 mm |
|---|---|
| Axis 2 Length: | 503 mm |
| Branch Quantity: | 1 |
| Burst Pressure: | 100 PSI |
| Centerline Length: | 1108.11 mm |
| Clamps Included: | No |
| Color: | Black; Silver |
| Contains Spring: | No |
| Coolant Hose Heat Shield Included: | No |
| Coolant Hose Type: | Branched |
| End 1 Attachment Type: | Quick Connect |
| End 1 Inside Diameter: | 19 mm |
| End 2 Attachment Type: | Quick Connect |
| End 2 Inside Diameter: | 19 mm |
| End 3 Attachment Type: | Quick Connect |
| End 3 Inside Diameter: | 19 mm |
| Grade Type: | Regular |
| Hose End (1) Outside Diameter (In): | 23 mm |
| Hose End (2) Outside Diameter (In): | 23 mm |
| Hose End (3) Outside Diameter (In): | 23 mm |
| Hose End (4) Inside Diameter (In): | 19 mm |
| Hose Shape: | Molded Assembly |
| Length: | 1108.11 mm |
| Material: | EPDM; Metal |
| Maximum Bend Angle: | 90 deg |
| Maximum Working Pressure: | 100 PSI |
| Package Contents: | 1 Heater Hose Assembly |
| Package Quantity: | 1 |
| Packaging Type: | Bag |
| Protective Sleeve Attached: | No |
| Thermostatically Controlled: | No |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 92408ZL90B | NISSAN |
| NON-DIRECT OE CROSS | |
|---|---|
| 92412-EA500 | NISSAN |
