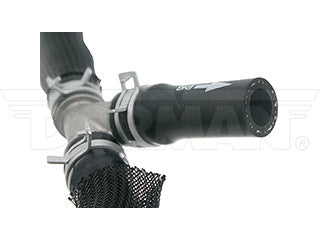

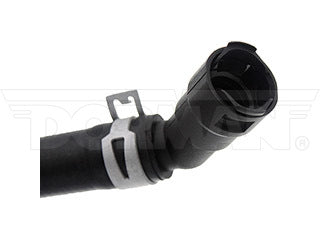

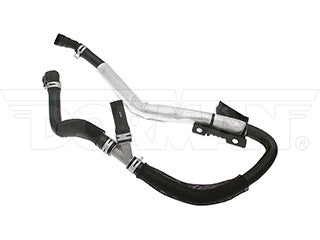

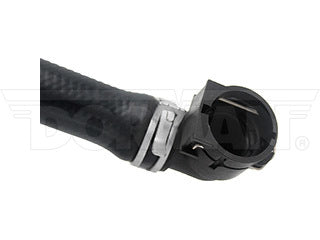

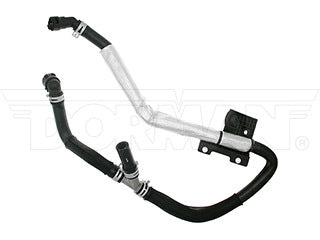

Dorman 626-690 HVAC Heater Hose Assembly
Regular price
$80.84
Couldn't load pickup availability
Product Description
Original equipment HVAC heater hose assemblies often fail due to cracks in the plastic Y-connector. This Dorman OE FIX replacement features an upgraded aluminum Y-connector to prevent similar failures in the future.
- Upgraded material - this replacement engine heater hose assembly features an aluminum Y-connector for added durability
- Application specific - designed to match the original fit and function of heater hoses on certain vehicle years, makes and models
- Complete replacement - includes necessary clamps for easy installation
- Quality engineering - designed in the United States and backed by decades of automotive aftermarket experience
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2017 | Ford | F-150 | Turbocharged; V6 213 3.5L (3496cc) | Outlet | |
| 2016 | Ford | F-150 | Turbocharged; V6 213 3.5L (3496cc) | Outlet | |
| 2015 | Ford | F-150 | Turbocharged; V6 213 3.5L (3496cc) | Outlet |
Product Specifications
| Axis 1 Length: | 40.1 in |
|---|---|
| Axis 2 Length: | 12.9 in |
| Axis 3 Length: | 4.8 in |
| Branch Quantity: | 3 |
| Burst Pressure: | 75 PSI |
| Centerline Length: | 54.6 in |
| Clamps Included: | Yes |
| Color: | Black; Silver |
| Contains Spring: | No |
| Coolant Hose Heat Shield Included: | Yes |
| Coolant Hose Type: | Branched |
| End 1 Attachment Type: | Quick Connect |
| End 1 Inside Diameter: | 0.73 in |
| End 2 Attachment Type: | Quick Connect |
| End 2 Inside Diameter: | 11 in |
| End 3 Attachment Type: | Hose |
| End 3 Inside Diameter: | 11 in |
| Grade Type: | Regular |
| Hose End (1) Outside Diameter (In): | 1.04 in |
| Hose End (2) Outside Diameter (In): | 34 in |
| Hose End (3) Outside Diameter (In): | 34 in |
| Hose Shape: | Molded Assembly |
| Length: | 59.4 in |
| Material: | EPDM |
| Maximum Bend Angle: | 90 deg |
| Maximum Working Pressure: | 50 PSI |
| Package Contents: | Heater Hose Assembly |
| Package Quantity: | 1 |
| Packaging Type: | Bag |
| Protective Sleeve Attached: | Yes |
| Thermostatically Controlled: | No |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| FL3Z18472F | FORD MOTOR COMPANY |
