Dorman 626-693 HVAC Heater Hose Assembly
Regular price
$45.86
Couldn't load pickup availability
Product Description

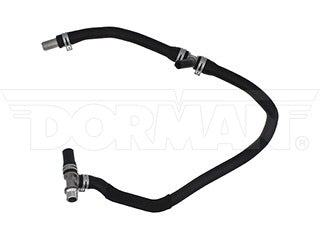

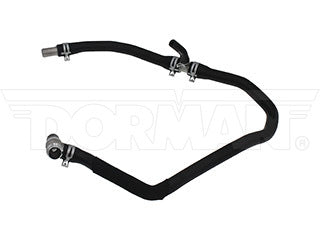

The factory heater hose on many vehicles has plastic connectors that are prone to cracking and leaking over time. Why replace it with one that can simply fail the same way again? This Dorman OE FIX heater hose has three upgraded, aluminum connectors to help ensure better durability than the OEM part.

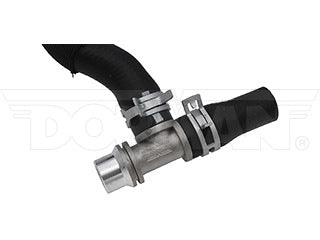

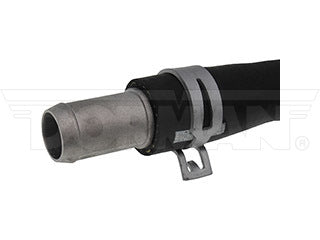

- Upgraded solution - this Dorman OE FIX heater hose features three aluminum connectors, increasing durability over the factory heater hose that originally came on the vehicle
- Durable construction - this part is specifically designed to withstand extreme temperature changes and resist cracking and leaking compared to the original
- Precise fit - manufactured to strict tolerances to ensure it mirrors the fit and function of the original part for a straightforward installation
- Industry-leading design - professionally engineered by the aftermarket leader in complex heater hose assemblies
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2013 | Ford | Transit Connect | L4 122 2.0L (1999cc) | Inlet | Engine to Junction |
| 2012 | Ford | Transit Connect | L4 122 2.0L (1999cc) | Inlet | Engine to Junction |
| 2011 | Ford | Transit Connect | L4 122 2.0L (1999cc) | Inlet | Engine to Junction |
| 2010 | Ford | Transit Connect | L4 122 2.0L (1999cc) | Inlet | Engine to Junction |
Product Specifications
| Axis 1 Length: | 1748.26 mm |
|---|---|
| Axis 2 Length: | 187.7 mm |
| Axis 3 Length: | 111.3 mm |
| Branch Quantity: | 3 |
| Burst Pressure: | 75 PSI |
| Centerline Length: | 2047.26 mm |
| Clamps Included: | Yes |
| Color: | Black |
| Contains Spring: | No |
| Coolant Hose Heat Shield Included: | No |
| Coolant Hose Type: | Branched |
| End 1 Attachment Type: | Hose |
| End 1 Inside Diameter: | 15 mm |
| End 2 Attachment Type: | Hose |
| End 2 Inside Diameter: | 8 mm |
| End 3 Attachment Type: | Hose |
| End 3 Inside Diameter: | 15 mm |
| End 4 Attachment Type: | Tube |
| End 4 Inside Diameter: | 20.6 mm |
| Grade Type: | Regular |
| Hose End (1) Outside Diameter (In): | 19.8 mm |
| Hose End (2) Outside Diameter (In): | 16 mm |
| Hose End (3) Outside Diameter (In): | 23 mm |
| Hose End (4) Inside Diameter (In): | 20.6 mm |
| Hose End (4) Outside Diameter (In): | 27.8 mm |
| Hose Shape: | Molded Assembly |
| Length: | 1748.26 mm |

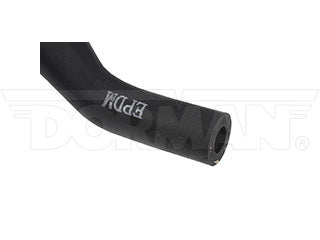

| Material: | EPDM; Plastic; Metal |
| Maximum Bend Angle: | 120 Deg |
| Maximum Working Pressure: | 100 PSI |
| Package Contents: | Heater Hose Assembly |
| Package Quantity: | 1 |
| Packaging Type: | Bag |
| Protective Sleeve Attached: | Yes |
| Thermostatically Controlled: | No |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 9T1Z18472C | FORD MOTOR COMPANY |
