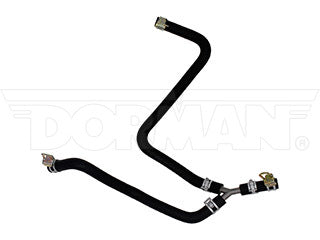

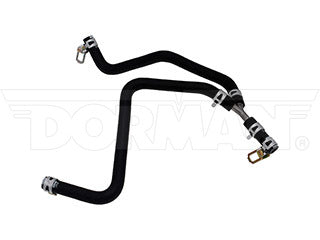

Dorman 626-697 Engine Coolant Overflow Hose
Regular price
$42.40
Couldn't load pickup availability
Product Description
Original equipment HVAC heater hose assemblies often fail due to cracks in the plastic Y-connector. This Dorman OE FIX replacement features an upgraded aluminum Y-connector to prevent similar failures in the future.
- Upgraded material - this replacement engine heater hose assembly features aluminum Y-connectors for added durability
- Application specific - designed to match the original fit and function of heater hoses on certain vehicle years, makes and models
- Complete replacement - hoses come with necessary clamps for easy installation
- Quality engineering - designed in the United States and backed by decades of automotive aftermarket experience
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2023 | Chevrolet | Camaro | L4 122 2.0L (1998cc) | Upper | |
| 2022 | Chevrolet | Camaro | L4 122 2.0L (1998cc) | Upper | |
| 2021 | Chevrolet | Camaro | L4 122 2.0L (1998cc) | Upper | |
| 2020 | Chevrolet | Camaro | L4 122 2.0L (1998cc) | Upper | |
| 2019 | Cadillac | ATS | L4 122 2.0L (1998cc) | Upper | |
| 2019 | Cadillac | CTS | L4 122 2.0L (1998cc) | Upper | |
| 2019 | Chevrolet | Camaro | L4 122 2.0L (1998cc) | Upper | |
| 2018 | Cadillac | ATS | L4 122 2.0L (1998cc) | Upper | |
| 2018 | Cadillac | CTS | L4 122 2.0L (1998cc) | Upper | |
| 2018 | Chevrolet | Camaro | L4 122 2.0L (1998cc) | Upper | |
| 2017 | Cadillac | ATS | L4 122 2.0L (1998cc) | Upper | |
| 2017 | Cadillac | CTS | L4 122 2.0L (1998cc) | Upper | |
| 2017 | Chevrolet | Camaro | L4 122 2.0L (1998cc) | Upper | |
| 2016 | Cadillac | ATS | L4 122 2.0L (1998cc) | Upper | |
| 2016 | Cadillac | CTS | L4 122 2.0L (1998cc) | Upper | |
| 2016 | Chevrolet | Camaro | L4 122 2.0L (1998cc) | Upper | |
| 2015 | Cadillac | ATS | L4 122 2.0L (1998cc) | Upper | |
| 2015 | Cadillac | CTS | L4 122 2.0L (1998cc) | Upper | |
| 2014 | Cadillac | ATS | L4 122 2.0L (1998cc) | Upper | |
| 2014 | Cadillac | CTS | L4 122 2.0L (1998cc) | Upper | |
| 2013 | Cadillac | ATS | L4 122 2.0L (1998cc) | Upper |
Product Specifications
| Branch Quantity: | 2 |
|---|---|
| Clamps Included: | Yes |
| Color: | Black; Natural |
| End 1 Attachment Type: | Hose |
| End 1 Inside Diameter: | 7.5 mm |
| End 1 Outside Diameter: | 14.5 mm |
| End 2 Attachment Type: | Hose |
| End 2 Inside Diameter: | 7.5 mm |
| End 2 Outside Diameter: | 14.5 mm |
| End 3 Attachment Type: | Hose |
| End 3 Inside Diameter: | 7.5 mm |
| End 3 Outside Diameter: | 14.5 mm |
| Grade Type: | Regular |
| Heat Shield Included: | No |
| Hose Shape: | Molded Assembly |
| Inside Diameter: | 7.5 mm |
| Length: | 654.5 mm |
| Material: | EPDM; Metal |
| Maximum Working Pressure: | 100 PSI |
| Outside Diameter: | 14.5 mm |
| Package Contents: | 1 Heater Hose Assembly |
| Package Quantity: | 1 |
| Packaging Type: | Bag |
| Protective Sleeve Included: | No |
| Selling Package Quantity UOM: | Piece |
| Shape: | Molded Assembly |
| Thermostatically Controlled: | No |
| Thickness: | 14.5 mm |
| Type: | Branched |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 22908202 | GENERAL MOTORS |
| 84727330 | GENERAL MOTORS |
| 84890763 | GENERAL MOTORS |
