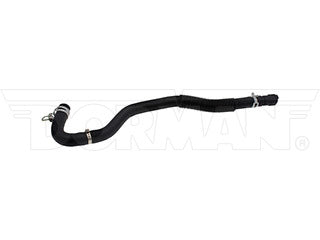

Dorman 626-708 HVAC Heater Hose Assembly
Regular price
$0.00
Couldn't load pickup availability
Product Description
This replacement HVAC heater hose assembly is engineered to match the fit and durability of the stock heater hose assembly on specified vehicles. It is designed to withstand extreme temperature changes to extend service life.
- Ideal replacement - this HVAC heater hose assembly directly replaces the original heater hose on specified vehicle years, makes and models
- Durable construction - this part is specifically designed to withstand extreme temperature changes and resist cracking and leaking
- Cost-effective and reliable - offers original manufacturer quality at lower cost than getting replacement at dealer
- Industry-leading design - professionally engineered by the aftermarket leader in heater hose assemblies
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2008 | Ford | F-150 | V8 330 5.4L; 24 Valve | Inlet | |
| 2008 | Lincoln | Mark LT | V8 330 5.4L; 24 Valve | Inlet | |
| 2007 | Ford | F-150 | V8 330 5.4L; 24 Valve | Inlet | |
| 2007 | Lincoln | Mark LT | V8 330 5.4L; 24 Valve | Inlet | |
| 2006 | Ford | F-150 | V8 330 5.4L; 24 Valve | Inlet | |
| 2006 | Lincoln | Mark LT | V8 330 5.4L; 24 Valve | Inlet | |
| 2005 | Ford | F-150 | V8 330 5.4L; 24 Valve | Inlet | |
| 2004 | Ford | F-150 | V8 330 5.4L; 24 Valve | Inlet |
Product Specifications
| Axis 1 Length: | 1536.81 mm |
|---|---|
| Branch Quantity: | 1 |
| Burst Pressure: | 75 PSI |
| Centerline Length: | 1536.81 mm |
| Clamps Included: | Yes |
| Color: | Black |
| Contains Spring: | No |
| Coolant Hose Heat Shield Included: | No |
| Coolant Hose Type: | Single I.D. |
| End 1 Attachment Type: | Hose |
| End 1 Inside Diameter: | 18.5 mm |
| End 1 Type: | Hose |
| End 2 Attachment Type: | Quick Disconnect |
| End 2 Inside Diameter: | 21.3 mm |
| End 2 Type: | Quick Disconnect |
| Grade Type: | Regular |
| Heat Shield Included: | No |
| Hose Attachment End 1: | Hose |
| Hose Attachment End 2: | Quick Disconnect |
| Hose End (1) Outside Diameter (In): | 26.5 mm |
| Hose End (2) Outside Diameter (In): | 27.4 mm |
| Hose Material: | EPDM; Metal; Plastic |
| Hose Outside Diameter: | 26.5 |
| Hose Overall Length (In): | 1536.81 mm |
| Hose Quantity: | 1 |
| Hose Shape: | Molded Assembly |
| Inside Diameter: | 18.5 mm |
| Length: | 1536.81 mm |
| Material: | EPDM; Metal; Plastic |
| Maximum Bend Angle: | 135 Deg |
| Maximum Working Pressure: | 100 PSI |
| Modular: | Yes |
| Modular Components Included: | Female Quick Connect |
| Molded: | Yes |
| Mounting Bracket Included: | No |
| Outside Diameter: | 26.5 mm |
| Package Contents: | 1 Heater Hose Assembly |
| Package Quantity: | 1 |
| Packaging Type: | Bag |
| Protective Sleeve Attached: | Yes |
| Protective Sleeve Included: | Yes |
| Quick Connect Fitting Quantity: | 1 |
| Thermostatically Controlled: | No |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 5L3Z18472E | FORD MOTOR COMPANY |
