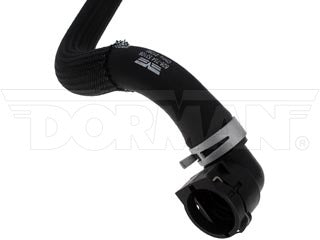

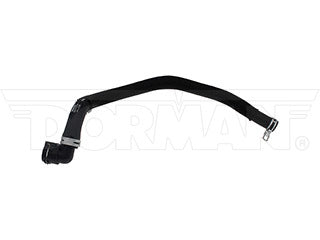

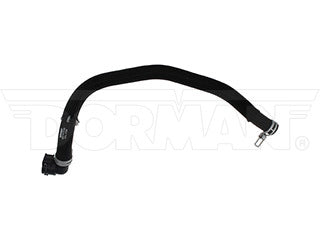

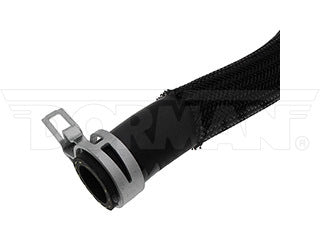

Dorman 626-754 HVAC Heater Hose Assembly
Regular price
$37.44
Couldn't load pickup availability
Product Description
This replacement HVAC heater hose assembly is engineered to match the fit and durability of the stock heater hose assembly on specified vehicles. It is designed to withstand extreme temperature changes to extend service life.
- Ideal replacement - this HVAC heater hose assembly directly replaces the original heater hose on specified vehicle years, makes and models
- Durable construction - this part is specifically designed to withstand extreme temperature changes and resist cracking and leaking
- Cost-effective and reliable - offers original manufacturer quality at lower cost than getting replacement at dealer
- Industry-leading design - professionally engineered by the aftermarket leader in heater hose assemblies
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2019 | Chevrolet | Impala | L4 153 2.5L (2457cc) | Inlet | |
| 2018 | Chevrolet | Impala | L4 153 2.5L (2457cc) | Inlet | |
| 2017 | Buick | Regal | L4 122 2.0L (1998cc) | Inlet | |
| 2017 | Chevrolet | Impala | L4 153 2.5L (2457cc) | Inlet | |
| 2016 | Buick | Regal | L4 122 2.0L (1998cc) | Inlet | |
| 2016 | Chevrolet | Impala | L4 153 2.5L (2457cc) | Inlet | |
| 2016 | Chevrolet | Malibu Limited | L4 153 2.5L (2457cc) | Inlet | |
| 2015 | Buick | Regal | L4 122 2.0L (1998cc) | Inlet | |
| 2015 | Chevrolet | Impala | L4 153 2.5L (2457cc) | Inlet | |
| 2015 | Chevrolet | Malibu | L4 122 2.0L (1998cc) | Inlet | |
| 2015 | Chevrolet | Malibu | L4 153 2.5L (2457cc) | Inlet | |
| 2014 | Buick | Regal | L4 122 2.0L (1998cc) | Inlet | |
| 2014 | Chevrolet | Impala | L4 153 2.5L (2457cc) | Inlet | |
| 2014 | Chevrolet | Malibu | L4 122 2.0L (1998cc) | Inlet | |
| 2014 | Chevrolet | Malibu | L4 153 2.5L (2457cc) | Inlet | |
| 2013 | Chevrolet | Malibu | L4 122 2.0L (1998cc) | Inlet | |
| 2013 | Chevrolet | Malibu | L4 153 2.5L (2457cc) | Inlet |
Product Specifications
| Axis 1 Length: | 14.63 in |
|---|---|
| Branch Quantity: | 1 |
| Burst Pressure: | 140 PSI |
| Centerline Length: | 14.63 in |
| Clamps Included: | Yes |
| Color: | Black |
| Contains Spring: | No |
| Coolant Hose Heat Shield Included: | No |
| Coolant Hose Type: | Single I.D. (Inside Diameter) |
| End 1 Attachment Type: | Quick Connect |
| End 1 Inside Diameter: | 1.02 in |
| End 1 Type: | Quick Disconnect |
| End 2 Attachment Type: | Hose |
| End 2 Inside Diameter: | 1.02 in |
| End 2 Type: | Hose |
| End 3 Inside Diameter: | 1.02 in |
| Grade Type: | Regular |
| Hose Attachment End 1: | Quick Disconnect |
| Hose Attachment End 2: | Hose |
| Hose End (1) Outside Diameter (In): | 1.14 in |
| Hose End (2) Outside Diameter (In): | 1.14 in |
| Hose Material: | EPDM |
| Hose Outside Diameter: | 1.14 in |
| Hose Overall Length (In): | 14.63 in |
| Hose Shape: | Molded Assembly |
| Inside Diameter: | 1.02 in |
| Length: | 14.63 in |
| Material: | EPDM |
| Maximum Bend Angle: | 90 deg |
| Maximum Working Pressure: | 140 PSI |
| Mounting Bracket Included: | No |
| Outside Diameter: | 1.14 in |
| Package Contents: | 1 Heater Hose Assembly |
| Package Quantity: | 1 |
| Packaging Type: | Bag |
| Protective Sleeve Attached: | No |
| Thermostatically Controlled: | No |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 23428275 | GENERAL MOTORS |
