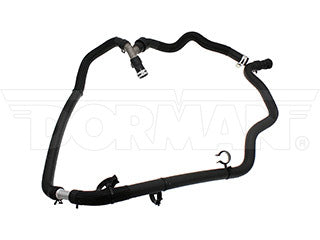

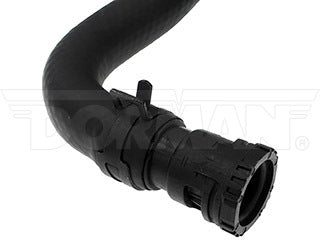

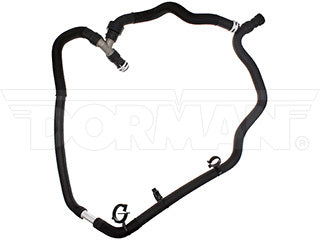

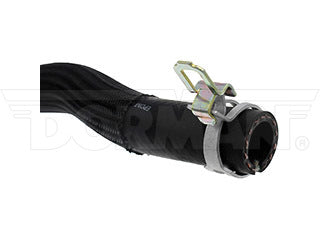

Dorman 626-768 HVAC Heater Hose Assembly
Regular price
$0.00
Couldn't load pickup availability
Product Description
Original equipment HVAC heater hose assemblies often fail due to cracks in the plastic connectors. This Dorman OE FIX replacement features upgraded aluminum connectors to prevent similar failures in the future.
- Upgraded material - this replacement engine heater hose assembly features aluminum connectors for added durability
- Application specific - designed to match the original fit and function of heater hoses on certain vehicle years, makes and models
- Complete replacement - hoses come with necessary clamps for easy installation
- Quality engineering - designed in the United States and backed by decades of automotive aftermarket experience
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2018 | Ford | Focus | Outlet | ||
| 2017 | Ford | Focus | Outlet | ||
| 2016 | Ford | Focus | Outlet | ||
| 2015 | Ford | Focus | Outlet | ||
| 2014 | Ford | Focus | Outlet | ||
| 2013 | Ford | Focus | Outlet |
Product Specifications
| Angle: | 95 deg |
|---|---|
| Arm Length: | 73.25 in |
| Axis 1 Length: | 73.25 in |
| Axis 2 Length: | 18 in |
| Bending Radius: | 95 deg |
| Branch Quantity: | 2 |
| Burst Pressure: | 75 PSI |
| Centerline Length: | 91.25 in |
| Clamps Included: | No |
| Color: | Black |
| Contains Spring: | No |
| Coolant Hose Heat Shield Included: | No |
| Coolant Hose Type: | Branched |
| End 1 Attachment Type: | Quick Connect |
| End 1 Inside Diameter: | 0.81 in |
| End 1 Type: | Quick Connect |
| End 2 Attachment Type: | Quick Connect |
| End 2 Inside Diameter: | 0.64 in |
| End 2 Type: | Quick Connect |
| End 3 Attachment Type: | Quick Connect |
| End 3 Inside Diameter: | 0.71 in |
| Grade Type: | Regular |
| Heat Shield Included: | No |
| Hose Attachment End 1: | Quick Disconnect |
| Hose Attachment End 2: | Clamp |
| Hose End (1) Outside Diameter (In): | 0.99 in |
| Hose End (2) Outside Diameter (In): | 1.04 in |
| Hose End (3) Outside Diameter (In): | 0.72 in |
| Hose Material: | Rubber |
| Hose Outside Diameter: | 1.02 in |
| Hose Overall Length (In): | 91.25 |
| Hose Quantity: | 1 |
| Hose Shape: | Molded Assembly |
| Inside Diameter: | 0.64 in |
| Length: | 91.25 |
| Material: | Rubber |
| Maximum Bend Angle: | 90 deg |
| Maximum Working Pressure: | 50 PSI |
| Modular: | Branch |
| Modular Components Included: | Branch |
| Molded: | Yes |
| Mounting Bracket Included: | No |
| Outside Diameter: | 1.02 in |
| Package Contents: | Heater Hose Assembly |
| Package Quantity: | 1 |
| Packaging Type: | Bag |
| Protective Sleeve Attached: | No |
| Protective Sleeve Included: | No |
| Quick Connect Fitting Quantity: | 3 |
| Thermostatically Controlled: | No |
| Working Pressure: | 50 PSI |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| BV6Z18472W | FORD MOTOR COMPANY |
