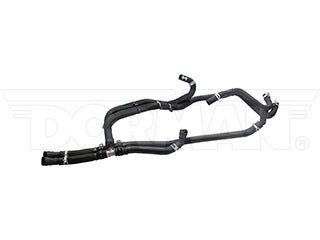

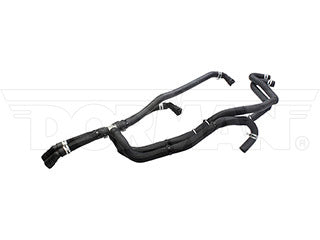

Dorman 626-802 HVAC Heater Hose Assembly
Regular price
$0.00
Couldn't load pickup availability
Product Description
Original equipment HVAC heater hose assemblies often fail due to cracks in the plastic Y-connector. This Dorman OE FIX replacement features an upgraded aluminum Y-connector to prevent similar failures in the future.
- Upgraded material - this replacement engine heater hose assembly features aluminum Y-connectors for added durability
- Application specific - designed to match the original fit and function of heater hoses on certain vehicle years, makes and models

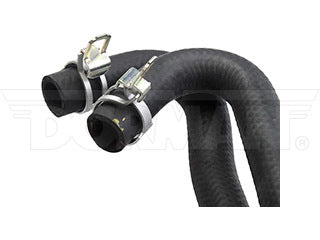

- Complete replacement - hoses come with necessary clamps for easy installation
- Quality engineering - designed in the United States and backed by decades of automotive aftermarket experience
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2017 | Ford | F-150 | V8 302 5.0L (4951cc) | Inlet and Outlet | |
| 2016 | Ford | F-150 | V8 302 5.0L (4951cc) | Inlet and Outlet | |
| 2015 | Ford | F-150 | V8 302 5.0L (4951cc) | Inlet and Outlet |
Product Specifications
| Axis 1 Length: | 923 mm |
|---|---|
| Axis 2 Length: | 710 mm |
| Axis 3 Length: | 562 mm |
| Axis 4 Length: | 1060 mm |
| Branch Quantity: | 5 |
| Burst Pressure: | 75 PSI |
| Centerline Length: | 3720 mm |
| Clamps Included: | No |
| Color: | Black |
| Contains Spring: | No |
| Coolant Hose Heat Shield Included: | No |
| Coolant Hose Type: | Branched |

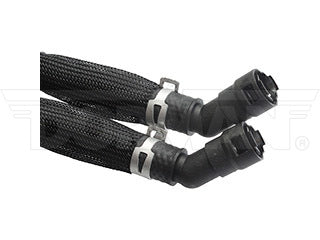

| End 1 Attachment Type: | Quick Connect |
| End 1 Inside Diameter: | 25.3 mm |
| End 1 Type: | Quick Disconnect |
| End 2 Attachment Type: | Hose |
| End 2 Inside Diameter: | 18.3 mm |
| End 2 Type: | Hose |
| End 3 Attachment Type: | Clamp |
| End 3 Inside Diameter: | 18.3 mm |
| End 4 Attachment Type: | Quick Disconnect |
| End 4 Inside Diameter: | 25.3 mm |
| Grade Type: | Regular |
| Heat Shield Included: | No |
| Hose Attachment End 1: | Flared Tube |
| Hose Attachment End 2: | Flared Tube |
| Hose End (1) Outside Diameter (In): | 30.3 mm |
| Hose End (2) Outside Diameter (In): | 26.5 mm |
| Hose End (3) Outside Diameter (In): | 26.5 mm |
| Hose End (4) Inside Diameter (In): | 25.3 mm |
| Hose End (4) Outside Diameter (In): | 30.3 mm |
| Hose Material: | EPDM; Plastic |
| Hose Outside Diameter: | 26.5 |
| Hose Overall Length (In): | 1110 mm |
| Hose Quantity: | 7 |
| Hose Shape: | Molded Assembly |
| Inside Diameter: | 18.3 mm |
| Length: | 1110 mm |
| Material: | EPDM; Plastic |
| Maximum Bend Angle: | 90 deg |
| Maximum Working Pressure: | 100 PSI |
| Molded: | Yes |
| Mounting Bracket Included: | No |
| Outside Diameter: | 26.5 mm |
| Package Contents: | Heater Hose Assembly |
| Package Quantity: | 1 |
| Packaging Type: | Bag |
| Protective Sleeve Attached: | Yes |
| Protective Sleeve Included: | Yes |
| Quick Connect Fitting Quantity: | 4 |
| Thermostatically Controlled: | No |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| FL3Z18472G | FORD MOTOR COMPANY |
| FL3Z18472H | FORD MOTOR COMPANY |
| FL3Z18472K | FORD MOTOR COMPANY |
