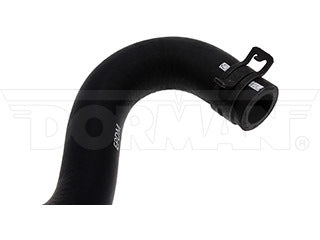

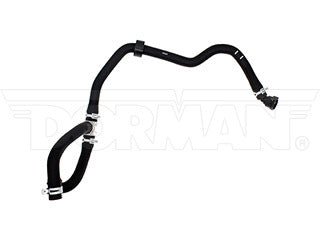

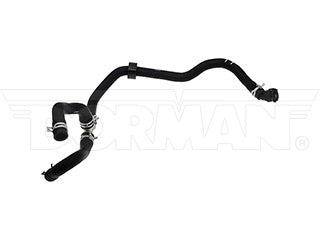

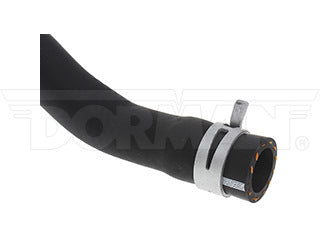

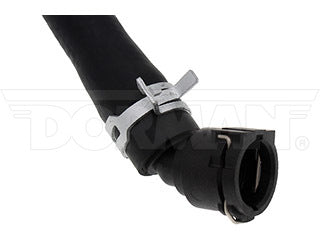

Dorman 626-804 HVAC Heater Hose Assembly
Regular price
$0.00
Couldn't load pickup availability
Product Description
Original equipment HVAC heater hose assemblies often fail due to cracks in the plastic T-connector. This Dorman OE FIX replacement features an upgraded aluminum T-connector to prevent similar failures in the future.
- Upgraded material - this replacement engine heater hose assembly features aluminum T-connectors for added durability
- Application specific - designed to match the original fit and function of heater hoses on certain vehicle years, makes and models
- Complete replacement - hoses come with necessary clamps for easy installation
- Quality engineering - designed in the United States and backed by decades of automotive aftermarket experience
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2016 | Ford | Escape | L4 122 2.0L (1999cc) | Inlet | To Heater Valve |
| 2015 | Ford | Escape | L4 122 2.0L (1999cc) | Inlet | To Heater Valve |
| 2014 | Ford | Escape | L4 122 2.0L (1999cc) | Inlet | To Heater Valve |
| 2013 | Ford | Escape | L4 122 2.0L (1999cc) | Inlet | To Heater Valve |
Product Specifications
| Angle: | 90 deg |
|---|---|
| Arm Length: | 40.5 in |
| Axis 1 Length: | 9.5 in |
| Axis 2 Length: | 31 in |
| Bending Radius: | 90 deg |
| Branch Quantity: | 2 |
| Burst Pressure: | 75 PSI |
| Centerline Length: | 40.5 in |
| Clamps Included: | No |
| Color: | Black |
| Contains Spring: | No |
| Coolant Hose Heat Shield Included: | No |
| Coolant Hose Type: | Branched |
| End 1 Attachment Type: | Hose |
| End 1 Inside Diameter: | 0.60 in |
| End 1 Type: | Hose |
| End 2 Attachment Type: | Quick Disconnect |
| End 2 Inside Diameter: | 0.95 in |
| End 2 Type: | Quick Disconnect |
| End 3 Attachment Type: | Hose |
| End 3 Inside Diameter: | 0.70 In |
| Grade Type: | Regular |
| Heat Shield Included: | No |
| Hose Attachment End 1: | Hose |
| Hose Attachment End 2: | Quick Disconnect |
| Hose End (1) Outside Diameter (In): | 0.97 in |
| Hose End (2) Outside Diameter (In): | 1.25 in |
| Hose End (3) Outside Diameter (In): | 0.87 in |
| Hose Material: | Rubber |
| Hose Outside Diameter: | 0.88 |
| Hose Overall Length (In): | 40.5 |
| Hose Quantity: | 1 |
| Hose Shape: | Molded Assembly |
| Inside Diameter: | 0.73 in |
| Length: | 40.5 in |
| Material: | Rubber |
| Maximum Bend Angle: | 45 deg |
| Maximum Working Pressure: | 50 PSI |
| Modular: | Branch |
| Modular Components Included: | Branch |
| Molded: | Yes |
| Mounting Bracket Included: | No |
| Outside Diameter: | 0.89 in |
| Package Contents: | 1 Heater Hose Assembly |
| Package Quantity: | 1 |
| Packaging Type: | Bag |
| Protective Sleeve Attached: | No |
| Protective Sleeve Included: | No |
| Quick Connect Fitting Quantity: | 1 |
| Thermostatically Controlled: | No |
| Working Pressure: | 50 PSI |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| CV6Z18N344A | FORD MOTOR COMPANY |
