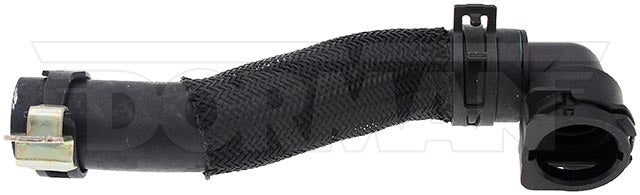

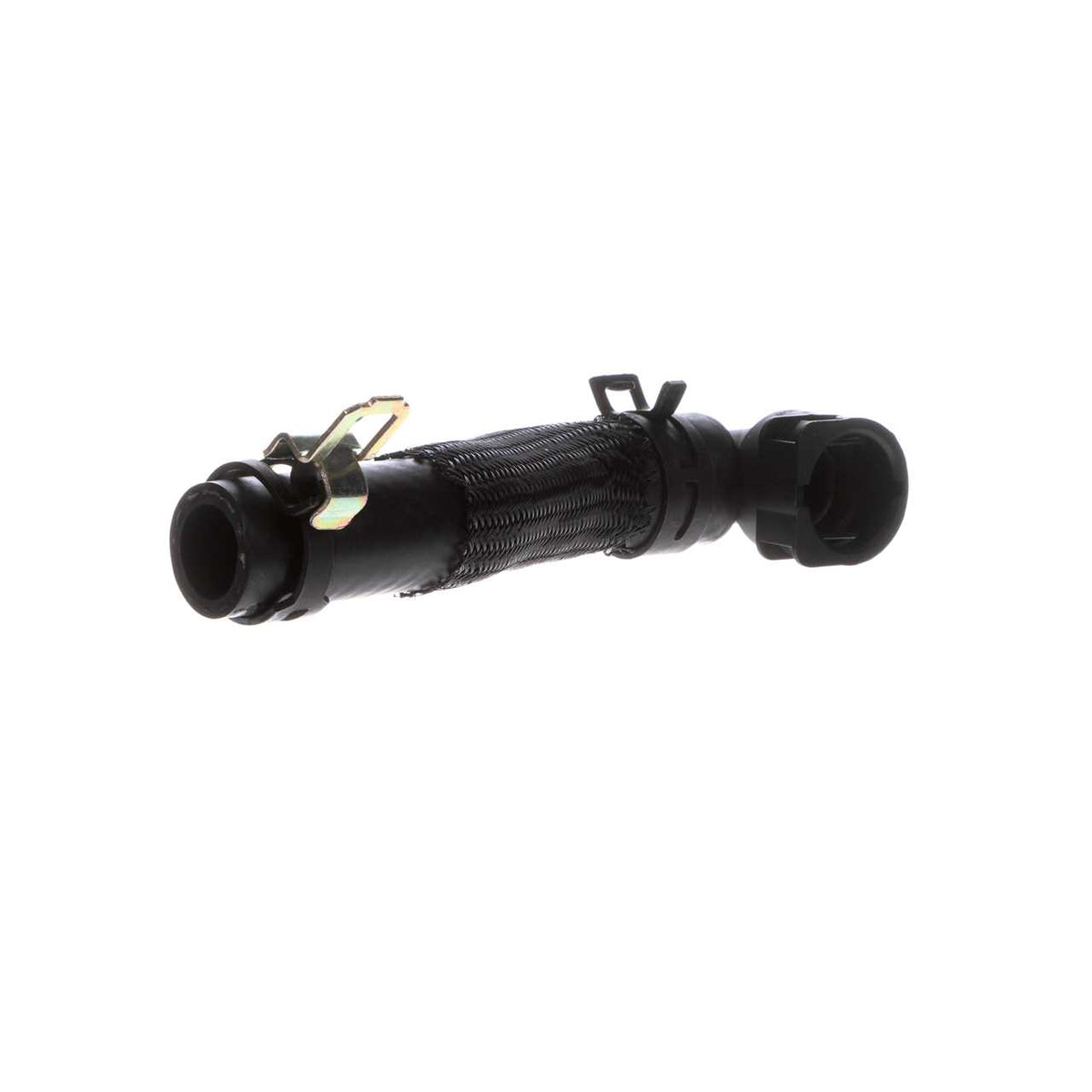

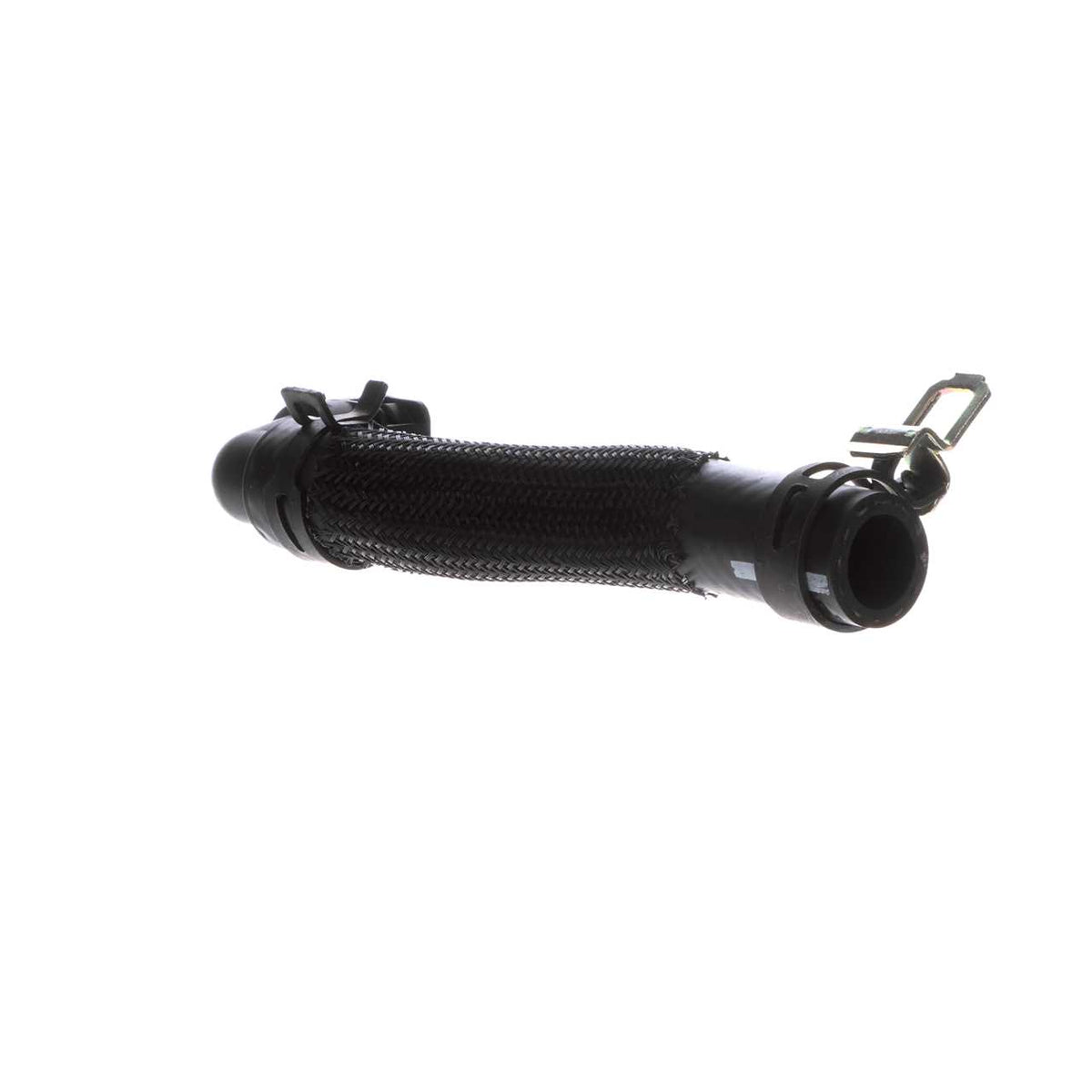

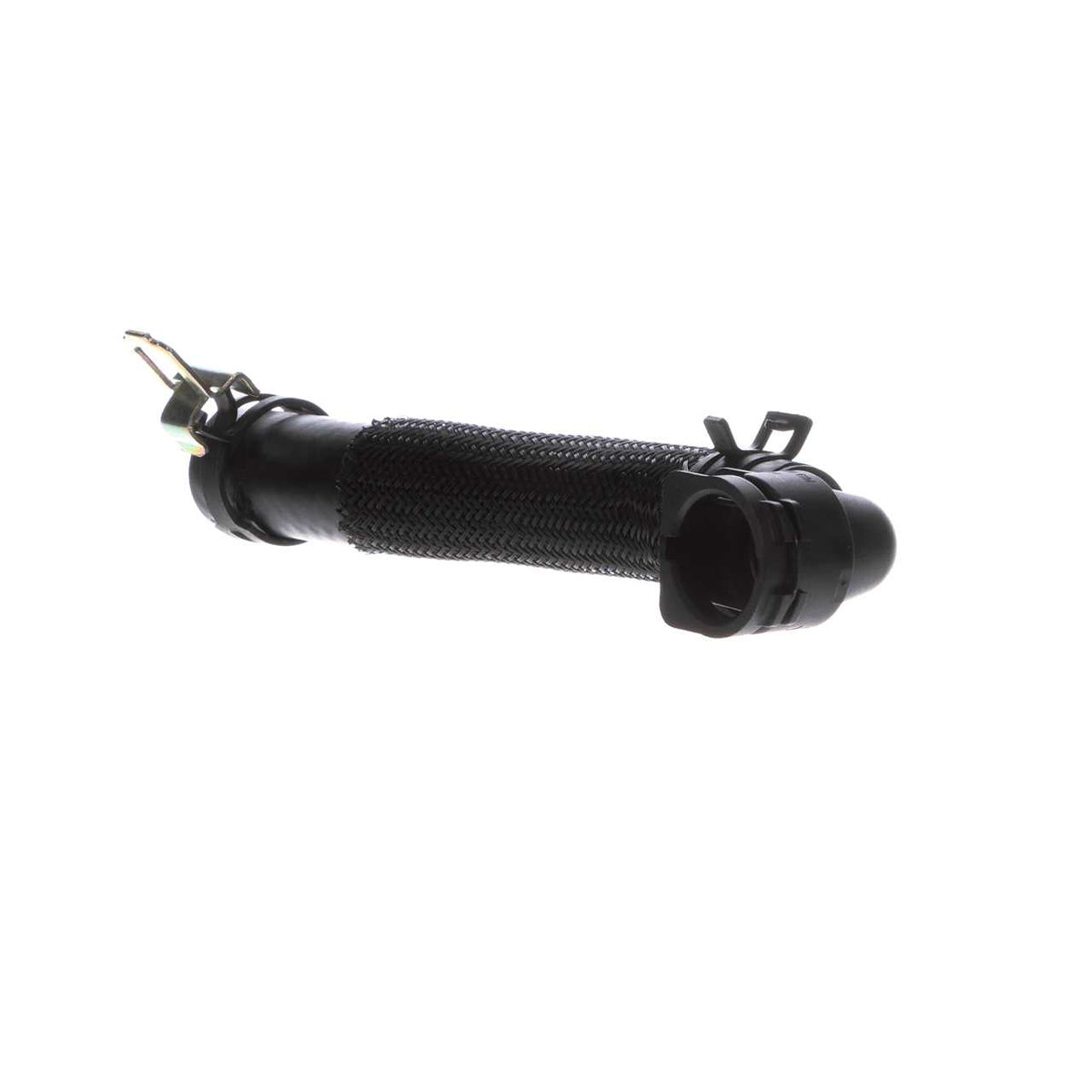

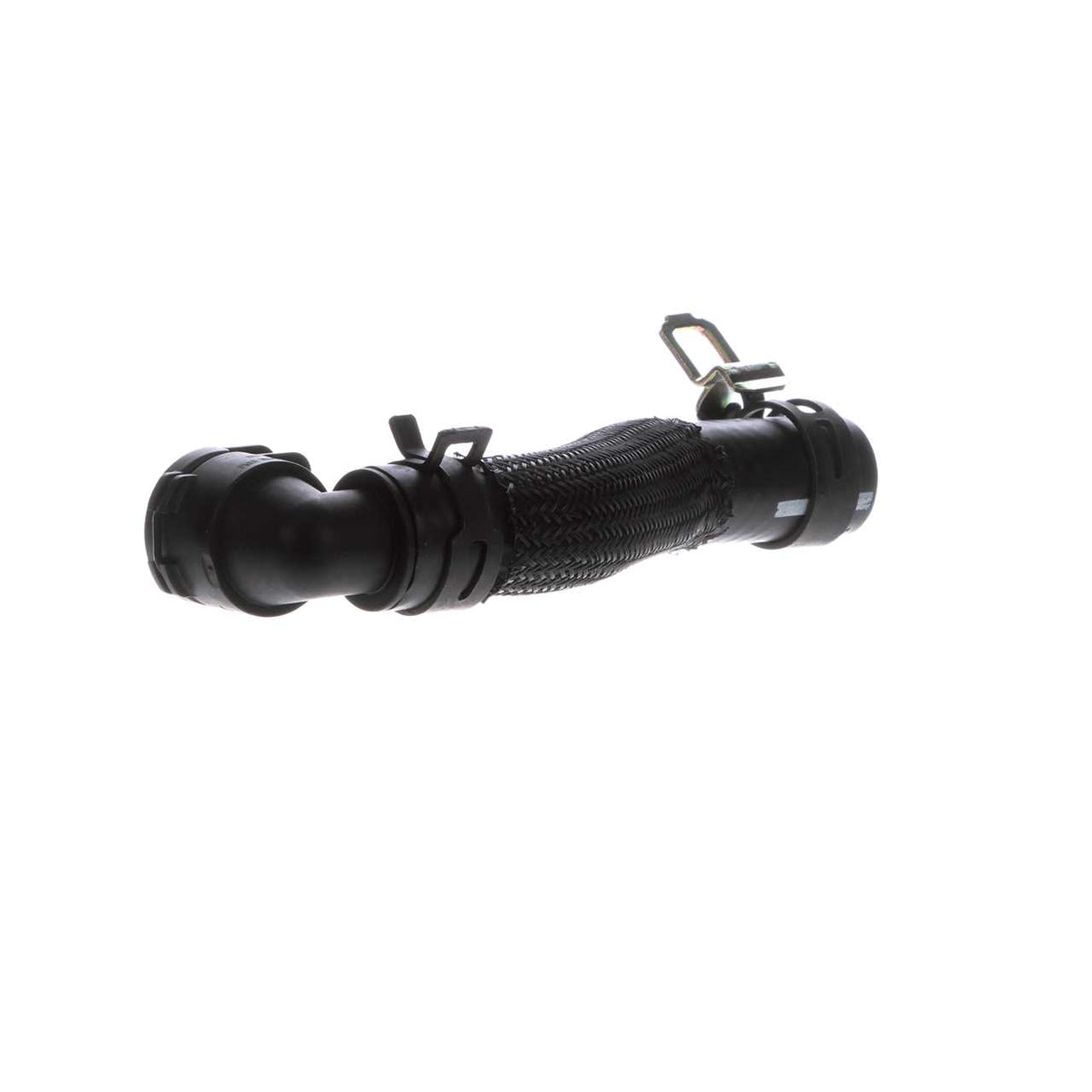

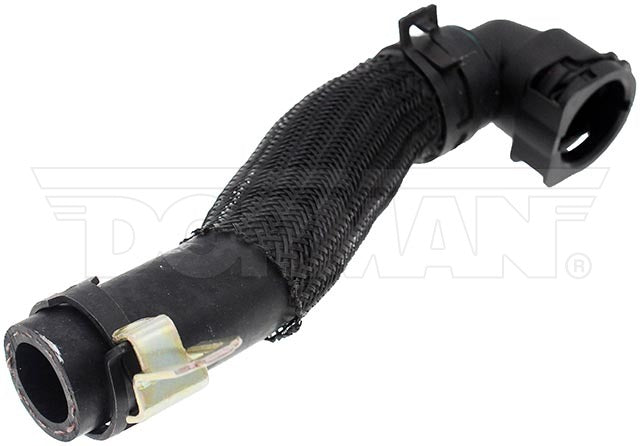

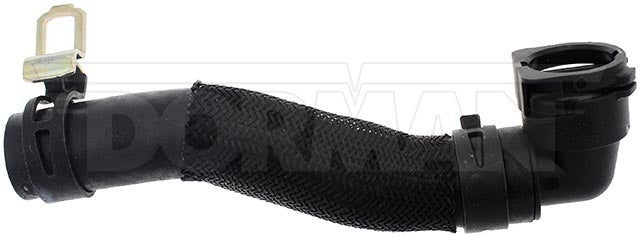

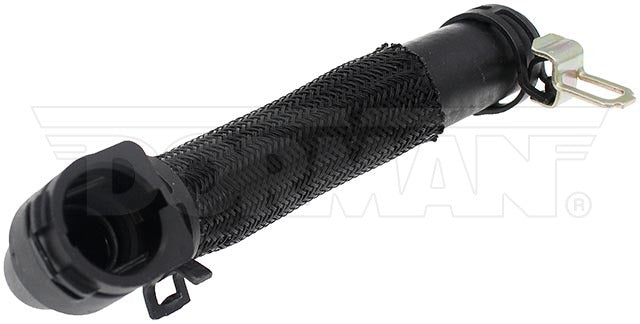

Dorman 626-809 Lower Engine Heater Hose Assembly 13-19 Ford Transit Connect
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$32.65
Select your vehicle at the top of the page to check fitment.
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
This replacement HVAC heater hose assembly is engineered to match the fit and durability of the stock heater hose assembly on specified vehicles. It is designed to withstand extreme temperature changes to extend service life.
- Ideal replacement - this HVAC heater hose assembly directly replaces the original heater hose on specified vehicle years, makes and models
- Durable construction - this part is specifically designed to withstand extreme temperature changes and resist cracking and leaking
- Cost-effective and reliable - offers original manufacturer quality at lower cost than getting replacement at dealer
- Industry-leading design - professionally engineered by the aftermarket leader in heater hose assemblies
Vehicle Fitment
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2019 | Ford | Escape | Lower | Transmission Cooler Valve |
| 2013-2018 | Ford | Escape | Lower | Transmission Cooler Valve; 2.5L L4 |
| 2013-2016 | Ford | Escape | Lower | Transmission Cooler Valve; 2.0L L4 |
| 2013-2016 | Ford | Escape | Lower | Transmission Cooler Valve; 1.6L L4 |
| 2014-2016 | Ford | Transit Connect | Lower | Transmission Cooler Valve; 1.6L L4 |
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | 626-809 |
| UPC | 194883235045 |
| Placement | Lower |
| Material | Rubber |
| Color | Black |
| Clamps Included | Yes |
| End 1 Inside Diameter | 22 mm |
| End 2 Inside Diameter | 16 mm |
| Contains Spring | No |
| Centerline Length | 14 in. |
| Hose Shape | Molded Assembly |
| Grade Type | Standard Replacement |
| Axis 1 Length | 14 in. |
| Package Quantity | 1 |
| Connector Quantity | 1 |
| Angle | 35 deg |
| Arm Length | 14 in |
| Bending Radius | 4 in |
| Coolant Hose Heat Shield Included | No |
| Coolant Hose Type | Non-Branched |
| End 1 Attachment Type | Quick Disconnect |
| End 1 Type | Quick Disconnect |
| End 2 Attachment Type | Hose |
| End 2 Type | Hose |
| Heat Shield Included | No |
| Hose Attachment End 1 | Quick Disconnect |
| Hose Attachment End 2 | Clamp |
| Hose End (1) Outside Diameter (In) | 1 in |
| Hose End (2) Outside Diameter (In) | 16 in |
| Hose Material | Rubber |
| Hose Outside Diameter | 16 |
| Hose Overall Length (In) | 14 in |
| Inside Diameter | 22 mm |
| Length | 14 |
| Modular | No |
| Modular Components Included | No |
| Mounting Bracket Included | No |
| Outside Diameter | 16 |
| Package Contents | 1 Heater Hose Assembly |
| Protective Sleeve Included | No |
| Thermostatically Controlled | No |
| Country of Origin | China |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| CV6Z18N345T | Ford (OE) |
|---|
