Product Description

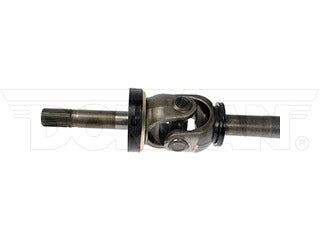

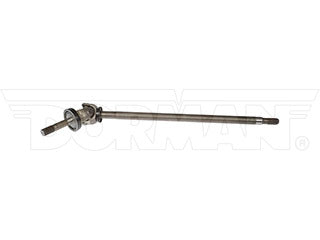

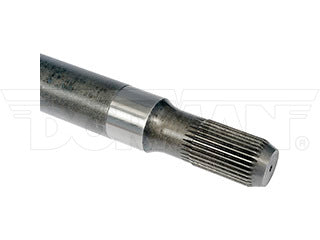

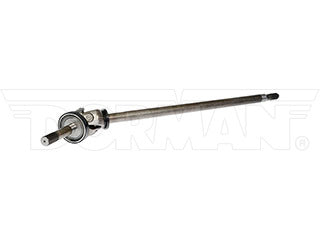

Axle shaft damaged or bearings worn out? This axle shaft directly replaces the original equipment on certain vehicles, complete with all necessary application-specific installation components.
- Direct replacement - this axle shaft replaces the original equipment on specific vehicle years, makes and models
- Complete kit - each shaft includes critical installation hardware and components needed for specific vehicle applications
- Durable construction - designed to rigorous standards and tested to ensure performance
- Trustworthy solution - backed by team of engineers and quality control specialists in the United States
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2005 | Ford | Excursion | 4WD | Front Right Outer | 30 Spline; Dana 50 Axle |
| 2004 | Ford | Excursion | 4WD | Front Right Outer | 30 Spline; Dana 50 Axle |
| 2004 | Ford | F-250 Super Duty | 4WD | Front Right Outer | 30 Spline; Dana 50 Axle |
| 2004 | Ford | F-350 Super Duty | 4WD | Front Right Outer | 30 Spline; Dana 50 Axle |
| 2004 | Ford | F-450 Super Duty | 4 X 4 | Front Right Outer | 30 Spline; Dana 50 Axle |
| 2004 | Ford | F-550 Super Duty | 4 X 4 | Front Right Outer | 30 Spline; Dana 50 Axle |
| 2003 | Ford | Excursion | 4WD | Front Right Outer | 30 Spline; Dana 50 Axle |
| 2003 | Ford | F-250 Super Duty | 4WD | Front Right Outer | 30 Spline; Dana 50 Axle |
| 2003 | Ford | F-350 Super Duty | 4WD | Front Right Outer | 30 Spline; Dana 50 Axle |
| 2003 | Ford | F-450 Super Duty | 4 X 4 | Front Right Outer | 30 Spline; Dana 50 Axle |
| 2003 | Ford | F-550 Super Duty | 4 X 4 | Front Right Outer | 30 Spline; Dana 50 Axle |
| 2002 | Ford | Excursion | 4WD | Front Right Outer | 30 Spline; Dana 50 Axle |
| 2002 | Ford | F-250 Super Duty | 4WD | Front Right Outer | 30 Spline; Dana 50 Axle |
| 2002 | Ford | F-350 Super Duty | 4WD | Front Right Outer | 30 Spline; Dana 50 Axle |
| 2002 | Ford | F-450 Super Duty | 4 X 4 | Front Right Outer | 30 Spline; Dana 50 Axle |
| 2002 | Ford | F-550 Super Duty | 4 X 4 | Front Right Outer | 30 Spline; Dana 50 Axle |
| 2001 | Ford | Excursion | 4WD | Front Right Outer | 30 Spline; Dana 50 Axle |
| 2001 | Ford | F-250 Super Duty | 4WD | Front Right Outer | 30 Spline; Dana 50 Axle |
| 2001 | Ford | F-350 Super Duty | 4WD | Front Right Outer | 30 Spline; Dana 50 Axle |
| 2001 | Ford | F-450 Super Duty | 4 X 4 | Front Right Outer | 30 Spline; Dana 50 Axle |
| 2001 | Ford | F-550 Super Duty | 4 X 4 | Front Right Outer | 30 Spline; Dana 50 Axle |
| 2000 | Ford | Excursion | 4WD | Front Right Outer | 30 Spline; Dana 50 Axle |
| 2000 | Ford | F-250 Super Duty | 4WD | Front Right Outer | 30 Spline; Dana 50 Axle |
| 2000 | Ford | F-350 Super Duty | 4WD | Front Right Outer | 30 Spline; Dana 50 Axle |
| 2000 | Ford | F-450 Super Duty | 4 X 4 | Front Right Outer | 30 Spline; Dana 50 Axle |
| 2000 | Ford | F-550 Super Duty | 4 X 4 | Front Right Outer | 30 Spline; Dana 50 Axle |
| 1999 | Ford | F-250 Super Duty | 4WD | Front Right Outer | 30 Spline; Dana 50 Axle |
| 1999 | Ford | F-350 Super Duty | 4WD | Front Right Outer | 30 Spline; Dana 50 Axle |
| 1999 | Ford | F-450 Super Duty | 4 X 4 | Front Right Outer | 30 Spline; Dana 50 Axle |
| 1999 | Ford | F-550 Super Duty | 4 X 4 | Front Right Outer | 30 Spline; Dana 50 Axle |
Product Specifications
| ABS Tone Ring Included: | No |
|---|---|
| ABS Tone Ring Installed: | No |
| Axle Nut Included: | No |
| Axle Shaft Seal Included: | No |
| Axle Type: | Universal Joint Axle |
| Bearing Included: | No |
| Brake Hardware Included: | No |
| CV Joints Included: | No |
| Diameter: | 40 mm |
| Differential Case Design Type: | Front Differential |
| Finish: | Galvanized |
| Hole Quantity: | 0 |
| Inboard Spline Quantity: | 30 |
| Inner Shaft Length: | 878 mm |
| Length (In): | 47.04 in |
| Material: | Carbon Steel |
| Minimum Length: | 1195 mm |
| Mounting Hole Quantity: | 0 |
| Outboard Spline Quantity: | 30 |
| Outer Shaft Length: | 147 mm |
| Package Contents: | 1 Front Axle Shaft |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Retainer Clips Included: | No |
| Retainer Included: | No |
| Rust Resistant Coating: | No |
| Shaft Diameter: | 40 mm |
| Shaft Length: | 1195 mm |
| Shaft Material: | Carbon Steel |
| Spline Length: | 50 mm |
| Spline Quantity: | 30 |
| Universal Joints Included: | Yes |
| Wheel Nuts Included: | No |
| Wheel Stud Quantity: | 0 |
| Wheel Studs Included: | No |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 3C3Z3219BA | FORD MOTOR COMPANY |
| 4C3Z3219BA | FORD MOTOR COMPANY |
| F81Z 3219-BA | FORD MOTOR COMPANY |
