Product Description

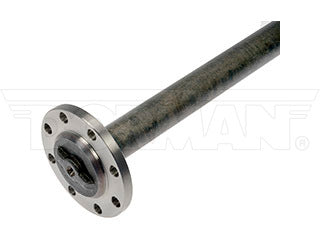

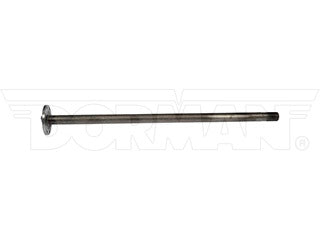

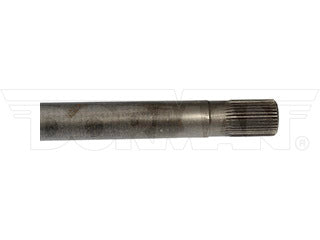

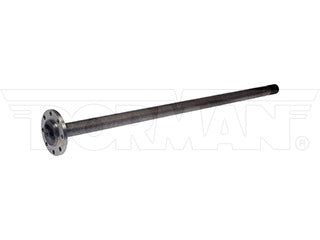

Axle shaft damaged or bearings worn out? This axle shaft directly replaces the original equipment on certain vehicles, complete with all necessary application-specific installation components.
- Direct replacement - this axle shaft replaces the original equipment on specific vehicle years, makes and models
- Complete kit - each shaft includes critical installation hardware and components needed for specific vehicle applications
- Durable construction - designed to rigorous standards and tested to ensure performance
- Trustworthy solution - backed by team of engineers and quality control specialists in the United States
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2002 | Dodge | Ram 3500 | Cab and Chassis | Rear | w/Sales Code DRL (Dana M80 Rear Axle) |
| 2001 | Dodge | Ram 3500 | Cab and Chassis | Rear | w/Sales Code DRL (Dana M80 Rear Axle) |
| 2000 | Dodge | Ram 3500 | Cab and Chassis | Rear | w/Sales Code DRL (Dana M80 Rear Axle) |
| 1999 | Dodge | Ram 3500 | Cab and Chassis | Rear | w/Sales Code DRL (Dana M80 Rear Axle) |
| 1998 | Dodge | Ram 3500 | Cab and Chassis | Rear | w/Sales Code DRL (Dana M80 Rear Axle) |
| 1997 | Dodge | Ram 3500 | Cab and Chassis | Rear | w/Sales Code DRL (Dana M80 Rear Axle) |
| 1996 | Dodge | Ram 3500 | Cab and Chassis | Rear | w/Sales Code DRL (Dana M80 Rear Axle) |
| 1995 | Dodge | Ram 3500 | Cab and Chassis | Rear | w/Sales Code DRL (Dana M80 Rear Axle) |
| 1994 | Dodge | Ram 3500 | Cab and Chassis | Rear | w/Sales Code DRL (Dana M80 Rear Axle) |
Product Specifications
| ABS Tone Ring Included: | No |
|---|---|
| ABS Tone Ring Installed: | No |
| Axle Nut Included: | No |
| Axle Shaft Seal Included: | No |
| Axle Type: | Rear Axle Shaft |
| Bearing Included: | No |
| Brake Hardware Included: | No |
| CV Joints Included: | No |
| Diameter: | 38 mm |
| Differential Case Design Type: | Full Floating |
| Finish: | Galvanized |
| Hole Quantity: | 8 |
| Inboard Spline Quantity: | 35 |
| Inner Shaft Length: | 94.5 mm |
| Length (In): | 37.4 |
| Material: | Carbon Steel |
| Minimum Length: | 94.5 mm |
| Mounting Hole Quantity: | 8 |
| Outboard Spline Quantity: | 0 |
| Outer Shaft Length: | 94.5 mm |
| Package Contents: | 1 Axle Shaft |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Retainer Clips Included: | No |
| Retainer Included: | No |
| Rust Resistant Coating: | No |
| Shaft Diameter: | 38 mm |
| Shaft Length: | 94.5 mm |
| Shaft Material: | Carbon Steel |
| Spline Length: | 49 mm |
| Spline Quantity: | 35 |
| Universal Joints Included: | No |
| Wheel Bolt Pattern Size: | 100.5 mm |
| Wheel Nuts Included: | No |
| Wheel Stud Quantity: | 0 |
| Wheel Studs Included: | No |
OE Numbers
| NON-DIRECT OE CROSS | |
|---|---|
| 4746995 | CHRYSLER |
