Product Description

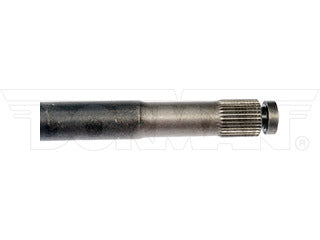

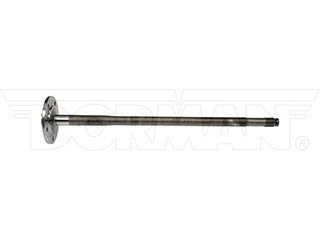

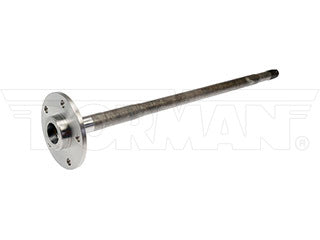

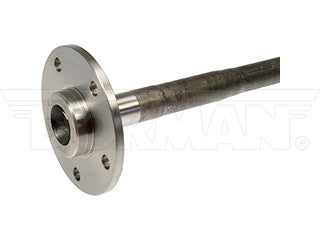

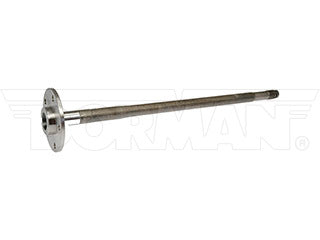

Axle shaft damaged or bearings worn out? This axle shaft directly replaces the original equipment on certain vehicles, complete with all necessary application-specific installation components.
- Direct replacement - this axle shaft replaces the original equipment on specific vehicle years, makes and models
- Complete kit - each shaft includes critical installation hardware and components needed for specific vehicle applications
- Durable construction - designed to rigorous standards and tested to ensure performance
- Trustworthy solution - backed by team of engineers and quality control specialists in the United States
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2011 | Dodge | Dakota (Mexico) | Rear Left | w/Sales Code DRB (Corporate 9.25 Light Duty Rear Axle) | |
| 2011 | Ram | Dakota | Rear Left | w/Sales Code DRB (Corporate 9.25 Light Duty Rear Axle) | |
| 2010 | Dodge | Dakota | Rear Left | w/Sales Code DRB (Corporate 9.25 Light Duty Rear Axle) | |
| 2009 | Dodge | Dakota | Rear Left | w/Sales Code DRB (Corporate 9.25 Light Duty Rear Axle) | |
| 2009 | Mitsubishi | Raider | Rear Left | w/Sales Code DRB (Corporate 9.25 Light Duty Rear Axle) | |
| 2008 | Dodge | Dakota | Rear Left | w/Sales Code DRB (Corporate 9.25 Light Duty Rear Axle) | |
| 2008 | Mitsubishi | Raider | Rear Left | w/Sales Code DRB (Corporate 9.25 Light Duty Rear Axle) | |
| 2007 | Dodge | Dakota | Rear Left | w/Sales Code DRB (Corporate 9.25 Light Duty Rear Axle) | |
| 2007 | Mitsubishi | Raider | Rear Left | w/Sales Code DRB (Corporate 9.25 Light Duty Rear Axle) | |
| 2006 | Dodge | Dakota | Rear Left | w/Sales Code DRB (Corporate 9.25 Light Duty Rear Axle) | |
| 2006 | Mitsubishi | Raider | Rear Left | w/Sales Code DRB (Corporate 9.25 Light Duty Rear Axle) | |
| 2005 | Dodge | Dakota | Rear Left | w/Sales Code DRB (Corporate 9.25 Light Duty Rear Axle) |
Product Specifications
| ABS Tone Ring Included: | No |
|---|---|
| ABS Tone Ring Installed: | No |
| Axle Nut Included: | No |
| Axle Shaft Seal Included: | Yes |
| Axle Type: | Full Floating |
| Bearing Included: | Yes |
| Brake Hardware Included: | No |
| CV Joints Included: | No |
| Diameter: | 183.5 mm |
| Differential Case Design Type: | Semi Floating |
| Finish: | Galvanized |
| Hole Quantity: | 5 |
| Inboard Spline Quantity: | 31 |
| Inner Shaft Length: | 34.5 mm |
| Length (In): | 33.3 |
| Material: | Carbon Steel |
| Minimum Length: | 845.5 mm |
| Mounting Hole Quantity: | 5 |
| Outboard Spline Quantity: | 0 |
| Outer Shaft Length: | 34.5 mm |
| Package Contents: | 1 Axle Shaft and Bearing Assembly; 1 Axle Seal |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Retainer Clips Included: | No |
| Retainer Included: | No |
| Rust Resistant Coating: | No |
| Shaft Diameter: | 34.5 mm |
| Shaft Length: | 845.5 mm |
| Shaft Material: | Carbon Steel |
| Spline Length: | 36 mm |
| Spline Quantity: | 31 |
| Universal Joints Included: | No |
| Wheel Bolt Pattern Size: | 140 mm |
| Wheel Nuts Included: | No |
| Wheel Stud Quantity: | 0 |
| Wheel Studs Included: | No |
OE Numbers
| NON-DIRECT OE CROSS | |
|---|---|
| 3507898AB | CHRYSLER |
| 52070427AB | CHRYSLER |
| 6036659AA | CHRYSLER |
| 68045423AA | CHRYSLER |
