Product Description

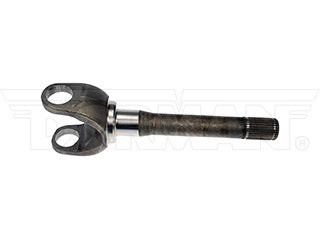

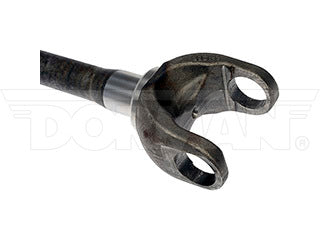

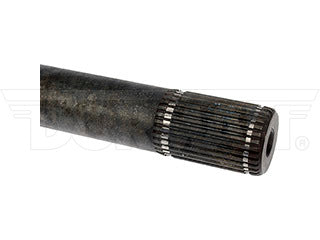

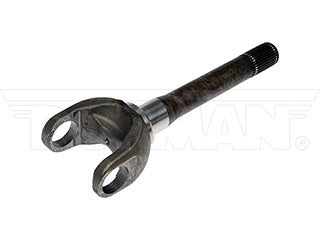

Axle shaft damaged or bearings worn out? This axle shaft directly replaces the original equipment on certain vehicles, complete with all necessary application-specific installation components.
- Direct replacement - this axle shaft replaces the original equipment on specific vehicle years, makes and models
- Complete kit - each shaft includes critical installation hardware and components needed for specific vehicle applications
- Durable construction - designed to rigorous standards and tested to ensure performance
- Trustworthy solution - backed by team of engineers and quality control specialists in the United States
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 1993 | Dodge | W250 | 4WD | Front Outer | Dana 60 Front Axle |
| 1993 | Dodge | W350 | 4WD | Front Outer | Dana 60 Front Axle |
| 1992 | Dodge | W250 | 4WD | Front Outer | Dana 60 Front Axle |
| 1992 | Dodge | W350 | 4WD | Front Outer | Dana 60 Front Axle |
| 1991 | Chevrolet | V3500 | 4WD | Front Outer | |
| 1991 | Dodge | W250 | 4WD | Front Outer | Dana 60 Front Axle |
| 1991 | Dodge | W350 | 4WD | Front Outer | Dana 60 Front Axle |
| 1991 | GMC | V3500 | 4WD | Front Outer | |
| 1990 | Chevrolet | V3500 | 4WD | Front Outer | |
| 1990 | Dodge | W250 | 4WD | Front Outer | Dana 60 Front Axle |
| 1990 | Dodge | W350 | 4WD | Front Outer | Dana 60 Front Axle |
| 1990 | GMC | V3500 | 4WD | Front Outer | |
| 1989 | Chevrolet | V3500 | 4WD | Front Outer | |
| 1989 | Dodge | W250 | 4WD | Front Outer | Dana 60 Front Axle |
| 1989 | Dodge | W350 | 4WD | Front Outer | Dana 60 Front Axle |
| 1989 | GMC | V3500 | 4WD | Front Outer | |
| 1988 | Chevrolet | V30 | 4WD | Front Outer | |
| 1988 | Dodge | W250 | 4WD | Front Outer | Dana 60 Front Axle |
| 1988 | Dodge | W350 | 4WD | Front Outer | Dana 60 Front Axle |
| 1988 | GMC | V3500 | 4WD | Front Outer | |
| 1987 | Chevrolet | V30 | 4WD | Front Outer | |
| 1987 | Dodge | W250 | 4WD | Front Outer | Dana 60 Front Axle |
| 1987 | Dodge | W350 | 4WD | Front Outer | Dana 60 Front Axle |
| 1987 | GMC | V3500 | 4WD | Front Outer | |
| 1986 | Chevrolet | K30 | 4WD | Front Outer | |
| 1986 | Dodge | W250 | 4WD | Front Outer | Dana 60 Front Axle |
| 1986 | Dodge | W350 | 4WD | Front Outer | Dana 60 Front Axle |
| 1986 | GMC | K3500 | 4WD | Front Outer | |
| 1985 | Chevrolet | K30 | 4WD | Front Outer | |
| 1985 | Dodge | W250 | 4WD | Front Outer | Dana 60 Front Axle |
| 1985 | Dodge | W350 | 4WD | Front Outer | Dana 60 Front Axle |
| 1985 | GMC | K3500 | 4WD | Front Outer | |
| 1984 | Chevrolet | K30 | 4WD | Front Outer | |
| 1984 | Dodge | W250 | 4WD | Front Outer | Dana 60 Front Axle |
| 1984 | Dodge | W350 | 4WD | Front Outer | Dana 60 Front Axle |
| 1984 | GMC | K3500 | 4WD | Front Outer | |
| 1983 | Chevrolet | K30 | 4WD | Front Outer | |
| 1983 | Dodge | W250 | 4WD | Front Outer | Dana 60 Front Axle |
| 1983 | Dodge | W350 | 4WD | Front Outer | Dana 60 Front Axle |
| 1983 | GMC | K3500 | 4WD | Front Outer | |
| 1982 | Chevrolet | K30 | 4WD | Front Outer | |
| 1982 | GMC | K3500 | 4WD | Front Outer | |
| 1981 | Chevrolet | K30 | 4WD | Front Outer | |
| 1981 | GMC | K3500 | 4WD | Front Outer | |
| 1980 | Chevrolet | K30 | 4WD | Front Outer | |
| 1980 | GMC | K3500 | 4WD | Front Outer | |
| 1979 | Chevrolet | K30 | 4WD | Front Outer | |
| 1979 | GMC | K3500 | 4WD | Front Outer |
Product Specifications
| ABS Tone Ring Included: | No |
|---|---|
| ABS Tone Ring Installed: | No |
| Axle Nut Included: | No |
| Axle Shaft Seal Included: | No |
| Axle Type: | Full Floating |
| Bearing Included: | No |
| Brake Hardware Included: | No |
| CV Joints Included: | No |
| Diameter: | 102.5 mm |
| Differential Case Design Type: | Full Floating |
| Finish: | Galvanized |
| Hole Quantity: | 2 |
| Inboard Spline Quantity: | 30 |
| Inner Shaft Length: | 330 mm |
| Length (In): | 13 |
| Material: | Carbon Steel |
| Minimum Length: | 330 mm |
| Mounting Hole Quantity: | 0 |
| Outboard Spline Quantity: | 0 |
| Outer Shaft Length: | 330 mm |
| Package Contents: | 1 Axle Shaft |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Retainer Clips Included: | No |
| Retainer Included: | No |
| Rust Resistant Coating: | No |
| Shaft Diameter: | 38 mm |
| Shaft Length: | 330 mm |
| Shaft Material: | Carbon Steel |
| Spline Length: | 47 mm |
| Spline Quantity: | 30 |
| Universal Joints Included: | No |
| Wheel Bolt Pattern Size: | 140 mm |
| Wheel Nuts Included: | No |
| Wheel Stud Quantity: | 0 |
| Wheel Studs Included: | No |
OE Numbers
| NON-DIRECT OE CROSS | |
|---|---|
| 15594118 | GENERAL MOTORS |
