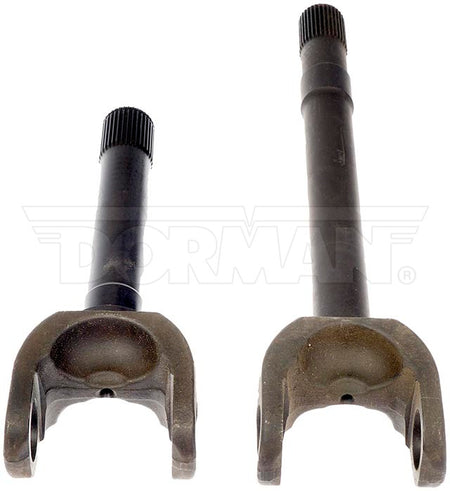

Dorman 630-436 Front Axle Shaft Kit With 35-spline outer axle 77-91 GMC K3500
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$372.88
Select your vehicle at the top of the page to check fitment.
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
Axle shaft damaged or bearings worn out? This axle shaft assembly directly replaces the original equipment on certain vehicles, ready for install right out of the box.
- Direct replacement - this axle shaft assembly replaces the original equipment on specific vehicle years, makes and models
- Ready to install - comes pre-assembled for simple installation with no further assembly required
- Durable construction - designed to rigorous standards and tested to ensure performance
- Trustworthy solution - backed by team of engineers and quality control specialists in the United States
Vehicle Fitment
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1977-1986 | Chevrolet | K30 | Front Right | 35 Spline; Dana 60 Axle |
| 1987-1988 | Chevrolet | V30 | Front Right | 35 Spline; Dana 60 Axle |
| 1989-1991 | Chevrolet | V3500 | Front Right | 35 Spline; Dana 60 Axle |
| 1977-1978 | GMC | K35 | Front Right | 35 Spline; Dana 60 Axle |
| 1979-1986 | GMC | K3500 | Front Right | 35 Spline; Dana 60 Axle |
| 1987-1991 | GMC | V3500 | Front Right | 35 Spline; Dana 60 Axle |
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | 630-436 |
| UPC | 019495438762 |
| Placement | Front, Right |
| Wheel Bolt Pattern Size | 8x6.5 |
| Brake Backing Plate Included | No |
| Shaft Length | 17.66 in. |
| Shaft Material | Chromoly Steel |
| Shaft Diameter | 1.57 in. |
| Differential Case Design Type | Dana 60 |
| Wheel Studs Included | No |
| Inboard Spline Quantity | 36 |
| Grade Type | Standard Replacement |
| ABS Tone Ring Included | No |
| Adjustable | No |
| Axle Shaft Seal Included | No |
| Compressed Length | 29.69 in |
| Length | 29.69 in |
| Material | Chromoly Steel |
| Package Contents | Inner Axle Shaft; Outer Axle Shaft |
| Wheel Stud Thread Diameter | 9/16 in |
| Wheel Stud Thread Pitch | 18 mm |
| Country of Origin | India |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| 462808 | General Motors (OE) |
|---|
