Dorman 672-134 Catalytic Converter with Integrated Exhaust Manifold
Regular price
$1,129.04
Couldn't load pickup availability
Product Description

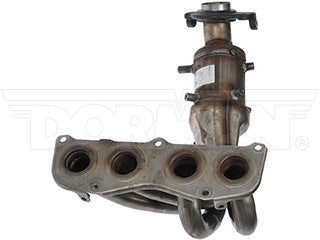

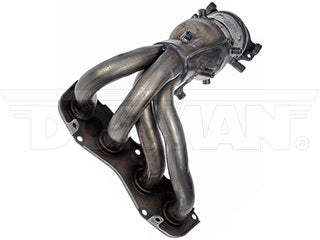

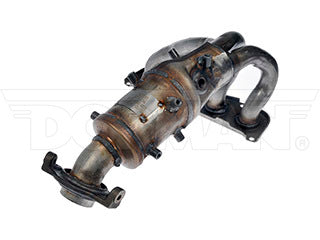

This catalytic converter with integrated exhaust manifold - a.k.a. manifold converter - is precision-engineered to match the original equipment on specific vehicle years, makes and models for a reliable replacement.
- Direct replacement - this manifold converter is designed to match the fit and performance of the original equipment on specific vehicles
- Convenient kit - includes gaskets and downpipe hardware to simplify installation
- Durable construction -manufactured within strict tolerances for reliable longevity
- Trustworthy value - backed by team of engineers and quality control experts in the United States
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2007 | Toyota | Highlander | L4 2.4L (2362cc) | CARB Compliant: Yes; Engine Family Number (EFN) 7TYXT02.4AHN | |
| 2006 | Toyota | Highlander | L4 2.4L (2362cc) | CARB Compliant: Yes; Engine Family Number (EFN) 6TYXT02.45MM | |
| 2005 | Toyota | Highlander | L4 2.4L (2362cc) | CARB Compliant: Yes; Engine Family Number (EFN) 5TYXT02.4VMM | |
| 2004 | Toyota | Highlander | L4 2.4L (2362cc) | CARB Compliant: Yes; Engine Family Number (EFN) 4TYXT02.4VMM |
Product Specifications
| Air Tube Adaptable: | No |
|---|---|
| Air Tube Count: | 0 |
| Body Height: | 23 in |
| Body Shape: | Round |
| Body Width: | 9 in |
| California Air Resources Board (CARB) Certified: | Yes |
| Clamps Included: | No |
| Color: | Metallic Gray |
| Converter Body Length: | 19 in |
| Converter Body Material: | Stainless Steel |
| Converter Quantity: | 1 |
| Finish: | Uncoated |
| Gasket Or Seal Included: | Yes |
| Grade Type: | Standard Replacement |
| Heat Shield Attached: | No |
| Inlet Gasket Included: | Yes |
| Inlet Inside Diameter: | 1.4 in |
| Inlet Mounting Hardware Included: | Yes |
| Inlet Mounting Hole Quantity: | 5 |
| Inlet Port Shape: | Round |
| Inlet Quantity: | 4 |
| Inlet Type: | Flanged |
| Material: | Stainless Steel |
| New York Certified: | Yes |
| Outlet Gasket Included: | Yes |
| Outlet Inside Diameter: | 1.4 in |
| Outlet Mounting Hardware Included: | Yes |
| Outlet Mounting Hole Quantity: | 2 |
| Outlet Outside Diameter: | 1.7 in |
| Outlet Port Shape: | Round |
| Outlet Quantity: | 1 |
| Outlet Type: | Flanged |
| Overall Length: | 23 in |
| Oxygen Sensor Location: | Pre Converter |

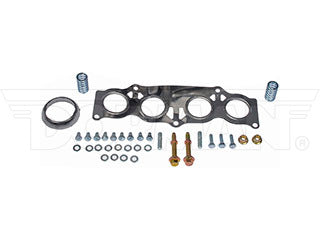

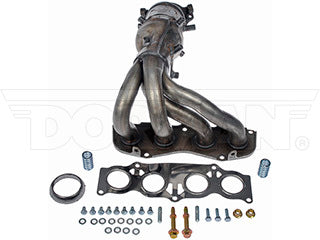

| Package Contents: | 1 Manifold Converter; 1 Inlet Gasket; 1 Outlet Gasket; 12 Washers; 13 Screws; 2 Nuts |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Sensor Port Count: | 1 |
| Substrate Material: | Ceramic |
| Tube Wall Thickness: | 0.125 in |
| Type: | One-Piece |
| Universal Or Specific Fit: | Specific |
| CARB Executive Order Number: | D-798-14 |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 25051-28290 | TOYOTA |
