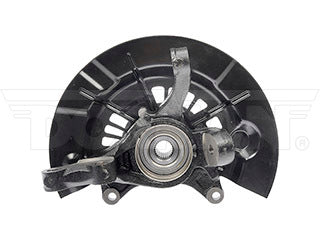

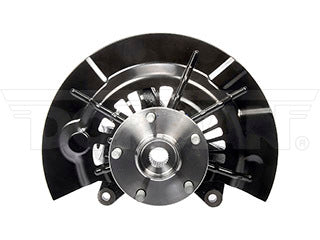

Dorman 686-248 Steering - Knuckle Kit
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$211.96
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
Product Description
Fixing a worn wheel bearing would traditionally require a difficult procedure using a hydraulic press, or purchasing multiple components. This Dorman OE FIX loaded knuckle includes all critical components already assembled for a fast, simple, safe install. For repair shops, that makes it less likely that you will have a vehicle stuck in the service bay. For vehicle owners, that makes this formerly complex job requiring special equipment much easier.
- Pre-pressed assembly - this complete loaded knuckle kit includes all necessary components ready for installation right out of the box
- Saves hours - eliminates the possibility of extended time spent wrestling with individual corroded components
- Simpler solution - no need for hydraulic press to perform complete bearing repair, making replacement faster and more predictable for both professionals and DIYers
- Quality engineering - designed in the United States and backed by a century of automotive aftermarket experience
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2017 | Toyota | Camry | L4 152 2.5L (2494cc); GAS; LE Submodel | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2017 | Toyota | Camry | L4 152 2.5L (2494cc); GAS; XLE Submodel | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2016 | Toyota | Camry | L4 152 2.5L (2494cc); GAS; LE Submodel | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2016 | Toyota | Camry | L4 152 2.5L (2494cc); GAS; XLE Submodel | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2015 | Toyota | Camry | L4 152 2.5L (2494cc); GAS; LE Submodel | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2015 | Toyota | Camry | L4 152 2.5L (2494cc); GAS; XLE Submodel | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2014 | Toyota | Camry | L4 152 2.5L (2494cc); GAS; LE Submodel | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2014 | Toyota | Camry | L4 152 2.5L (2494cc); GAS; XLE Submodel | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2014 | Toyota | Camry | L4 152 2.5L (2494cc); L Submodel | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2013 | Toyota | Camry | L4 152 2.5L (2494cc); GAS; LE Submodel | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2013 | Toyota | Camry | L4 152 2.5L (2494cc); GAS; XLE Submodel | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2013 | Toyota | Camry | L4 152 2.5L (2494cc); L Submodel | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2012 | Toyota | Camry | L4 152 2.5L (2494cc); GAS; LE Submodel | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2012 | Toyota | Camry | L4 152 2.5L (2494cc); GAS; XLE Submodel | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2012 | Toyota | Camry | L4 152 2.5L (2494cc); L Submodel | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
Product Specifications
| Anti Lock Brake Sensor Included: | No |
|---|---|
| Anti Lock Braking System: | Yes |
| Anti Lock Braking System Type: | Encoder |
| Axle Included: | No |
| Axle Nut Included: | Yes |
| Bearing Generation: | Gen 1 |
| Bearing Type: | Ball |
| Bolt Circle Diameter: | 114.3 mm |
| Brake Pilot Diameter: | 62 mm |
| Color: | Black |
| Connector Quantity: | 0 |
| Connector Terminal Quantity: | 0 |
| Drive Type: | Driven |
| Finish: | Painted |
| Flange Bolt Hole Diameter: | 114.3 mm |
| Flange Bolt Hole Quantity: | 5 |
| Flange Bolts Included: | Yes |
| Flange Diameter: | 139 mm |
| Flange Included: | Yes |
| Flange Offset: | 10.3 mm |
| Flange Quantity: | 1 |
| Flange Shape: | Circular |
| Grade Type: | Standard Replacement |
| Hub Included: | Yes |
| Hub Pilot Diameter: | 45 mm |
| Inside Diameter: | 76.4 mm |
| Instruction Manual Included: | No |
| Knuckle Bolt Circle Diameter: | 114.3 mm |
| Knuckle Bolt Hole Size: | 12.3 mm; 12.5 mm; 17 mm |
| Knuckle Bolt Hole Thread Type: | Fine |
| Knuckle Bolt Thread Pitch: | 1.5 mm |
| Knuckle Pilot Hole Diameter: | 12.85 mm |
| Material: | Cast Iron |
| Mounting Hardware Included: | No |
| Nut Included: | Yes |
| Outside Diameter: | 97 mm |
| Package Contents: | 1 Loaded Knuckle; 1 Axle Nut |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Pre-Greased: | No |
| Selling Package Quantity UOM: | Piece |
| Spline Quantity: | 26 |
| Stud Thread Type: | Fine |
| Thread Tolerance: | 6g |
| Wheel Bolt Thread Pitch: | 1.5 mm |
| Wheel Pilot Diameter: | 60 mm |
| Wheel Stud Quantity: | 5 |
| Wheel Stud Size: | M12-1.5 |
| Wheel Stud Thread Pitch: | 1.5 mm |
| Wheel Studs Included: | Yes |
| Width: | 311.55 mm |
OE Numbers
| NON-DIRECT OE CROSS | |
|---|---|
| 43211AA010 | TOYOTA |
| 43502-AA011 | TOYOTA |
| 47781-06130 | TOYOTA |
| 90080-36193 | TOYOTA |
