Product Description

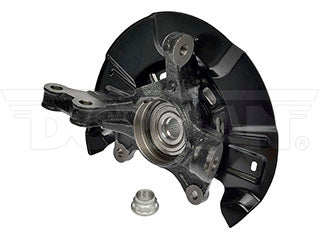

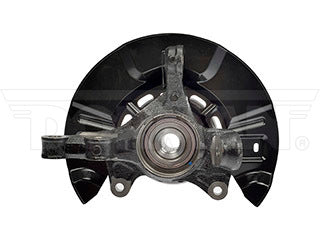

Fixing a worn wheel bearing would traditionally require a difficult procedure using a hydraulic press or purchasing multiple components. This Dorman OE FIX loaded knuckle includes all critical components already assembled for a fast, simple, safe install. For repair shops, that makes it less likely that you will have a vehicle stuck in the service bay. For vehicle owners, that makes this formerly complex job requiring special equipment much easier.
- Pre-pressed assembly - this complete loaded knuckle kit includes all necessary components ready for installation right out of the box
- Saves time - eliminates the possibility of extended time spent wrestling with individual corroded components
- Simpler solution - no need for hydraulic press to perform complete bearing repair, making replacement faster and more predictable for both professionals and DIYers
- Quality engineering - designed in the United States and backed by a century of automotive aftermarket experience
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2013 | Toyota | Matrix | FWD; L4 2.4L (2362cc) | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2012 | Toyota | Matrix | FWD; L4 2.4L (2362cc) | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2011 | Toyota | Matrix | FWD; L4 2.4L (2362cc) | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2010 | Pontiac | Vibe | FWD; L4 2.4L (2362cc) | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2010 | Toyota | Matrix | FWD; L4 2.4L (2362cc) | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2009 | Pontiac | Vibe | FWD; L4 2.4L (2362cc) | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2009 | Toyota | Matrix | FWD; L4 2.4L (2362cc) | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
Product Specifications
| Anti Lock Brake Sensor Included: | No |
|---|---|
| Anti Lock Braking System: | Yes |
| Anti Lock Braking System Type: | Sensor |
| Bearing Type: | Ball |
| Bolt Circle Diameter: | 114.3 mm |
| Brake Pilot Diameter: | 139 mm |
| Connector Quantity: | 0 |
| Drive Type: | Driven |
| Flange Bolt Hole Diameter: | 12.85 mm |
| Flange Bolt Hole Quantity: | 5 |
| Flange Bolts Included: | Yes |
| Flange Diameter: | 139 mm |
| Flange Included: | Yes |
| Flange Shape: | Circular |
| Hub Pilot Diameter: | 71.25 mm |
| Knuckle Pilot Hole Diameter: | 27.5 mm |
| Mounting Hardware Included: | No |

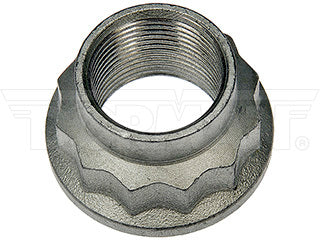

| Package Contents: | 1 Steering Knuckle; 1 Hub; 1 Bearing; 1 Backing Plate; 1 Snap Ring; 3 Hex Head Bolts; 1 Axle Nut |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Selling Package Quantity UOM: | Piece |
| Spline Quantity: | 26 |
| Wheel Pilot Diameter: | 62 mm |
| Wheel Stud Quantity: | 5 |
| Wheel Stud Size: | 12 mm; 1.5 mm |
| Wheel Studs Included: | Yes |
OE Numbers
| NON-DIRECT OE CROSS | |
|---|---|
| 4321102230 | TOYOTA |
| 4350202090 | TOYOTA |
| 4778102140 | TOYOTA |
| 90080-36193 | TOYOTA |
