Dorman 686-269 Wheel Bearing and Hub Assembly
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$340.17
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
Product Description

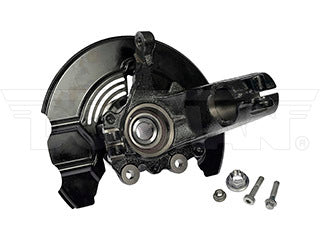

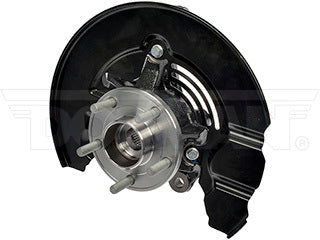

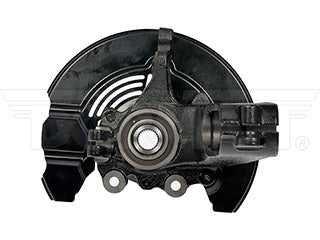

Fixing a worn wheel bearing would traditionally require a difficult procedure using a hydraulic press, or purchasing multiple components. This Dorman OE FIX loaded knuckle includes all critical components already assembled for a fast, simple, safe install. For repair shops, that makes it less likely that you will have a vehicle stuck in the service bay. For vehicle owners, that makes this formerly complex job requiring special equipment much easier.
- Pre-pressed assembly - this complete loaded knuckle kit includes all necessary components ready for installation right out of the box

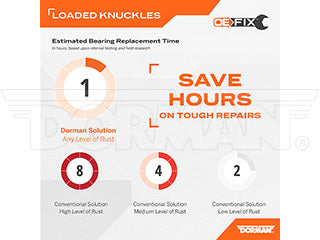

- Saves hours - eliminates the possibility of extended time spent wrestling with individual corroded components
- Simpler solution - no need for hydraulic press to perform complete bearing repair, making replacement faster and more predictable for both professionals and DIYers
- Quality engineering - designed in the United States and backed by a century of automotive aftermarket experience
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2018 | Ford | Transit Connect | 104.8 Inch Wheelbase | Front Left | Loaded Knuckle, Includes Hub, Bearing, and Dust Shield |
| 2017 | Ford | Transit Connect | 104.8 Inch Wheelbase | Front Left | Loaded Knuckle, Includes Hub, Bearing, and Dust Shield |
| 2016 | Ford | Transit Connect | 104.8 Inch Wheelbase | Front Left | Loaded Knuckle, Includes Hub, Bearing, and Dust Shield |
| 2015 | Ford | Transit Connect | 104.8 Inch Wheelbase | Front Left | Loaded Knuckle, Includes Hub, Bearing, and Dust Shield |
| 2014 | Ford | Transit Connect | 104.8 Inch Wheelbase | Front Left | Loaded Knuckle, Includes Hub, Bearing, and Dust Shield |
Product Specifications
| Anti Lock Brake Sensor Included: | No |
|---|---|
| Anti Lock Braking System: | Yes |
| Anti Lock Braking System Type: | Encoder |
| Bearing Type: | Ball |
| Bolt Circle Diameter: | 108 mm |
| Brake Pilot Diameter: | 63.3 mm |
| Connector Quantity: | 0 |
| Connector Terminal Quantity: | 0 |
| Drive Type: | Driven |
| Flange Bolt Hole Diameter: | M12 X 1.5 |
| Flange Bolt Hole Quantity: | 5 |
| Flange Bolts Included: | Yes |
| Flange Diameter: | 136.5 mm |
| Flange Included: | Yes |
| Flange Offset: | 4.2 mm |
| Flange Shape: | Circular |
| Hub Pilot Diameter: | 45 mm |
| Mounting Hardware Included: | No |
| Package Contents: | 1 Wheel Bearing and Hub Assembly |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Selling Package Quantity UOM: | Piece |
| Spline Quantity: | 27 |
| Wheel Pilot Diameter: | 63.3 mm |
| Wheel Stud Quantity: | 5 |
| Wheel Stud Size: | M12 X 1.75 |
| Wheel Studs Included: | Yes |
OE Numbers
| NON-DIRECT OE CROSS | |
|---|---|
| AV6Z1104A | FORD MOTOR COMPANY |
| CV6Z1215B | FORD MOTOR COMPANY |
| DV6Z2K005A | FORD MOTOR COMPANY |
| DV6Z3K186B | FORD MOTOR COMPANY |
