Product Description

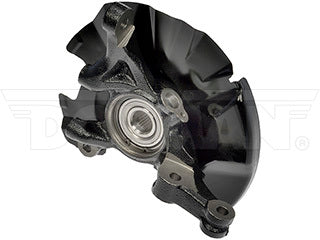

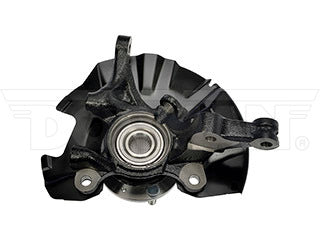

Fixing a worn wheel bearing would traditionally require a difficult procedure using a hydraulic press, or purchasing multiple components. This Dorman OE FIX loaded knuckle includes all critical components already assembled for a fast, simple, safe install. For repair shops, that makes it less likely that you will have a vehicle stuck in the service bay. For vehicle owners, that makes this formerly complex job requiring special equipment much easier.
- Pre-pressed assembly - this complete loaded knuckle kit includes all necessary components ready for installation right out of the box
- Saves hours - eliminates the possibility of extended time spent wrestling with individual corroded components
- Simpler solution - no need for hydraulic press to perform complete bearing repair, making replacement faster and more predictable for both professionals and DIYers
- Quality engineering - designed in the United States and backed by a century of automotive aftermarket experience
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2011 | Hyundai | Accent | Front Left | To 2/11/11; Loaded Knuckle, Includes Hub, Bearing, and Dust Shield | |
| 2010 | Hyundai | Accent | Front Left | Loaded Knuckle, Includes Hub, Bearing, and Dust Shield | |
| 2009 | Hyundai | Accent | Front Left | Loaded Knuckle, Includes Hub, Bearing, and Dust Shield | |
| 2008 | Hyundai | Accent | Front Left | Loaded Knuckle, Includes Hub, Bearing, and Dust Shield | |
| 2007 | Hyundai | Accent | Front Left | Loaded Knuckle, Includes Hub, Bearing, and Dust Shield | |
| 2006 | Hyundai | Accent | Front Left | New Body Style; Loaded Knuckle, Includes Hub, Bearing, and Dust Shield |
Product Specifications
| Anti Lock Brake Sensor Included: | No |
|---|---|
| Anti Lock Braking System: | Yes |
| Anti Lock Braking System Type: | Encoder |
| Bearing Type: | Ball |
| Bolt Circle Diameter: | 100 mm |
| Brake Pilot Diameter: | 120 mm |
| Connector Quantity: | 0 |
| Drive Type: | Driven |
| Flange Bolt Hole Diameter: | 12.8 mm |
| Flange Bolt Hole Quantity: | 4 |
| Flange Bolts Included: | Yes |
| Flange Diameter: | 120 mm |
| Flange Included: | Yes |
| Flange Shape: | Circular |
| Hub Pilot Diameter: | 70 mm |
| Knuckle Pilot Hole Diameter: | 26.4 mm |
| Mounting Hardware Included: | No |
| Package Contents: | 1 Steering Knuckle; 1 Hub; 1 Bearing; 1 Backing Plate; 1 Snap Ring; 1 Cotter Pin; 2 Washers; 1 Axle Nut |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Selling Package Quantity UOM: | Piece |
| Spline Quantity: | 25 |
| Wheel Pilot Diameter: | 47.9 mm |
| Wheel Stud Quantity: | 4 |
| Wheel Stud Size: | 12 mm; 1.5 mm |
| Wheel Studs Included: | Yes |
OE Numbers
| NON-DIRECT OE CROSS | |
|---|---|
| 517151E100 | HYUNDAI |
| 5172002000 | HYUNDAI |
| 51750-25001 | HYUNDAI |
| 517551E000 | HYUNDAI |
