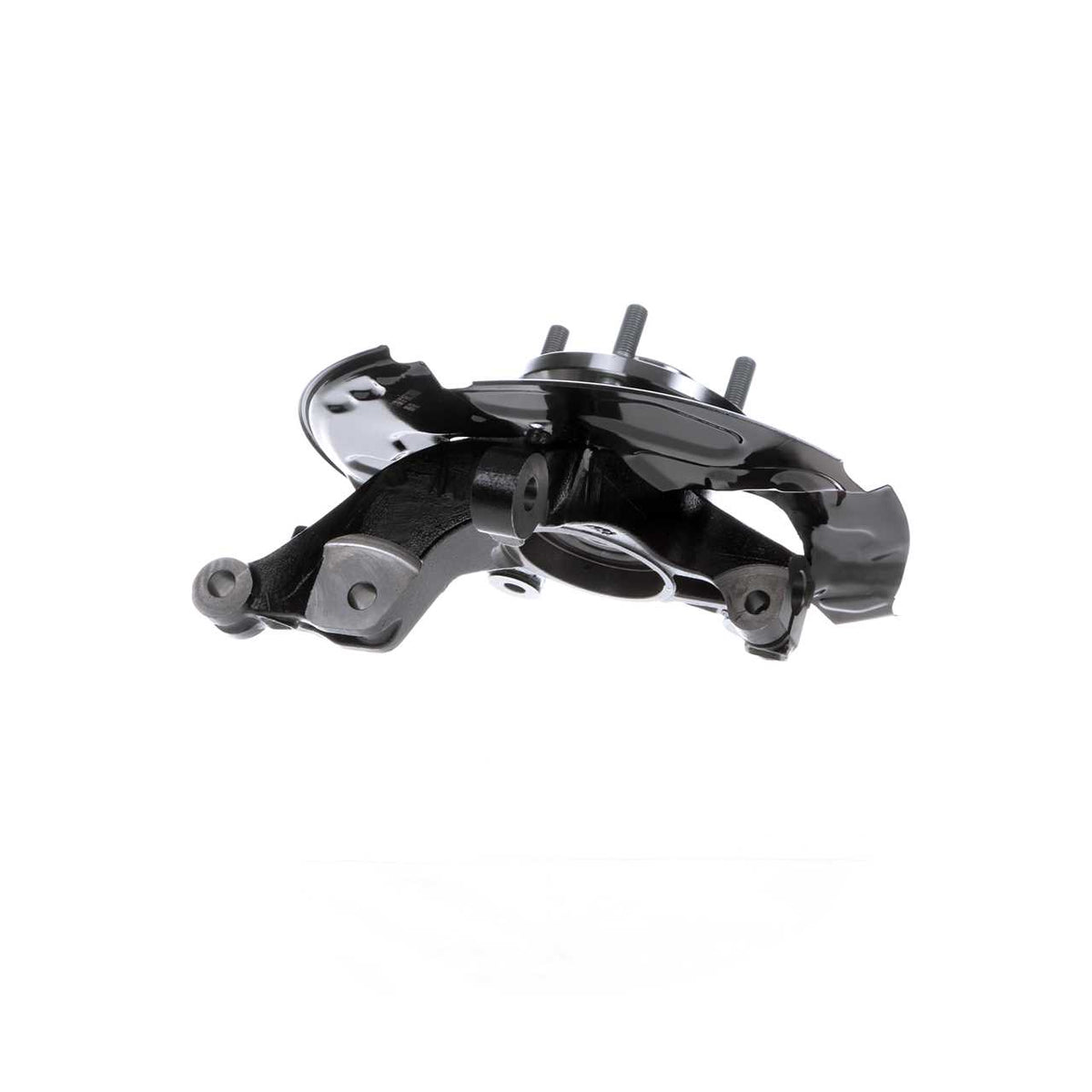

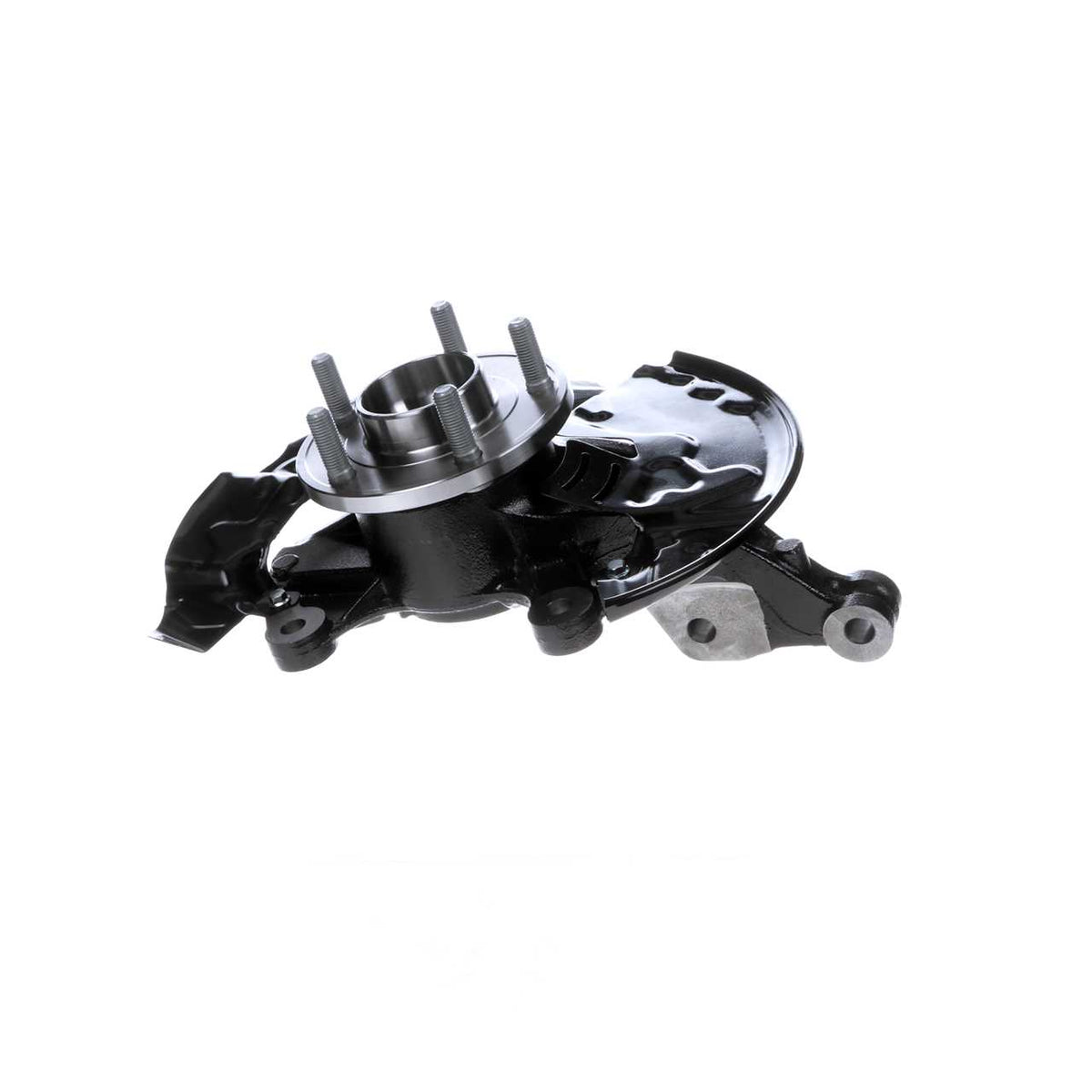

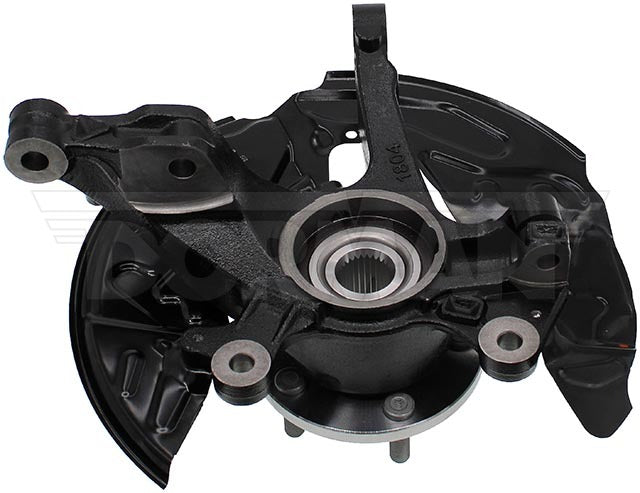

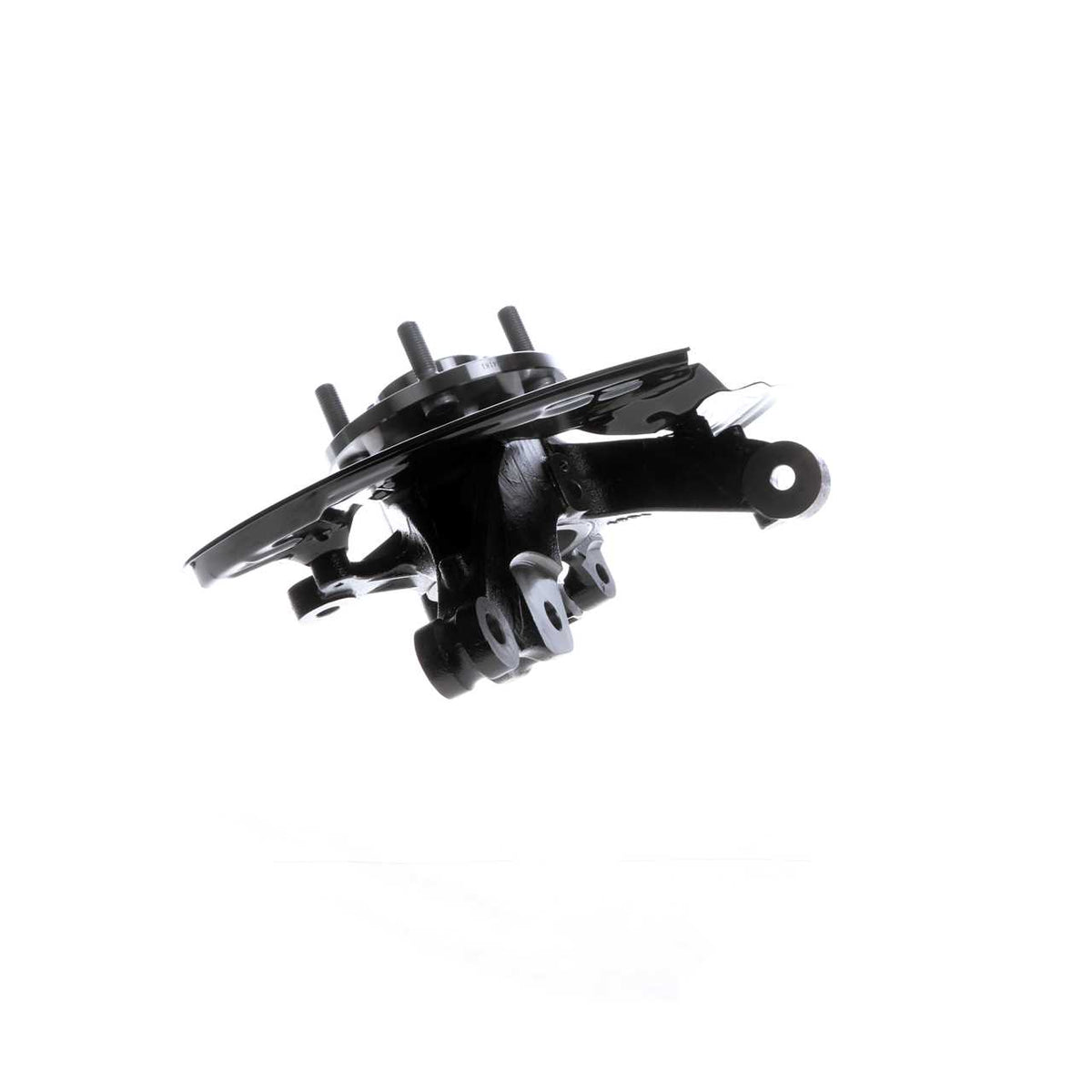

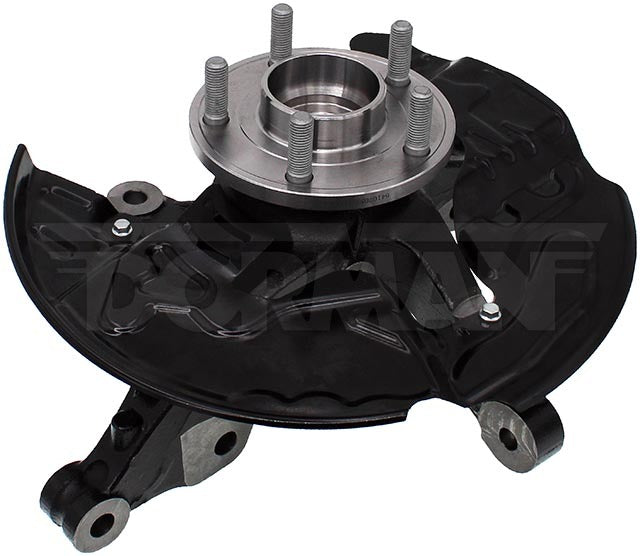

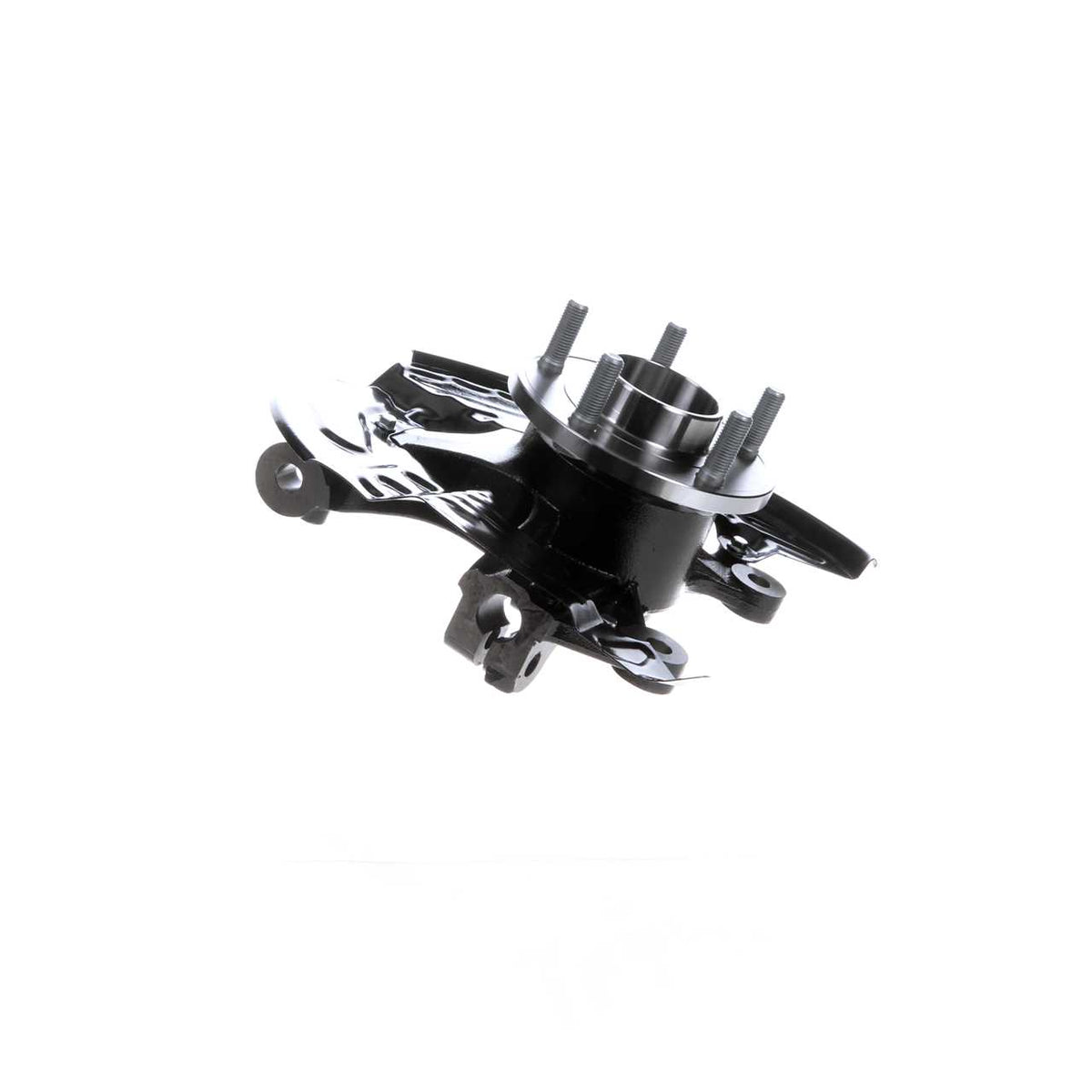

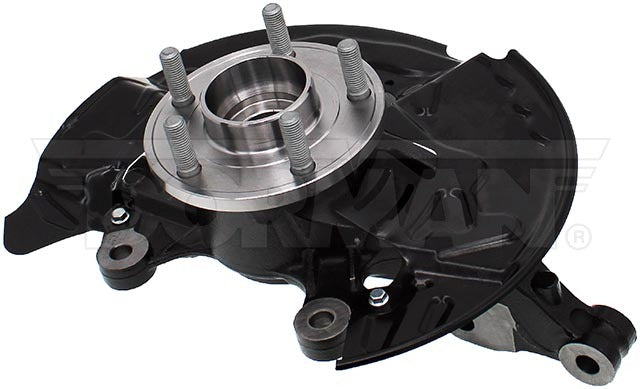

Dorman 686-438 Front Right Loaded Knuckle 20-24 Ford Escape LX6Z1215C
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$294.84
Select your vehicle at the top of the page to check fitment.
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
Fixing a worn wheel bearing would traditionally require a difficult procedure using a hydraulic press, or purchasing multiple components. This Dorman OE FIX loaded knuckle includes all critical components already assembled for a fast, simple, safe install. For repair shops, that makes it less likely that you will have a vehicle stuck in the service bay. For vehicle owners, that makes this formerly complex job requiring special equipment much easier.
- Pre-pressed assembly - this complete loaded knuckle kit includes all necessary components ready for installation right out of the box

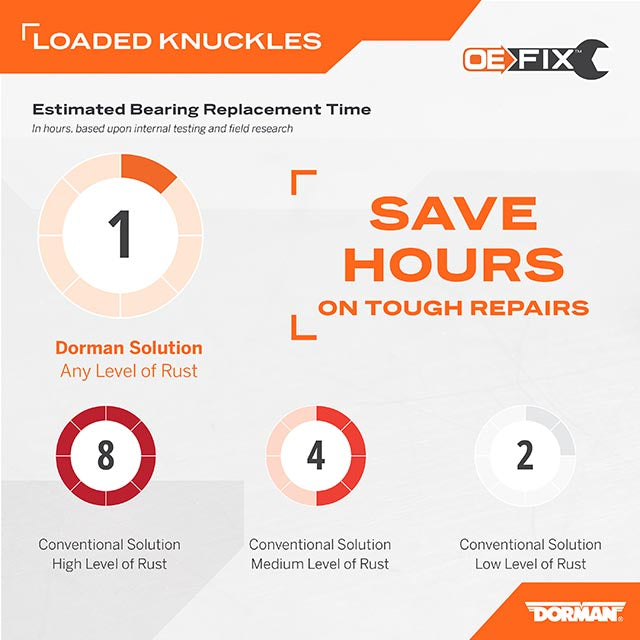

- Saves hours - eliminates the possibility of extended time spent wrestling with individual corroded components
- Simpler solution - no need for hydraulic press to perform complete bearing repair, making replacement faster and more predictable for both professionals and DIYers
- Quality engineering - designed in the United States and backed by a century of automotive aftermarket experience
Vehicle Fitment
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2020-2024 | Ford | Escape |
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | 686-438 |
| UPC | 194883217584 |
| Material | Cast Iron |
| Color | Black |
| Mounting Hardware Included | No |
| Finish | Painted |
| Instruction Manual Included | No |
| Hub Included | Yes |
| Axle Included | No |
| Grade Type | Standard Replacement |
| Anti Lock Braking System Type | Tone Ring |
| Axle Nut Included | Yes |
| Bearing Generation | Gen 1 |
| Bearing Type | Ball |
| Bolt Circle Diameter | 114 mm |
| Brake Pilot Diameter | 136 mm |
| Connector Included | No |
| Drive Type | Driven |
| Flange Bolt Hole Diameter | 12.35 mm |
| Flange Bolt Hole Quantity | 5 |
| Flange Bolts Included | Yes |
| Flange Diameter | 136 mm |
| Flange Quantity | 1 |
| Hub Pilot Diameter | 63.5 mm |
| Inside Diameter | 55.6 mm |
| Knuckle Bolt Circle Diameter | 114 mm |
| Knuckle Bolt Hole Size | 12.05 mm |
| Knuckle Bolt Hole Thread Type | Fine |
| Knuckle Bolt Thread Pitch | 1.75 mm |
| Knuckle Pilot Hole Diameter | 63.5 mm |
| Nut Included | Yes |
| Outside Diameter | 136 mm |

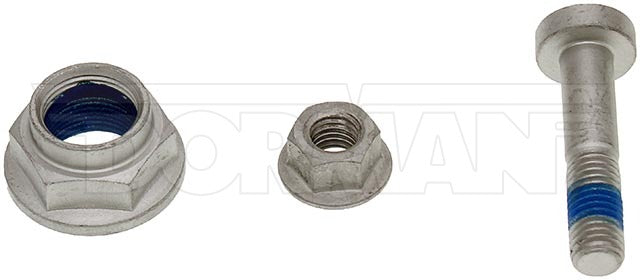

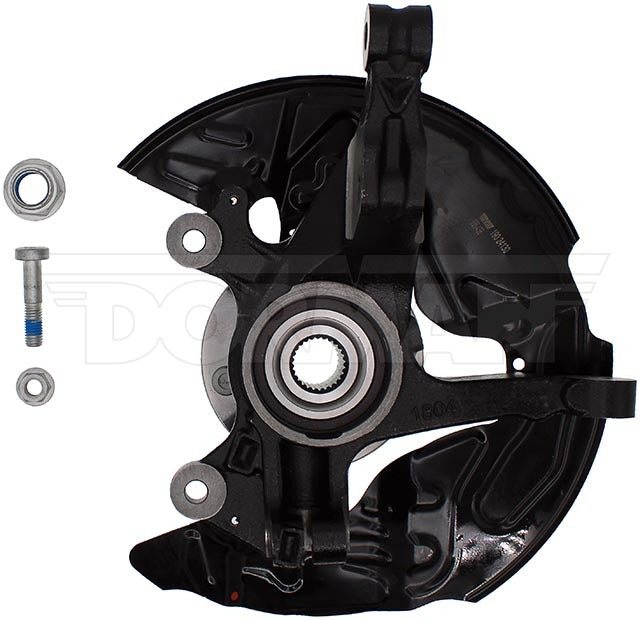

| Package Contents | 1 Loaded Knuckle; 1 Axle Nut; 1 Bolt; 1 Nut |
| Pre-Greased | Yes |
| Spline Quantity | 27 |
| Stud Thread Type | Fine |
| Thread Tolerance | -g/H |
| Wheel Bolt Thread Pitch | 1.5 mm |
| Wheel Pilot Diameter | 12 mm |
| Wheel Stud Quantity | 5 |
| Wheel Stud Size | 12 mm; 1.5 mm |
| Wheel Stud Thread Pitch | 1.5 mm |
| Wheel Studs Included | Yes |
| Width | 260 mm |
| Country of Origin | China |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| LX6Z1215C | Ford (OE) |
|---|---|
| LX6Z2K004D | Ford (OE) |
| LX6Z3K185B | Ford (OE) |
| LX6Z1215A | Ford (OE) |
| LX6Z3K185M | Ford (OE) |
| LX6Z1104B | Ford (OE) |
