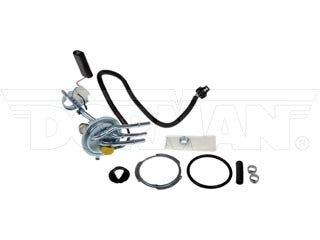

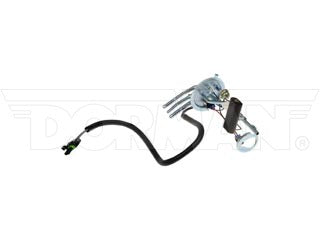

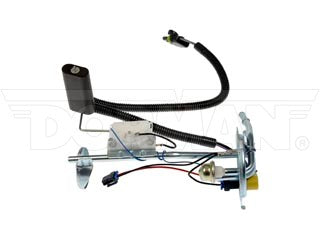

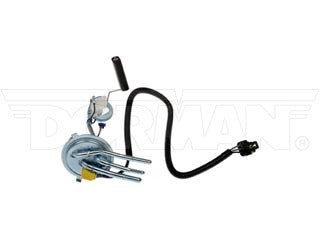

Dorman 692-257 Fuel Tank Sending Unit
Regular price
$100.05
Couldn't load pickup availability
Product Description
This fuel tank sending unit is designed to match the fit and function of the original unit on specified applications. Made of quality materials, it is engineered for reliable performance and durability.
- Direct replacement - this fuel tank sending unit is designed to match the fit and function of the original unit on specified applications
- Restores functionality - reliable replacement for an original part that has failed due to internal sensor failure
- Durable construction - this part is made from quality materials to ensure reliable performance and long service life
- Trustworthy quality - backed by team of product experts in the United States and more than a century of automotive experience
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 1987 | Buick | Regal | V6 231 3.8L (3800cc); 2BBL | ||
| 1987 | Oldsmobile | Cutlass Salon | V6 231 3.8L (3800cc); 2BBL | ||
| 1986 | Buick | Regal | V6 231 3.8L (3800cc); 2BBL | ||
| 1986 | Oldsmobile | Cutlass Salon | V6 231 3.8L (3800cc); 2BBL | ||
| 1986 | Pontiac | Bonneville | V6 231 3.8L (3800cc); 2BBL |
Product Specifications
| Adjustable Float Level: | Yes |
|---|---|
| Connector Color: | Black |
| Connector Gender: | Female |
| Connector Quantity: | 1 |
| Connector Shape: | Oval |
| Fuel Pump Included: | No |
| Gasket Or Seal Included: | Yes |
| Inlet Attachment Type: | Hose Barb |
| Inlet Diameter: | 6.5 mm; 5.5 mm |
| Inlet Fitting Thread Size: | No Thread |
| Inlet Quantity: | 2 |
| Length: | 195 mm |
| Lock Ring Included: | Yes |
| Ohms Empty: | 0 Ohms |
| Ohms Full: | 90 Ohms |
| Outlet Attachment Type: | Hose Barb |
| Outlet Diameter: | 4.5 mm |
| Outlet Fitting Thread Size: | No Thread |
| Outlet Quantity: | 1 |
| Outside Diameter: | 91 mm |
| Package Contents: | 1 Sending Unit; 1 Lock Ring; 1 Gasket |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Plug/Connector Type: | Female |
| Pump Included: | No |
| Resistance Ohms Empty: | 0 Ohms |
| Resistance Ohms Full: | 90 Ohms |
| Strainer Included: | Yes |
| Tank Seal Outside Diameter: | 92 mm |
| Terminal Quantity: | 3 |
| Terminal Type: | Pin |
| Vent Quantity: | 0 |
| Wire Colors: | Black; Red; Blue; Gray; Purple |
| Wire Gauge Measurement: | 16 ga.; 20 ga. |
| Wire Quantity: | 8 |
| Wiring Harness Included: | Yes |
| Wiring Harness Length: | 700 mm |
OE Numbers
| NON-DIRECT OE CROSS | |
|---|---|
| 6472765 | GENERAL MOTORS |
