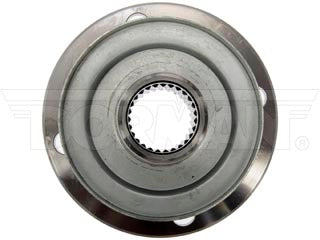

Dorman 697-533 Differential Pinion Flange
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$97.02
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
Product Description
A worn or damaged differential pinion flange can lead to driveline vibrations and fluid leaks. This part is designed to match the performance of the original equipment pinion flange on specified vehicles. It has been engineered to help restore a secure and reliable connection between the differential pinion and the drive shaft when the original flange is rusted, worn or damaged. It is made of rugged materials for reliable service and durability.
- Direct replacement - this differential pinion flange is designed to match the performance of the original equipment flange on specified vehicles
- Ideal solution - engineered to help restore a secure and reliable connection between the differential pinion and the drive shaft when the original flange is worn or damaged
- Durable construction - designed and manufactured to strict specifications for reliable performance
- Trustworthy quality - backed by a team of product experts in the United States and more than a century of automotive experience
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2021 | Toyota | Tacoma | Rear | Toyota 8 In. Ring Gear | |
| 2020 | Toyota | Tacoma | Rear | Toyota 8 In. Ring Gear | |
| 2019 | Toyota | Tacoma | Rear | Toyota 8 In. Ring Gear | |
| 2018 | Toyota | Tacoma | Rear | Toyota 8 In. Ring Gear | |
| 2017 | Toyota | Tacoma | Rear | Toyota 8 In. Ring Gear | |
| 2016 | Toyota | Tacoma | Rear | Toyota 8 In. Ring Gear | |
| 2009 | Lexus | GX470 | Rear | Toyota 8 In. Ring Gear | |
| 2009 | Toyota | 4Runner | Rear | Toyota 8 In. Ring Gear | |
| 2009 | Toyota | FJ Cruiser | Rear | Toyota 8 In. Ring Gear | |
| 2008 | Lexus | GX470 | Rear | Toyota 8 In. Ring Gear | |
| 2008 | Toyota | 4Runner | Rear | Toyota 8 In. Ring Gear | |
| 2008 | Toyota | FJ Cruiser | Rear | Toyota 8 In. Ring Gear | |
| 2007 | Lexus | GX470 | Rear | Toyota 8 In. Ring Gear | |
| 2007 | Toyota | 4Runner | Rear | Toyota 8 In. Ring Gear | |
| 2007 | Toyota | FJ Cruiser | Rear | Toyota 8 In. Ring Gear | |
| 2006 | Lexus | GX470 | Rear | Toyota 8 In. Ring Gear | |
| 2006 | Toyota | 4Runner | Rear | Toyota 8 In. Ring Gear | |
| 2005 | Lexus | GX470 | Rear | Toyota 8 In. Ring Gear | |
| 2005 | Toyota | 4Runner | Rear | Toyota 8 In. Ring Gear | |
| 2004 | Lexus | GX470 | Rear | Toyota 8 In. Ring Gear | |
| 2004 | Toyota | 4Runner | Rear | Toyota 8 In. Ring Gear | |
| 2003 | Lexus | GX470 | Rear | Toyota 8 In. Ring Gear | |
| 2003 | Toyota | 4Runner | Rear | Toyota 8 In. Ring Gear | |
| 2002 | Toyota | 4Runner | Rear | Toyota 8 In. Ring Gear | |
| 2001 | Toyota | 4Runner | Rear | Toyota 8 In. Ring Gear | |
| 2000 | Toyota | 4Runner | Rear | Toyota 8 In. Ring Gear | |
| 1999 | Toyota | 4Runner | Rear | Toyota 8 In. Ring Gear | |
| 1998 | Toyota | 4Runner | Rear | Toyota 8 In. Ring Gear | |
| 1997 | Toyota | 4Runner | Rear | Toyota 8 In. Ring Gear | |
| 1996 | Toyota | 4Runner | Rear | Toyota 8 In. Ring Gear | |
| 1995 | Isuzu | Pickup | Rear | Toyota 8 In. Ring Gear; w/Air Operated Locker | |
| 1995 | Nissan | Pickup | Rear | Toyota 8 In. Ring Gear; w/Air Operated Locker | |
| 1995 | Toyota | 4Runner | Rear | Toyota 8 In. Ring Gear; w/Air Operated Locker | |
| 1995 | Toyota | 4Runner | Rear | wo/Air Operated Locker; Toyota 8 In. Ring Gear; Only Fits Aftermarket Pinion | |
| 1995 | Toyota | Pickup | Rear | Toyota 8 In. Ring Gear; w/Air Operated Locker | |
| 1995 | Toyota | Pickup | Rear | wo/Air Operated Locker; Toyota 8 In. Ring Gear; Only Fits Aftermarket Pinion | |
| 1994 | Isuzu | Pickup | Rear | Toyota 8 In. Ring Gear; w/Air Operated Locker | |
| 1994 | Nissan | Pickup (Mexico) | Rear | Toyota 8 In. Ring Gear; w/Air Operated Locker | |
| 1994 | Toyota | 4Runner | Rear | Toyota 8 In. Ring Gear; w/Air Operated Locker | |
| 1994 | Toyota | 4Runner | Rear | wo/Air Operated Locker; Toyota 8 In. Ring Gear; Only Fits Aftermarket Pinion | |
| 1994 | Toyota | Pickup | Rear | Toyota 8 In. Ring Gear; w/Air Operated Locker | |
| 1994 | Toyota | Pickup | Rear | wo/Air Operated Locker; Toyota 8 In. Ring Gear; Only Fits Aftermarket Pinion | |
| 1993 | Isuzu | Pickup | Rear | Toyota 8 In. Ring Gear; w/Air Operated Locker | |
| 1993 | Nissan | Pickup (Mexico) | Rear | Toyota 8 In. Ring Gear; w/Air Operated Locker | |
| 1993 | Toyota | 4Runner | Rear | Toyota 8 In. Ring Gear; w/Air Operated Locker | |
| 1993 | Toyota | 4Runner | Rear | wo/Air Operated Locker; Toyota 8 In. Ring Gear; Only Fits Aftermarket Pinion | |
| 1993 | Toyota | Pickup | Rear | Toyota 8 In. Ring Gear; w/Air Operated Locker | |
| 1993 | Toyota | Pickup | Rear | wo/Air Operated Locker; Toyota 8 In. Ring Gear; Only Fits Aftermarket Pinion | |
| 1992 | Isuzu | Pickup | Rear | Toyota 8 In. Ring Gear; w/Air Operated Locker | |
| 1992 | Nissan | Pickup (Mexico) | Rear | Toyota 8 In. Ring Gear; w/Air Operated Locker |
Product Specifications
| Bearing Cap(s) Included: | No |
|---|---|
| Bearing Strap(s) Included: | No |
| Cover Bolt Quantity: | 12 |
| Flange Length: | 57 mm |
| Flange Material: | Steel |
| Flange Outside Diameter: | 113.7 mm |
| Flange Thickness: | 7 mm |
| Flanged End: | Yes |
| Grade Type: | Regular |
| Mounting Hole Diameter: | 10.25 mm; 8.20 mm; 11.30 mm |
| Package Contents: | 1 Pinion Yoke; 1 Dust Shield |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Selling Package Quantity UOM: | Piece |
| Spline Count: | 27 |
| Spline Inside Diameter: | 26 mm |
| Width: | 113.7 mm |
