Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$280.84
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
Product details
- SKU 591|698430
- Barcode 0
Share this item!
Product Description

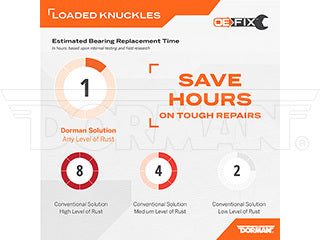

Fixing a worn wheel bearing would traditionally require a difficult procedure using a hydraulic press, or purchasing multiple components. This Dorman OE FIX loaded knuckle includes all critical components already assembled for a fast, simple, safe install. For repair shops, that makes it less likely that you will have a vehicle stuck in the service bay. For vehicle owners, that makes this formerly complex job requiring special equipment much easier.
- Pre-pressed assembly - this complete loaded knuckle kit includes all necessary components ready for installation right out of the box
- Saves hours - eliminates the possibility of extended time spent wrestling with individual corroded components
- Simpler solution - no need for hydraulic press to perform complete bearing repair, making replacement faster and more predictable for both professionals and DIYers
- Quality engineering - designed in the United States and backed by a century of automotive aftermarket experience
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2017 | Toyota | Sienna | FWD | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2016 | Toyota | Sienna | FWD | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2015 | Toyota | Sienna | FWD | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2014 | Toyota | Sienna | FWD | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2013 | Toyota | Sienna | FWD; V6 3.5L (3456cc) | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2012 | Toyota | Sienna | FWD; V6 3.5L (3456cc) | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2011 | Toyota | Sienna | FWD; V6 3.5L (3456cc) | Front Right | Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
Product Specifications
| Anti Lock Brake Sensor Included: | No |
|---|---|
| Anti Lock Braking System: | Yes |
| Anti Lock Braking System Type: | Sensor |
| Axle Included: | No |
| Bolt Circle Diameter: | 100 mm |
| Brake Pilot Diameter: | 65 mm |
| Color: | Black |
| Connector Quantity: | 0 |
| Connector Terminal Quantity: | 0 |
| Finish: | Painted |
| Flange Bolt Hole Diameter: | 100 mm |
| Flange Bolt Hole Quantity: | 5 |
| Flange Bolts Included: | Yes |
| Flange Diameter: | 126.8 mm |
| Flange Included: | Yes |
| Flange Offset: | 44.7 mm |
| Flange Shape: | Circular |
| Grade Type: | Standard |
| Hub Included: | Yes |
| Hub Pilot Diameter: | 40 mm |
| Instruction Manual Included: | No |
| Material: | Steel |
| Mounting Hardware Included: | No |
| Package Contents: | 1 load Knuckle |
| Package Contents: | 1 Loaded Knuckle; 1 Axle Nut |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Selling Package Quantity UOM: | Piece |
| Spline Quantity: | 30 |
| Spline Quantity: | 36 |
| Wheel Pilot Diameter: | 57 mm |
| Wheel Stud Quantity: | 5 |
| Wheel Stud Size: | M14-1.5 |
| Wheel Studs Included: | Yes |
OE Numbers
| NON-DIRECT OE CROSS | |
|---|---|
| 4321108030 | TOYOTA |
| 4350208030 | TOYOTA |
| 477030T010 | TOYOTA |
| 9036945006 | TOYOTA |
| 90369A0002 | TOYOTA |
