Dorman 698-465 Steering - Knuckle Kit
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$259.53
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
Product Description

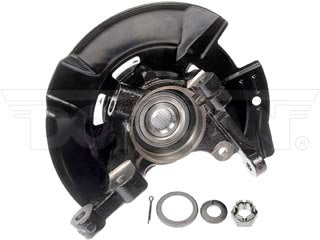

Fixing a worn wheel bearing would traditionally require a difficult procedure using a hydraulic press, or purchasing multiple components. This Dorman OE FIX loaded knuckle includes all critical components already assembled for a fast, simple, safe install. For repair shops, that makes it less likely that you will have a vehicle stuck in the service bay. For vehicle owners, that makes this formerly complex job requiring special equipment much easier.
- Pre-pressed assembly - this complete loaded knuckle kit includes all necessary components ready for installation right out of the box

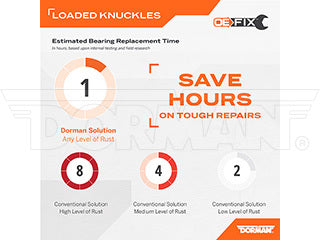

- Saves hours - eliminates the possibility of extended time spent wrestling with individual corroded components
- Simpler solution - no need for hydraulic press to perform complete bearing repair, making replacement faster and more predictable for both professionals and DIYers
- Quality engineering - designed in the United States and backed by a century of automotive aftermarket experience
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2013 | Hyundai | Sonata | L4 2.4L (2359cc) | Front Left | wo/Sport Suspension; Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2012 | Hyundai | Sonata | L4 2.4L (2359cc) | Front Left | wo/Sport Suspension; Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
| 2011 | Hyundai | Sonata | L4 2.4L (2359cc) | Front Left | wo/Sport Suspension; Loaded Knuckle; Includes Hub, Bearing, and Dust Shield |
Product Specifications
| Anti Lock Brake Sensor Included: | No |
|---|---|
| Anti Lock Braking System: | Yes |
| Anti Lock Braking System Type: | Sensor |
| Axle Included: | No |
| Axle Nut Included: | Yes |
| Bearing Generation: | Gen 1 |
| Bearing Type: | Ball |
| Bolt Circle Diameter: | 114.3 mm |
| Brake Pilot Diameter: | 69 mm |
| Color: | Black |
| Connector Quantity: | 0 |
| Connector Terminal Quantity: | 0 |
| Drive Type: | Driven |
| Finish: | Painted |
| Flange Bolt Hole Diameter: | 114.3 mm |
| Flange Bolt Hole Quantity: | 5 |
| Flange Bolts Included: | Yes |
| Flange Diameter: | 137 mm |
| Flange Included: | Yes |
| Flange Offset: | 18 mm |
| Flange Quantity: | 1 |
| Flange Shape: | Circular |
| Grade Type: | Standard Replacement |
| Hub Included: | Yes |
| Hub Pilot Diameter: | 45 mm |
| Inside Diameter: | 28.8 mm |
| Instruction Manual Included: | No |
| Knuckle Bolt Circle Diameter: | 114.3 mm |
| Knuckle Bolt Hole Size: | 14.4 mm |
| Knuckle Bolt Hole Thread Type: | Fine |
| Knuckle Bolt Thread Pitch: | 1.5 mm |
| Knuckle Pilot Hole Diameter: | 84 mm |
| Material: | Cast Iron |
| Mounting Hardware Included: | No |
| Nut Included: | Yes |
| Outside Diameter: | 102 mm |
| Package Contents: | 1 Loaded Knuckle; 1 Castle Nut; 1 Cotter Pin; 2 Washers |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Pre-Greased: | No |
| Selling Package Quantity UOM: | Piece |
| Spline Quantity: | 27 |
| Stud Thread Type: | Fine |
| Thread Tolerance: | -g/H |
| Wheel Bolt Thread Pitch: | 1.5 mm |
| Wheel Pilot Diameter: | 67 mm |
| Wheel Stud Quantity: | 5 |
| Wheel Stud Size: | M12-1.5 |
| Wheel Stud Thread Pitch: | 1.5 mm |
| Wheel Studs Included: | Yes |
| Width: | 295 mm |
OE Numbers
| NON-DIRECT OE CROSS | |
|---|---|
| 517153R010 | HYUNDAI |
| 5172038110 | HYUNDAI |
| 5175039603 | HYUNDAI |
| 517553R000 | HYUNDAI |
