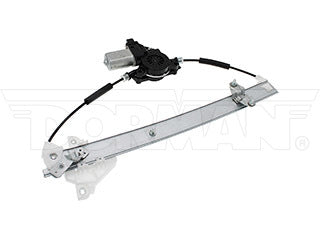

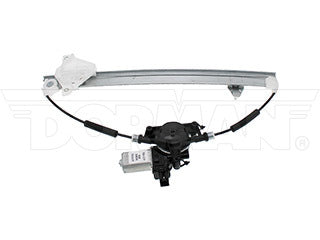

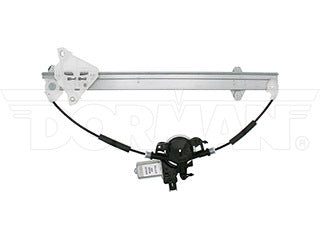

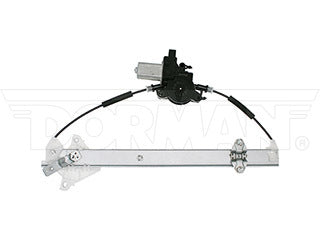

Dorman 751-127 Window Regulator and Lift Motor Assembly
Regular price
$66.94
Couldn't load pickup availability
Product Description
This replacement power window motor and regulator assembly is precision-engineered and extensively tested to match the exact fit, function and performance of the stock window regulator on specific vehicle years, makes and models.
- Trustworthy replacement - engineered and tested to match the fit, function and performance of the original window regulator on specified vehicles
- Quality assured - extensively tested by cycling thousands of times in an actual vehicle door to ensure a long, trouble-free service life
- Easy installation - reverse-engineered to match the original equipment shape and dimensions to provide a direct, seamless fit
- Reliable design - engineered in North America and backed by long history of automotive aftermarket experience
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2018 | Mazda | 3 | Front Left | ||
| 2018 | Mazda | 3 Sport | Front Left | Built in Japan | |
| 2017 | Mazda | 3 | Front Left | ||
| 2017 | Mazda | 3 Sport | Front Left | Built in Japan | |
| 2016 | Mazda | 3 | Front Left | ||
| 2016 | Mazda | 3 Sport | Front Left | ||
| 2015 | Mazda | 3 | Front Left | ||
| 2015 | Mazda | 3 Sport | Front Left | ||
| 2014 | Mazda | 3 | Front Left | ||
| 2014 | Mazda | 3 Sport | Front Left |
Product Specifications
| Anti-Pinch Motor: | No |
|---|---|
| Attachment Type: | Bolt |
| Belt Included: | No |
| Belt Length: | 0 in |
| Belt Tooth Quantity: | 0 |
| Cable Regulator: | Yes |
| Electric/Manual: | Electric |
| Express Up Or Down: | Down |
| Frame Material: | Steel |
| Gear Tooth Quantity: | 0 |
| Glass Type: | Safety |
| Hardwired Or Plug-In: | Plug-In |
| Housing Material: | Metal; Plastic |
| Installation Instructions Included: | No |
| Material: | Metal; Plastic |
| Maximum Lift Height: | 390 mm |
| Maximum Width: | 6 in |
| Micro-Controlled (Embedded Logic): | No |
| Motor Included: | Yes |
| Mounting Hardware Included: | No |
| Mounting Hole Quantity: | 8 |
| Mounting Method: | Bolt On |
| Mounting Position: | Front Left |
| Operation Type: | Automatic (Down) |
| Package Contents: | 1 Power Window Regulator; 1 Window Lift Motor |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Regulator Included: | No |
| Terminal Quantity: | M6 -1.0 |
| Voltage: | 12 VDC |
| Window Operation Type: | Automatic (Down) |
| Wire Quantity: | 0 |
| Wiring Harness Included: | No |
| Wiring Harness Length: | 0 in |
| FMVSS (Federal Motor Vehicle Safety Standards) Compliant: | Yes |
OE Numbers
| NON-DIRECT OE CROSS | |
|---|---|
| BHN9-59-58X | MAZDA |
| BHN9-59-590A | MAZDA |
