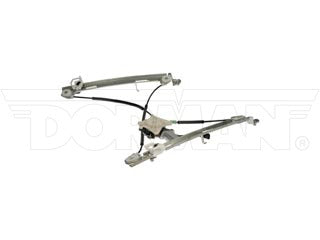

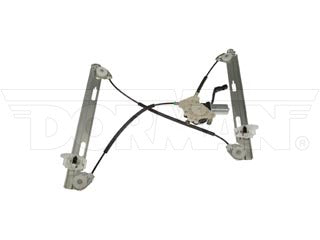

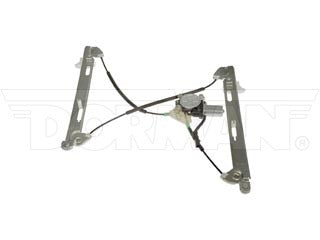

Dorman 751-316 Window Regulator and Lift Motor Assembly
Regular price
$31.58
Couldn't load pickup availability
Product Description
This replacement power window motor and regulator assembly is precision-engineered and extensively tested to match the exact fit, function and performance of the stock window regulator on specific vehicle years, makes and models.
- Trustworthy replacement - engineered and tested to match the fit, function and performance of the original window regulator on specified vehicles
- Quality assured - extensively tested by cycling thousands of times in an actual vehicle door to ensure a long, trouble-free service life
- Easy installation - reverse-engineered to match the original equipment shape and dimensions to provide a direct, seamless fit
- Reliable design - engineered in North America and backed by long history of automotive aftermarket experience
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2017 | Jeep | Compass | MK Body Code | Front Left | |
| 2016 | Jeep | Compass | Front Left | ||
| 2015 | Jeep | Compass | Front Left | ||
| 2014 | Jeep | Compass | Front Left | ||
| 2013 | Jeep | Compass | Front Left | ||
| 2012 | Jeep | Compass | Front Left | ||
| 2011 | Jeep | Compass | Front Left | ||
| 2010 | Jeep | Compass | Front Left | ||
| 2009 | Jeep | Compass | Front Left | ||
| 2008 | Jeep | Compass | Front Left | ||
| 2007 | Jeep | Compass | Front Left |
Product Specifications
| Anti-Pinch Motor: | No |
|---|---|
| Attachment Type: | Bolt |
| Belt Included: | No |
| Electric/Manual: | Electric |
| Express Up Or Down: | Non-Express |
| Frame Material: | Metal |
| Gear Material: | Plastic |
| Gear Tooth Quantity: | 31 |
| Glass Type: | Safety |
| Hardwired Or Plug-In: | Plug-In |
| Installation Instructions Included: | No |
| Material: | Steel; Plastic |
| Maximum Lift Height: | 500 mm |
| Maximum Width: | 30 mm |
| Micro-Controlled (Embedded Logic): | No |
| Mounting Hardware Included: | No |
| Mounting Hole Quantity: | 4 |
| Package Contents: | 1 Power Window Motor and Regulator Assembly |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Terminal Quantity: | 2 |
| Wire Quantity: | 2 |
| Wiring Harness Included: | Yes |
| Wiring Harness Length: | 4 in |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 68002896AA | CHRYSLER |
| NON-DIRECT OE CROSS | |
|---|---|
| 68002899AA | CHRYSLER |
