Dorman 819-824 Rear Flexible Braided Stainless Steel Fuel Line 89-95 GMC K1500
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$320.99
Select your vehicle at the top of the page to check fitment.
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.

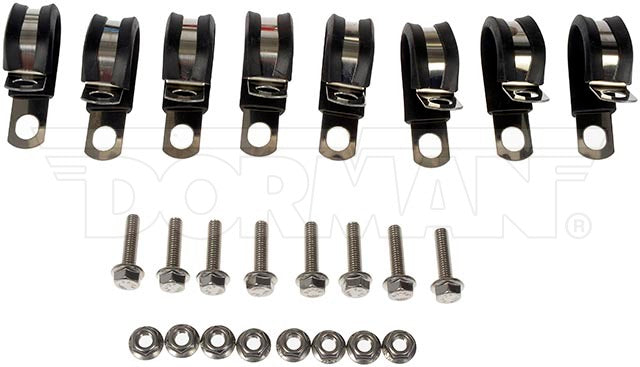

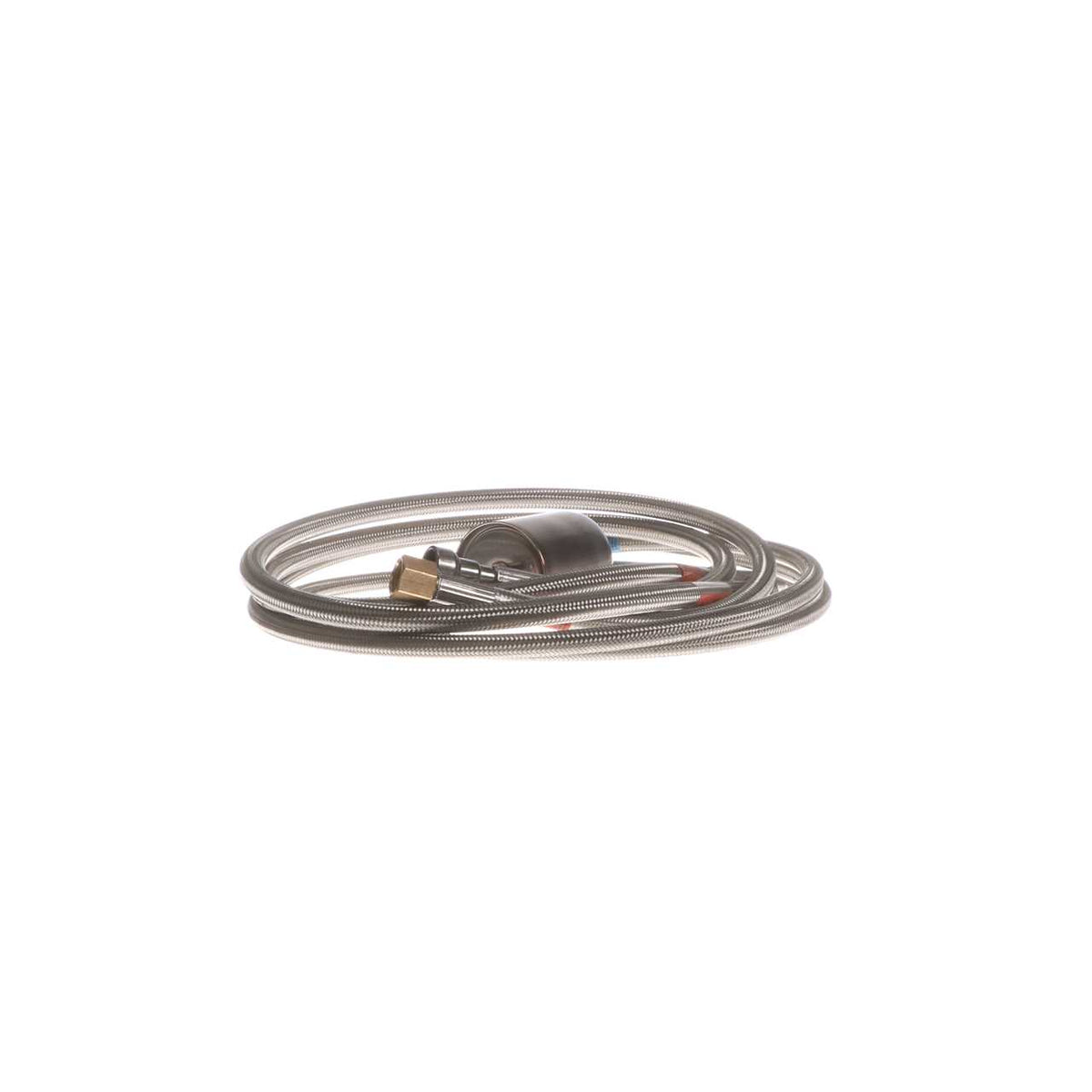

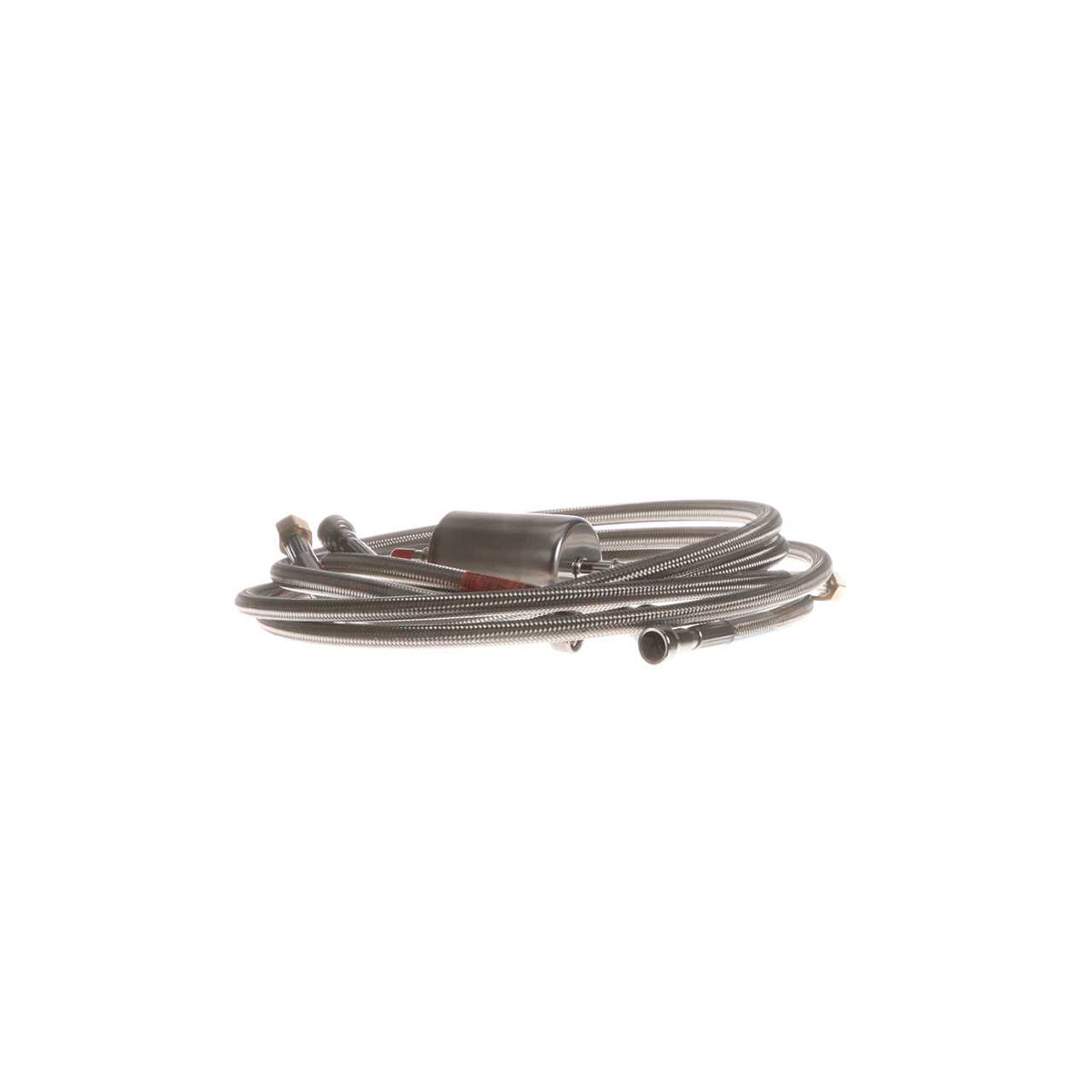

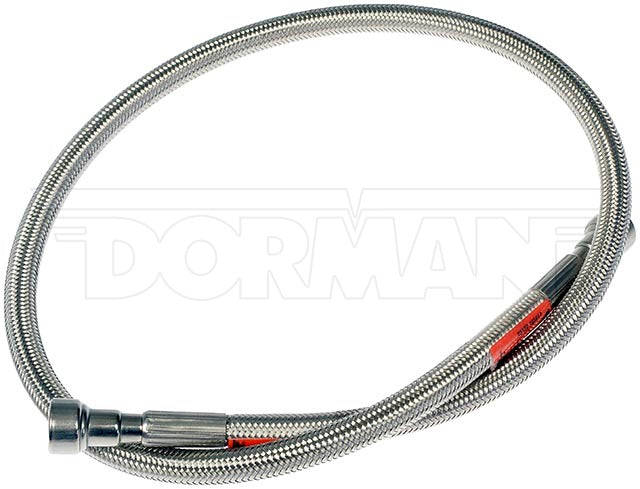

Need to replace some fuel lines? Factory-style rigid replacement fuel lines can be tough to route under the vehicle. These Dorman OE FIX lines are made of braided stainless steel over flexible PTFE tubing, made to specific length for select vehicles, with new brackets and factory connectors for the easiest possible installation, and a long-lasting fix.

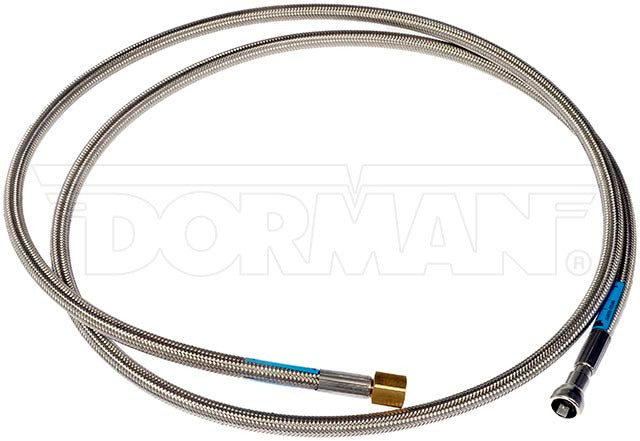

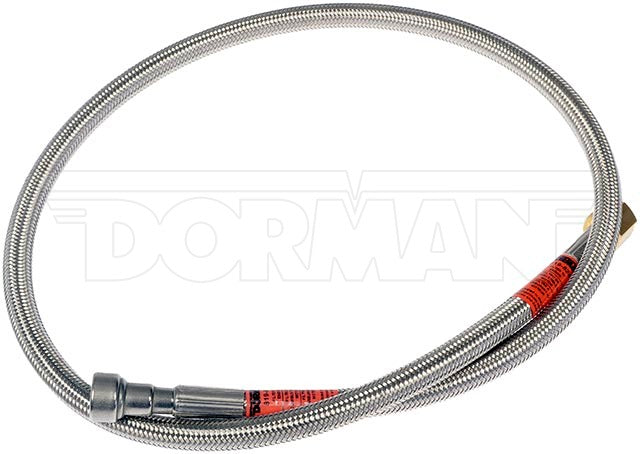

- Ready to install - these braided stainless steel over PTFE flexible fuel lines are already cut to specific length for select vehicles, and include new brackets and factory connectors
- Full length - these lines are made to the correct length for the specified vehicle, but flexible so they're easier to route than rigid lines, saving replacement time
- Upgraded materials - high-strength, corrosion-resistant braided stainless steel protects PTFE hoses for reliable longevity under all conditions
- Trustworthy quality - engineered in the United States and backed by more than a century of aftermarket manufacturing expertise
Vehicle Fitment
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1989-1995 | Chevrolet | K1500 | Rear | Braided Stainless Steel Line; Feed and Return |
| 1989-1995 | Chevrolet | K2500 | Rear | Braided Stainless Steel Line; Feed and Return |
| 1989-1995 | GMC | K1500 | Rear | Braided Stainless Steel Line; Feed and Return |
| 1989-1995 | GMC | K2500 | Rear | Braided Stainless Steel Line; Feed and Return |
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | 819-824 |
| UPC | 194883676381 |
| Placement | Rear |
| Material | Stainless Steel; PTFE |
| Length | 37 in.; 40.5 in.; 77.5 in.; 14 in.; 10.5 in. |
| Color | Silver |
| Inside Diameter | 0.3125 mm; 0.375 mm |
| Outside Diameter | 13.5 mm; 12 mm |
| Maximum Pressure | 75 |
| Grade Type | Standard Replacement |
| End 1 Hose Connector Type | Female Quick Connect; Male Quick Connect; Female Thread; Male Thread |
| End 2 Hose Connector Type | Female Quick Connect; Male Quick Connect; Female Thread; Male Thread |
| Hose Attachment End 1 | Female Quick Connect |
| Hose Attachment End 2 | Male Quick Connect |
| Item Grade | Standard |

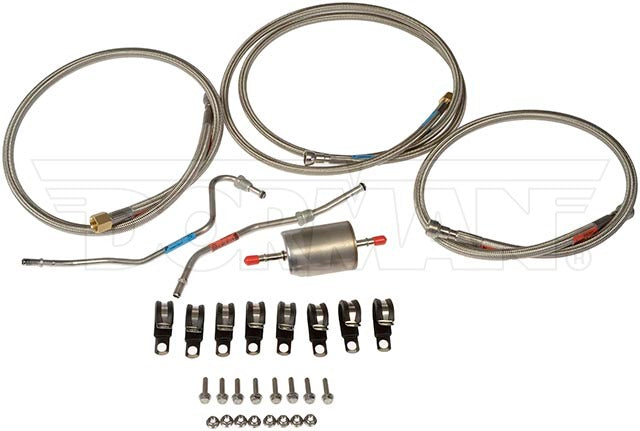

| Package Contents | 1 Flexible Fuel Line Kit |
| Pressure Rated for Fuel Injection | No |
| Country of Origin | United States |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| 15695619 | General Motors (OE) |
|---|---|
| 15722291 | General Motors (OE) |
| 15695620 | General Motors (OE) |
| 15538583 | General Motors (OE) |
| 15722292 | General Motors (OE) |
