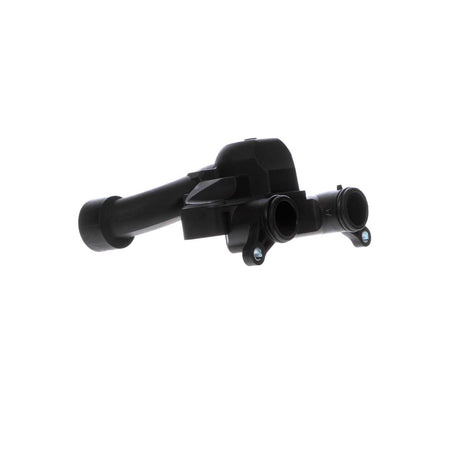

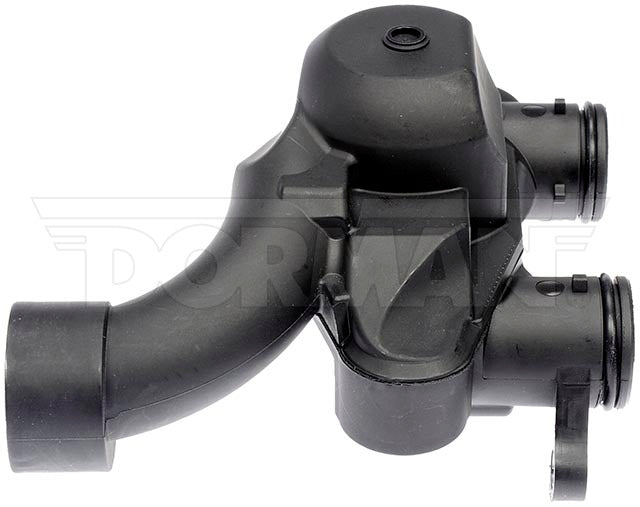

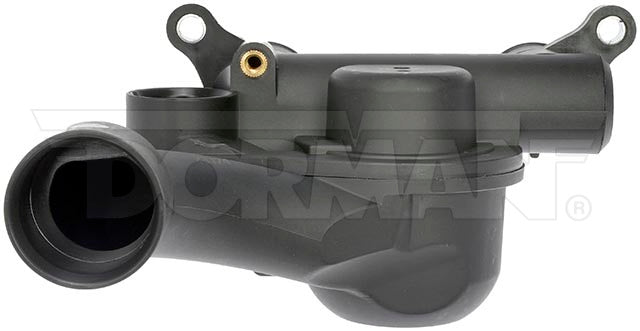

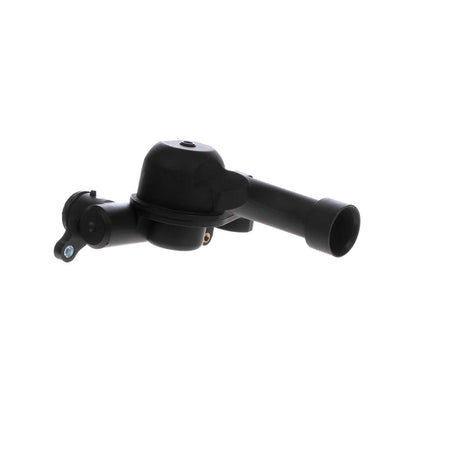

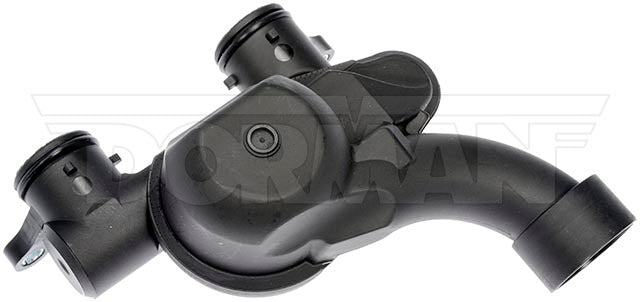

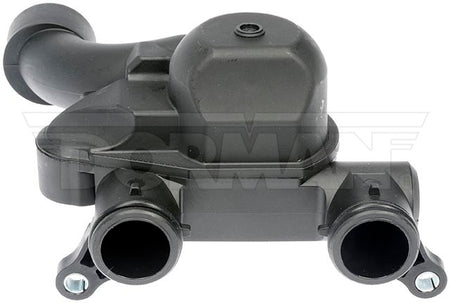

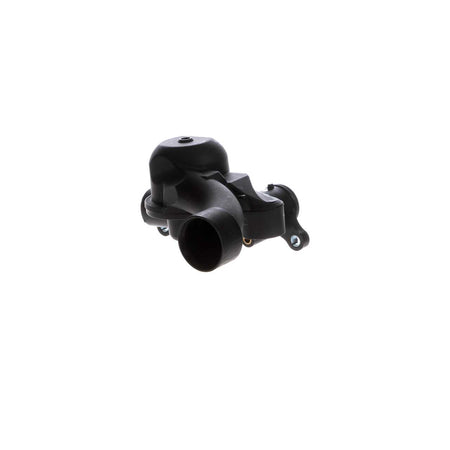

Dorman 902-687 Coolant Water Outlet 16-19 Land Rover Range Rover Sport
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$104.43
Select your vehicle at the top of the page to check fitment.
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
This replacement engine coolant water outlet is engineered to match the fit and durability of the stock engine coolant water outlet on specified vehicles. It is designed to withstand extreme temperature changes to extend service life.
- Ideal replacement - this engine coolant water outlet directly replaces the original water outlet on specified vehicle years, makes and models
- Durable construction - this part is specifically designed to withstand extreme temperature changes and resist cracking and leaking
- Cost-effective and reliable - offers original manufacturer quality at lower cost than getting replacement at dealer
- Industry-leading design - professionally engineered by the aftermarket leader in replacement water outlets
Vehicle Fitment
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2018 | Land Rover | Range Rover | 5.0L V8 | |
| 2019 | Land Rover | Range Rover Sport | ||
| 2016-2017 | Land Rover | Range Rover Sport | 5.0L V8 |
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | 902-687 |
| UPC | 194883655058 |
| Material | Plastic |
| Color | Black |
| Inside Diameter | 1 in. |
| Bolt Hole Quantity | 2 |
| Type | Coolant Water Outlet |
| Mounting Hardware Included | No |
| Height | 7 in. |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 2 |
| Inlet Quantity | 2 |
| Outlet Inside Diameter | 1.45 in. |
| Outlet Quantity | 2 |
| Gasket Type | O-Ring |
| Fitting Angle | 90 |
| Mounting Hole Diameter | 0.282 in. |
| Outlet Outside Diameter | 1.5 in. |
| Maximum Height | 7 in. |
| Inlet Port Outside Diameter | 1.292 in. |
| Inlet Port Inside Diameter | 0.950 in. |
| Universal Or Specific Fit | Specific |
| Grade Type | Standard Replacement |
| Gasket Quantity | 2; 0 |
| Bolt Hole Center To Bolt Hole Center | 3 in. |
| Length | 2 in. |
| Outlet Tube Length | 3 in.; 1 in. |
| Air Vent (Bleeder Valve) | No |
| Gasket Or Seal Material | Rubber |
| Sensor Port Count | 0 |
| Bypass Holes | No |
| Bolts Included | No |
| Package Quantity | 0 |
| Housing Neck Angle (°) | 90 deg |
| O Rings Included | Yes |
| Outlet Diameter (in) | 1.5 in |
| Package Contents | 1 Water Outlet; 2 O-Rings |
| Sensor Included | No |
| Country of Origin | China |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| LR100352 | Interchange |
|---|
