Dorman 904-274 Exhaust Gas Recirculation (EGR) Cooler
Regular price
$302.50
Couldn't load pickup availability
Product Description
The original EGR cooler for certain vehicles features a fin design that is prone to clogging. Dorman's OE FIX EGR cooler modifies the OE design by using spiral tubes that are optimized to cool exhaust gas efficiently and reduce clogging.
- Improved reliability - this replacement EGR cooler features a spiral tube design, reducing clogging experienced with the original manufacturer's design
- Superior durability - precision-engineered using welded stainless steel for long service life
- Rigorously tested - heat transfer testing, burst testing and vehicle try-on testing ensures fit and reliability
- Hardware included - all necessary O-rings, gaskets, and application-specific hardware included
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2010 | Ford | F-250 Super Duty | V8 391 6.4L | Vertically Mounted | |
| 2010 | Ford | F-350 Super Duty | V8 391 6.4L | Vertically Mounted | |
| 2010 | Ford | F-450 Super Duty | V8 391 6.4L | Vertically Mounted | |
| 2010 | Ford | F-550 Super Duty | V8 391 6.4L | Vertically Mounted | |
| 2009 | Ford | F-250 Super Duty | V8 391 6.4L | Vertically Mounted | |
| 2009 | Ford | F-350 Super Duty | V8 391 6.4L | Vertically Mounted | |
| 2009 | Ford | F-450 Super Duty | V8 391 6.4L | Vertically Mounted | |
| 2009 | Ford | F-550 Super Duty | V8 391 6.4L | Vertically Mounted | |
| 2008 | Ford | F-250 Super Duty | V8 391 6.4L | Vertically Mounted | |
| 2008 | Ford | F-350 Super Duty | V8 391 6.4L | Vertically Mounted | |
| 2008 | Ford | F-450 Super Duty | V8 391 6.4L | Vertically Mounted | |
| 2008 | Ford | F-550 Super Duty | V8 391 6.4L | Vertically Mounted |
Product Specifications
| California Air Resources Board (CARB) Certified: | Yes |
|---|---|
| CARB Executive Order Number: | D-740-3 |
| Color: | Metallic Gray |
| End 1 Mount Hole Quantity: | 2 |
| End 1 Type: | Flange |
| End 2 Mount Hole Quantity: | 2 |
| End 2 Type: | Flange |
| Flanged: | Yes |
| Gasket Or Seal Included: | Yes |
| Gasket Or Seal Required: | Yes |
| Grade Type: | Standard Replacement |
| Heat Exchanger Type: | Tube |
| Inlet Inside Diameter (in): | 1.5 in |
| Material: | Stainless Steel |
| Mounting Hole Diameter: | 9.25 mm |
| Outlet Inside Diameter (in): | 1.5 in |
| Overall Height: | 22.03 in |
| Overall Length: | 23 in |
| Overall Width: | 3 in |

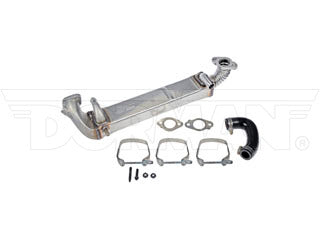

| Package Contents: | 1 EGR Cooler; 2 Gaskets; 3 V-Band Clamps; 1 Hose; 2 Bolts |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Universal Or Specific Fit: | Specific |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 8C3Z9P456A | FORD MOTOR COMPANY |
