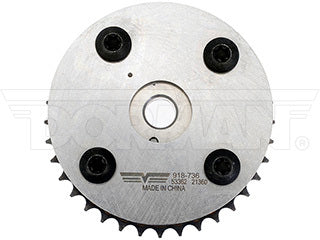

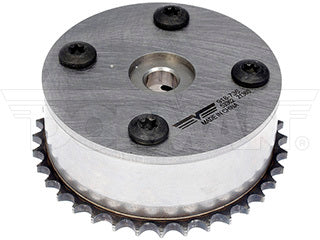

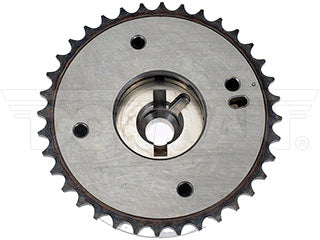

Dorman 918-736 Engine Variable Valve Timing (VVT) Sprocket
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$147.67
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
Product Description
The variable valve timing sprocket is key to ensuring an engine's performance and clean running. Replace a worn factory VVT sprocket with this quality engineered sprocket to restore lost performance. Designed to install and perform like the original.
- Direct replacement - this VVT sprocket fits and performs like the original sprocket
- Durable construction - made from durable steel and precision machined for reliable performance
- 100% new - this variable valve timing sprocket is entirely new, not a remanufactured part
- Quality assured - vehicle-specific application has been validation tested to ensure quality
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2003 | Toyota | Camry | L4 2.4L (2362cc); Engine Desg. 2AZ-FE | Intake | |
| 2003 | Toyota | Highlander | L4 2.4L (2362cc) | Intake | |
| 2003 | Toyota | RAV4 | L4 122 2.0L (1998cc) | Intake | |
| 2002 | Toyota | Camry | L4 2.4L (2362cc); Engine Desg. 2AZ-FE | Intake | |
| 2002 | Toyota | Highlander | L4 2.4L (2362cc) | Intake | |
| 2002 | Toyota | RAV4 | L4 122 2.0L (1998cc) | Intake | |
| 2002 | Toyota | Solara | L4 2.4L (2362cc) | Intake | |
| 2001 | Toyota | Highlander | L4 2.4L (2362cc) | Intake | |
| 2001 | Toyota | RAV4 | L4 122 2.0L (1998cc) | Intake |
Product Specifications
| Attachment Type: | Bolt On |
|---|---|
| Body Diameter: | 3.27 mm |
| Bolt Included: | Yes |
| Bolt Material: | Metal |
| Chain Row Quantity: | 1 |
| Color: | Gray |
| Connector Quantity: | 0 |
| Diameter: | 3.67 in |
| Drive Type: | Chain |
| Finish: | Natural |
| Grade Type: | Standard |
| Height: | 1.545 in |
| Inside Diameter: | 1.325 in |
| Material: | Metal |
| Mounting Bolt Quantity: | 1 |
| Mounting Hardware Included: | Yes |
| Mounting Hole Quantity: | 1 |
| Outside Diameter: | 3.27 in |
| Overall Height (in): | 1.545 in |
| Overall Length (In): | 3.67 in |
| Package Contents: | 1 Engine Variable Timing Sprocket; 1 Mounting Bolt |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Tooth Quantity: | 36 |
| Tooth Thickness: | 0.171 mm |
| Width: | 3.67 in |
| Wiring Harness Included: | No |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 1305028011 | TOYOTA |
| 1305028012 | TOYOTA |
