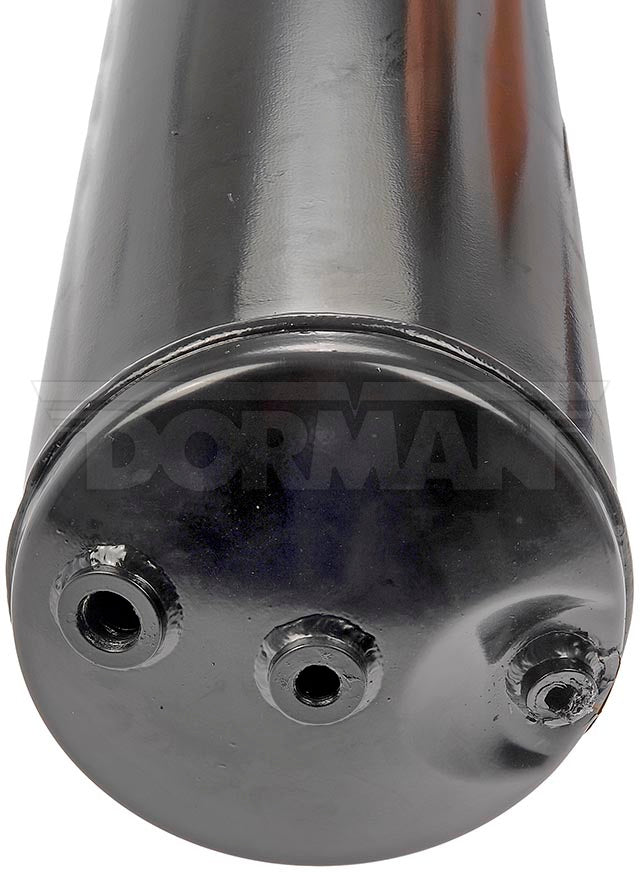

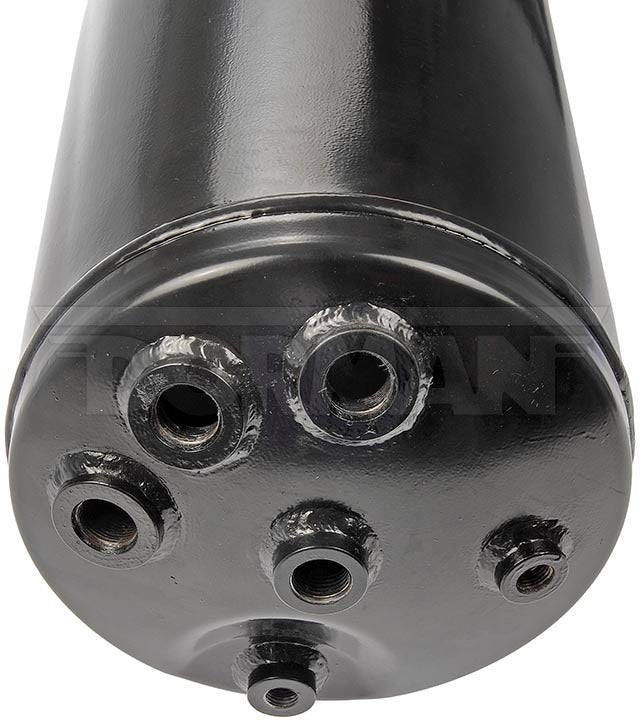

Dorman 924-5807 Air Tank Primary 02-07 International 9100i SBA 3546069C92
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$316.56
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
Maintain the effectiveness of air-actuated braking and suspension systems by replacing a corroded or leaking air tank with a new reservoir. Designed to fit like the original equipment tank with same port configurations.
- Direct replacement - this air reservoir features the same port configuration and physical dimensions as the original tank
- Quality construction - this tank is made with precise port locations and finished in a corrosion-resistant coating inside and outside
- Validation tested - has been salt spray chamber tested internally and externally to meet or exceed industry standard for corrosion resistance
- Excellent value - original equipment quality at a lower cost
Vehicle Fitment
Universal part - not specific to one vehicle. Check the specifications below for size and fit.
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | 924-5807 |
| UPC | 889245201225 |
| Material | Carbon Steel |
| Length | 55 in. |
| Color | Black |
| Mounting Hardware Included | No |
| Diameter | 8.5 in. |
| Mounting Hole Quantity | 0 |
| Capacity | 50 Lt |
| Material Thickness | 0.13 in. |
| Air Tank Type | Tractor |
| Diameter (B) | 8.5 in |
| Length (A) | 55.6 in |
| Maximum Working Pressure | 150 PSI |
| Mounting Type | Strap On |
| Number of Chambers | 1 in. |
| Package Contents | 1 Air Tank |
| Port Quantity | 9 |
| Port Thread Diameter | M22; 3/8 in; 1/4 in; M14; 1/2 in |
| Port Thread Pitch | 1.5 mm |
| Tank Chamber Quantity | 1 |
| Thread Size | 22 m; 3/8 in; 1/4 in; 14 m; 1/2 in |
| Threaded Mounting Bracket Included | No |
| Valve Included | No |
| Volume | 50 L |
| Country of Origin | India |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| 3546069C92 | International (OE) |
|---|---|
| 172.5069 | Interchange |
