Product Description

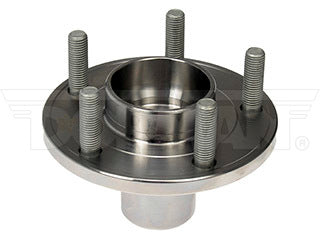

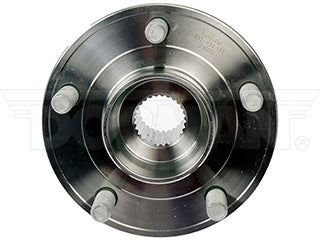

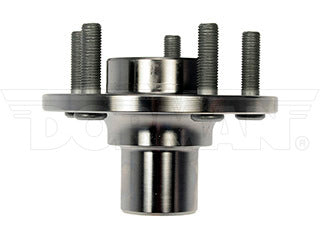

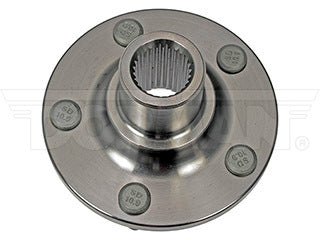

This wheel hub is a direct replacement for the original equipment hub. It has undergone rigorous testing to ensure a proper fit and reliable performance over a long service life.
- Ideal replacement - this wheel hub is a direct replacement for the original equipment hub to ensure proper performance
- Durable construction - this part is made of quality materials for a long service life
- Cost-effective solution - offers original equipment quality at a competitive price
- Quality assured - this wheel hub has undergone dimensional checks and materials and hardness testing to ensure quality standards
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2018 | Ford | C-Max | Front | ||
| 2018 | Ford | Focus | Front | ||
| 2017 | Ford | C-Max | Front | ||
| 2017 | Ford | Focus | Front | ||
| 2016 | Ford | C-Max | Front | ||
| 2016 | Ford | Focus | Front | ||
| 2015 | Ford | C-Max | Front | ||
| 2015 | Ford | Focus | Front | ||
| 2014 | Ford | C-Max | Front | ||
| 2014 | Ford | Focus | Front | ||
| 2013 | Ford | C-Max | Front | ||
| 2013 | Ford | Focus | Front | ||
| 2012 | Ford | Focus | Front |
Product Specifications
| Anti Lock Braking System: | No |
|---|---|
| Bolt Circle Diameter: | 108 mm |
| Brake Pilot Diameter: | 63.5 mm |
| Flange Bolts Included: | No |
| Flange Diameter: | 136.5 mm |
| Hub Material: | Steel |
| Hub Pilot Diameter: | 61 mm |
| Integrated Hub Unit: | No |
| Knuckle Pilot Hole Diameter: | 61 mm |
| Lug Pattern: | 5 |
| Package Contents: | 1 Wheel Hub |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Spline Quantity: | 27 |
| Wheel Pilot Diameter: | 63.3 mm |
| Wheel Stud Quantity: | 5 |
| Wheel Stud Size: | 12 mm |
| Wheel Studs Included: | No |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| CV6Z1104A | CHRYSLER |
| CV6Z1104A | FORD MOTOR COMPANY |
