Product Description

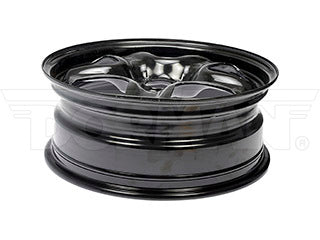

Damaged your wheel, or looking to upgrade? This wheel is specifically designed to directly replace the original wheel on certain vehicle applications. It is thoroughly tested to meet safety standards for reliable performance.
- Direct replacement - this wheel is designed to match the fit and structural appearance of the original wheel on specific vehicle years, makes and models
- Cost-effective solution - offers original equipment quality and appearance for a competitive price
- Thoroughly tested - dynamic radial testing, radial run-out testing, and axial run-out testing ensures performance
- Trustworthy quality - backed by team of designers and engineers in the United States
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2018 | Toyota | RAV4 | 17 In. Steel Wheels | ||
| 2017 | Toyota | RAV4 | 17 In. Steel Wheels | ||
| 2016 | Toyota | RAV4 | 17 In. Steel Wheels | ||
| 2015 | Toyota | RAV4 | 17 In. Steel Wheels | ||
| 2014 | Toyota | RAV4 | 17 In. Steel Wheels | ||
| 2013 | Toyota | RAV4 | 17 In. Steel Wheels |
Product Specifications
| Backspacing: | 127 mm |
|---|---|
| Bolt Pattern: | 5 x 114.3 |
| Bolt Pattern Diameter: | 114.3 mm |
| Bore Diameter: | 60.1 mm |
| Center Cap Included: | No |
| Color: | Black |
| Diameter: | 17 in |
| Dimensions: | 17 x 6.5 |
| Finish: | Semi-Gloss |
| Grade Type: | Standard |
| Hole Quantity: | 5 |
| Inside Diameter: | 432 mm |
| Load Rating (lbs): | 1543 |
| Lug Hole Diameter: | 14.2 mm |
| Lug Hole Quantity: | 5 |
| Lug Nut Insert Included: | No |
| Material: | Steel |
| Negative Offset: | 39 mm |
| Offset: | 39 mm |
| Offset (mm): | 39 mm |
| Package Contents: | 1 Steel Wheel |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Positive Offset: | 39 mm |
| Resonator Included: | No |
| Slot Quantity: | 5 |
| Split Type: | No |
| Spoke Quantity: | 5 |
| TPMS Compatible: | Yes |
| TPMS Included: | No |
| Valve Stem Diameter: | 11 mm |
| Width: | 165.1 mm |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 426110R090 | TOYOTA |
| 426110R090SW | TOYOTA |
| 4261142250 | TOYOTA |
| PZ419X0693TC | TOYOTA |
