Dorman 946-562 Drive Shaft
Regular price
$1,760.66
Couldn't load pickup availability
Product Description

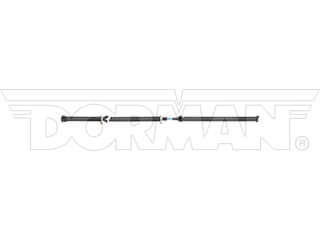

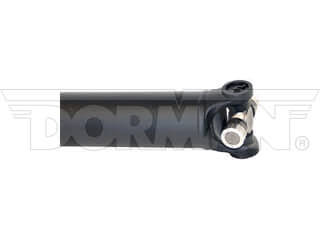

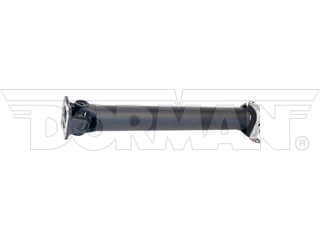

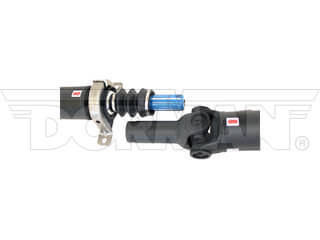

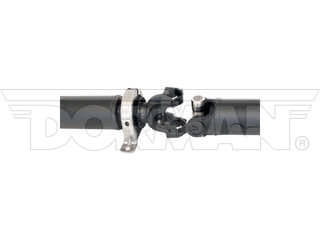

Replacing a drive shaft doesn't have to be complicated. This complete drive shaft assembly is pre-balanced and ready to install with 100% new yokes, tubes, constant velocity (CV) joints and universal joints.
- Direct replacement - this drive shaft is made to the original equipment dimensions for dependable fit and performance
- 100% new - this drive shaft is made from all new components so there's no core charge or return hassle
- Ready to install - this drive shaft arrives pre-balanced to make installation quick and simple
- Serviceable construction - non-staked universal joints are designed for future serviceability
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2004 | Ford | F-550 Super Duty | Cab and Chassis - Conventional; 4 X 2; V8 363 6.0L; DIESEL; Automatic Trans.; 200.8 Inch Wheelbase | Rear | w/Dual Rear Wheels (DRW); 3 Piece Shaft Assembly |
| 2003 | Ford | F-550 Super Duty | Cab and Chassis - Conventional; 4 X 2; V8 363 6.0L; DIESEL; Automatic Trans.; 200.8 Inch Wheelbase | Rear | w/Dual Rear Wheels (DRW); 3 Piece Shaft Assembly |
Product Specifications
| Axle Nut Included: | No |
|---|---|
| CV Joints Included: | No |
| Drive Shaft Length (In): | 134 in |
| Drive Shaft Wall Thickness (In): | 0.083 in |
| Grade Type: | Regular |
| Greaseable Drive Shaft: | Yes |
| Overall Length Adjustable: | Yes |
| Package Contents: | 1 Driveshaft |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Shaft Diameter: | 3.5 in |
| Shaft Material: | Steel |
| Slip Yoke: | Yes |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 3C3Z4R602BY | FORD MOTOR COMPANY |
