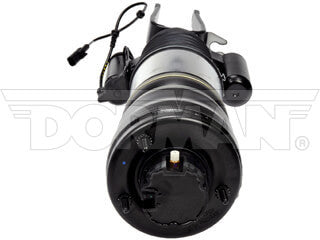

Dorman 949-600 Suspension - Air Strut
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$444.50
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
Product Description
This replacement air strut matches the fit and function of the original equipment strut on specified vehicle applications to restore ride control and prevent damage to other air suspension components.
- Ideal replacement - this air strut replaces the original equipment strut on specified vehicle applications to restore ride quality
- Durable construction - this air strut features quality rubber and metal components
- Thoroughly tested - this air strut has undergone vehicle try-on and durability testing for conformance to product standards and quality
- Trustworthy design - backed by team of engineers in the United States
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2009 | Mercedes-Benz | E300 | AWD | Front Right | w/Code 489 (Semi-Active Airmatic Suspension) |
| 2009 | Mercedes-Benz | E350 | AWD | Front Right | w/Code 489 (Semi-Active Airmatic Suspension) |
| 2008 | Mercedes-Benz | E300 | AWD | Front Right | w/Code 489 (Semi-Active Airmatic Suspension) |
| 2008 | Mercedes-Benz | E350 | AWD | Front Right | w/Code 489 (Semi-Active Airmatic Suspension) |
| 2007 | Mercedes-Benz | E280 | AWD | Front Right | w/Code 489 (Semi-Active Airmatic Suspension) |
| 2007 | Mercedes-Benz | E350 | AWD | Front Right | w/Code 489 (Semi-Active Airmatic Suspension) |
| 2006 | Mercedes-Benz | E350 | AWD | Front Right | w/Code 489 (Semi-Active Airmatic Suspension) |
| 2006 | Mercedes-Benz | E500 | AWD | Front Right | w/Code 489 (Semi-Active Airmatic Suspension) |
| 2005 | Mercedes-Benz | E320 | AWD | Front Right | w/Code 489 (Semi-Active Airmatic Suspension) |
| 2005 | Mercedes-Benz | E500 | AWD | Front Right | w/Code 489 (Semi-Active Airmatic Suspension) |
| 2004 | Mercedes-Benz | E320 | AWD | Front Right | w/Code 489 (Semi-Active Airmatic Suspension) |
| 2004 | Mercedes-Benz | E500 | AWD | Front Right | w/Code 489 (Semi-Active Airmatic Suspension) |
Product Specifications
| Active or Passive Suspension: | Active |
|---|---|
| Adjustable Compression: | Yes |
| Adjustable Rebound: | Yes |
| Adjustable Ride Height: | Yes |
| Air Adjustable: | Yes |
| Air Fitting Style: | Clip |
| Air Line Kit Included: | Yes |
| Bladder Heavy Duty Crimping Rings Included: | No |
| Bladder Sleeve(s) Included: | No |
| Bladder(s) Included: | No |
| Coil Spring Insulator(s) Included: | No |
| Compressed Length: | 698.5 mm |
| Cylinder Color: | Black |
| Cylinder Finish: | Painted |
| Cylinder Outside Diameter: | 118 mm |
| Extended Length: | 731.5 mm |
| Grade Type: | Standard Replacement |
| Includes Bump Stop: | Yes |
| Maximum Air Chamber Pressure: | 3 MPA |
| Mounting Hardware Included: | No |
| Outside Cylinder Diameter: | 50 mm |
| Package Contents: | 1 Air Suspension Strut; Hardware |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Self-Leveling: | Yes |
| Selling Package Quantity UOM: | Piece |
| Shaft Diameter: | 50 mm |
| Strut Mount Insulator(s) Included: | No |
| Travel Length: | 125 mm |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| 2113209613 | MERCEDES-BENZ |
