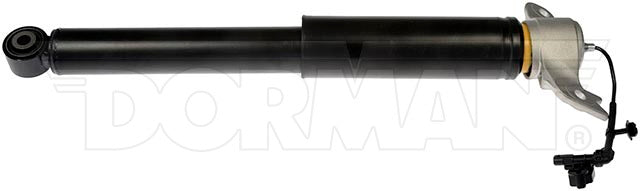

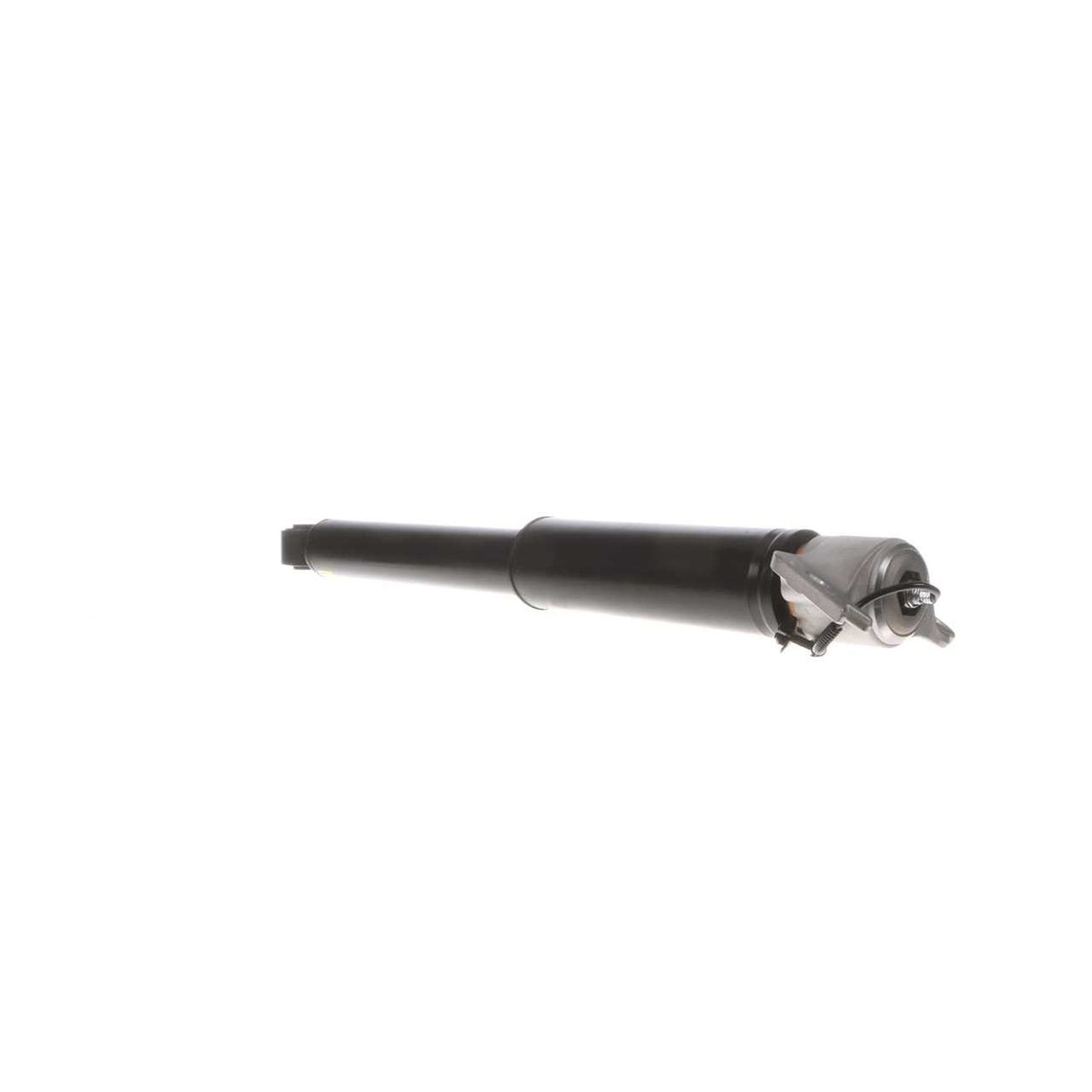

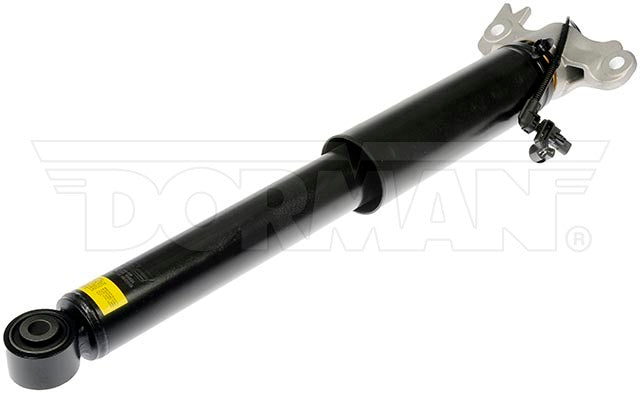

Dorman 949-836 Rear Right Magnetic Ride Control Shock 13-19 Cadillac XTS
Couldn't load pickup availability
When an original equipment front strut assembly fails on certain Cadillac SUVs equipped with magnetic ride control, it's often due to fluid leaks that develop in the strut's top seal assembly. Over time and miles, the factory seals deteriorate from the friction, heat and fluid pressure generated during every compression and rebound cycle of the strut. Ultimately that continuous cyclic load leads to seal failure and with it a loss of damping effectiveness and overall suspension performance, and potentially a failed state inspection. This Dorman OE FIX magnetic ride control shock absorber features an innovative upgraded top seal design that prevents this common and costly cause of failure. Our patent-pending top seal block assembly absorbs impact pressure better by more effectively and efficiently relieving and restoring cyclic fluid pressure on demand, virtually eliminating the relentless and damaging internal fluid pressurization inherent in the original equipment's design. In addition, this assembly features more durable mounting points to help ensure long service life under the toughest conditions.
- Upgraded design - this magnetic ride control shock absorber has an innovative top seal design to prevent fluid leaks that can cause strut failure on certain Cadillac SUVs
- Increased reliability - engineered with stronger and more durable mounting points to help ensure long service life under the toughest conditions
- Direct replacement - designed and manufactured to exacting specifications to match the performance of the original equipment strut in specified applications
- Advanced technology - features the same magnetic ride control functionality, or magnetorheological (MR) damping, as factory equipment to restore like-new ride feel and performance
Vehicle Fitment
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2013-2019 | Cadillac | XTS | Rear Right | Active; w/RPO Code F55 (Continuously Variable Real Time Magnetic Dampening) |
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | 949-836 |
| UPC | 194883240834 |
| Placement | Rear, Right |
| Color | Black |
| Type | Telescopic |
| Mounting Hardware Included | No |
| Extended Length | 582.4 mm |
| Shock Stroke | 160 mm |

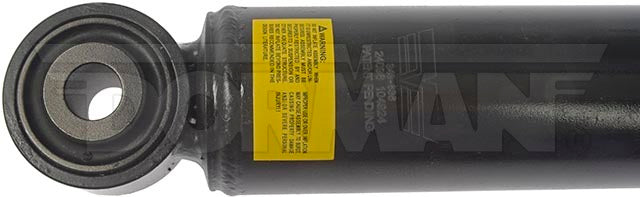

| Lower Mount Type | Bushed Eyelet |

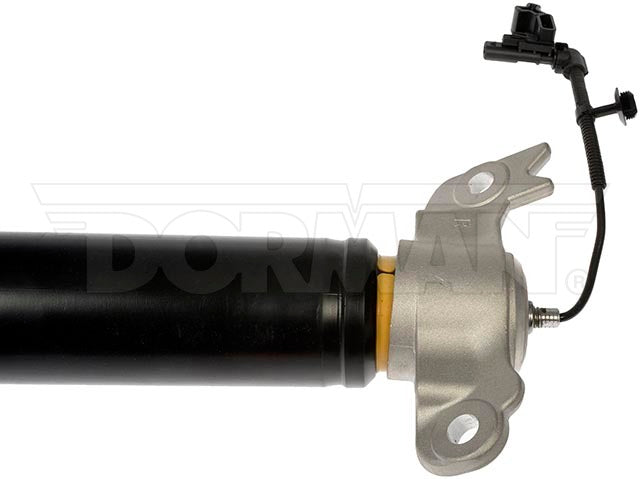

| Upper Mount Type | Thru-hole |
| Boot Included | Yes |
| Gas Charged | Yes |
| Body Diameter | 50 mm |
| Compressed Length | 420.4 mm |
| Travel Length | 160 mm |
| Finish | Painted |
| Shaft Material | Steel |
| Shock Absorber Rod End Measuring Point | Piston-Rod (Shaft) |
| Shock Absorber Body End Measuring Point | Center of Mounting Ring |
| Body Material | Steel |
| Rod Diameter | 14 mm |
| Body Color | Black |
| Cylinder Material | Steel |
| Cylinder Outside Diameter | 50 mm |
| Internal Construction Type | Single Tube |
| Grade Type | Standard Replacement |
| Cylinder Color | Black |
| Adjustable Compression | Yes |
| Dust Shield Included | Yes |
| Dust Shield Material | Plastic |
| Internal Rebound Spring | No |
| Remote Reservoir | No |
| Bladder Heavy Duty Crimping Rings Included | No |
| Strut Mount Insulator(s) Included | Yes |
| Coil Spring Insulator(s) Included | No |
| Damping Adjustment Type | Electronic |
| Includes Bump Stop | Yes |
| Dust Shield Diameter | 68 mm |
| Valving Type | Digressive |
| Adjustable Ride Height | No |
| Self-Leveling | No |
| Active or Passive Suspension | Active |
| Cylinder Finish | Powder Coated |
| Adjustable | Yes |
| Adjustable Damping | Yes |
| Coil Over Springs Included | No |
| Dust Shield | Yes |
| Internal Rebound Bumper | Yes |
| Lower Mount Code | Bushed Eyelet |
| Package Contents | 1 Magnetic Shock |
| Upper Mount Code | Thru-hole |
| Upper Mounting Isolator Included | Yes |
| Country of Origin | China |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| 84326294 | General Motors (OE) |
|---|---|
| MR-4359 | Interchange |
| SK-3357 | Interchange |
