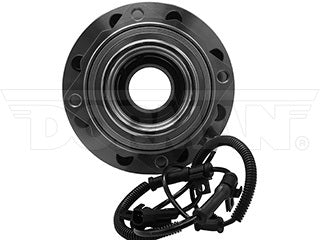

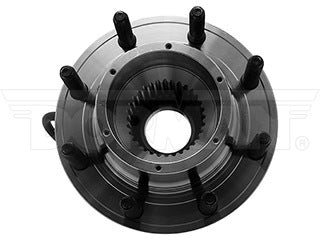

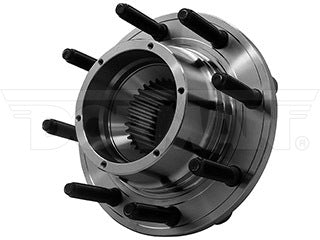

Dorman 951-135 Wheel Bearing and Hub Assembly
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$378.70
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
Product Description
This replacement wheel bearing and hub assembly comes with the hub and critical bearing replacement components included for a complete repair on specific vehicle applications.
- Complete repair - this assembly includes the wheel hub and application-specific bearing components
- Saves time - eliminates work required to remove individual corroded components
- Reliable fit - precision-engineered to match the dimensions of original equipment
- Trustworthy quality - engineered and tested in the United States
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2016 | Ford | F-250 Super Duty | 4WD | Front | |
| 2016 | Ford | F-350 Super Duty | 4WD | Front | w/Single Rear Wheel (SRW) |
| 2015 | Ford | F-250 Super Duty | 4WD | Front | |
| 2015 | Ford | F-350 Super Duty | 4WD | Front | w/Single Rear Wheel (SRW) |
| 2014 | Ford | F-250 Super Duty | 4WD | Front | |
| 2014 | Ford | F-350 Super Duty | 4WD | Front | w/Single Rear Wheel (SRW) |
| 2013 | Ford | F-250 Super Duty | 4WD | Front | |
| 2013 | Ford | F-350 Super Duty | 4WD | Front | w/Single Rear Wheel (SRW) |
| 2012 | Ford | F-250 Super Duty | 4WD | Front | |
| 2012 | Ford | F-350 Super Duty | 4WD | Front | w/Single Rear Wheel (SRW) |
| 2011 | Ford | F-250 Super Duty | 4WD | Front | |
| 2011 | Ford | F-350 Super Duty | 4WD | Front | w/Single Rear Wheel (SRW) |
Product Specifications
| Anti Lock Brake Sensor Included: | Yes |
|---|---|
| Anti Lock Braking System: | Yes |
| Anti Lock Braking System Type: | Sensor |
| Bearing Type: | Taper |
| Bolt Circle Diameter: | 170 mm |
| Brake Pilot Diameter: | 129 mm |
| Connector Gender: | Female |
| Connector Quantity: | 1 |
| Connector Terminal Quantity: | 2 |
| Drive Type: | Driven |
| Flange Bolt Hole Diameter: | 165 mm |
| Flange Bolt Hole Quantity: | 4 |
| Flange Bolts Included: | No |
| Flange Diameter: | 203 mm |
| Flange Included: | Yes |
| Flange Offset: | 46.3 mm |
| Flange Shape: | Square |
| Knuckle Pilot Hole Diameter: | 140 mm |
| Material: | Steel |
| Mounting Hardware Included: | No |
| Package Contents: | 1 Wheel Hub Assembly |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Selling Package Quantity UOM: | Piece |
| Spline Quantity: | 32 |
| Terminal Gender: | Male |
| Wheel Pilot Diameter: | 125 mm |
| Wheel Stud Quantity: | 8 |
| Wheel Stud Size: | M14 x 1.5 |
| Wheel Studs Included: | Yes |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| DC3Z1104A | FORD MOTOR COMPANY |
