Dorman 951-837 Wheel Bearing and Hub Assembly
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
Regular price
$214.78
Couldn't load pickup availability
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.
Product Description

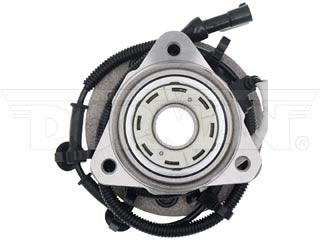

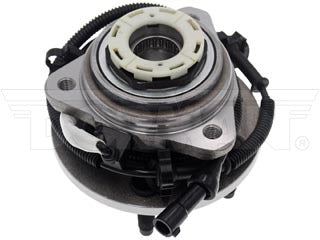

This replacement wheel bearing and hub assembly comes with the hub and critical bearing replacement components included for a complete repair on specific vehicle applications.
- Complete repair - this assembly includes the wheel hub and application-specific bearing components
- Saves time - eliminates work required to remove individual corroded components
- Reliable fit - precision-engineered to match the dimensions of original equipment
- Trustworthy quality - engineered and tested in the United States
Detailed Applications
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2004 | Mazda | B4000 | 4-Wheel ABS; 4WD | Front | w/Pulse Vacuum Locking Hubs |
| 2003 | Mazda | B4000 | 4-Wheel ABS; 4WD | Front | w/Pulse Vacuum Locking Hubs |
| 2002 | Mazda | B3000 | 4-Wheel ABS; 4WD | Front | w/Pulse Vacuum Locking Hubs |
| 2002 | Mazda | B4000 | 4-Wheel ABS; 4WD | Front | w/Pulse Vacuum Locking Hubs |
| 2001 | Mazda | B3000 | 4-Wheel ABS; 4WD | Front | w/Pulse Vacuum Locking Hubs |
| 2001 | Mazda | B4000 | 4-Wheel ABS; 4WD | Front | w/Pulse Vacuum Locking Hubs |
| 2000 | Ford | Explorer | 4-Wheel ABS; 4WD | Front | w/Pulse Vacuum Locking Hubs |
| 2000 | Ford | Ranger | 4-Wheel ABS; 4WD | Front | w/Pulse Vacuum Locking Hubs |
| 2000 | Mazda | B4000 | 4-Wheel ABS; 4WD | Front | w/Pulse Vacuum Locking Hubs |
| 1999 | Ford | Explorer | 4-Wheel ABS; 4WD | Front | w/Pulse Vacuum Locking Hubs |
| 1999 | Ford | Ranger | 4-Wheel ABS; 4WD | Front | w/Pulse Vacuum Locking Hubs |
| 1999 | Mazda | B4000 | 4-Wheel ABS; 4WD | Front | w/Pulse Vacuum Locking Hubs |
| 1998 | Ford | Explorer | 4-Wheel ABS; 4WD | Front | w/Pulse Vacuum Locking Hubs |
| 1998 | Ford | Ranger | 4-Wheel ABS; 4WD | Front | w/Pulse Vacuum Locking Hubs |
| 1998 | Mazda | B4000 | 4-Wheel ABS; 4WD | Front | w/Pulse Vacuum Locking Hubs |
Product Specifications
| Anti Lock Brake Sensor Included: | Yes |
|---|---|
| Anti Lock Braking System: | Yes |
| Anti Lock Braking System Type: | Sensor |
| Bolt Circle Diameter: | 114.3 mm |
| Brake Pilot Diameter: | 72 mm |
| Connector Quantity: | 0 |
| Flange Bolt Hole Diameter: | 12 mm |
| Flange Bolt Hole Quantity: | 3 |
| Flange Bolts Included: | No |
| Flange Diameter: | 149.5 mm |
| Flange Included: | Yes |
| Flange Offset: | 56.2 mm |
| Flange Shape: | Triangular |
| Hub Pilot Diameter: | 100.1 mm |
| Material: | Steel |
| Package Contents: | 1 Wheel Bearing and Hub Assembly |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Selling Package Quantity UOM: | Piece |
| Spline Quantity: | 0 |
| Wheel Pilot Diameter: | 70.5 mm |
| Wheel Stud Quantity: | 5 |
| Wheel Stud Size: | 1/2-20 |
| Wheel Studs Included: | Yes |
OE Numbers
| DIRECT OE CROSS | |
|---|---|
| F87A 1104-AB | FORD MOTOR COMPANY |
| F87Z 1104-AB | FORD MOTOR COMPANY |
| G2MZ1104AA | FORD MOTOR COMPANY |
| XL5Z 1104-A | FORD MOTOR COMPANY |
| ZZP0-33-061 | MAZDA |
| NON-DIRECT OE CROSS | |
|---|---|
| ZZP033061A | MAZDA |
