Dorman Products

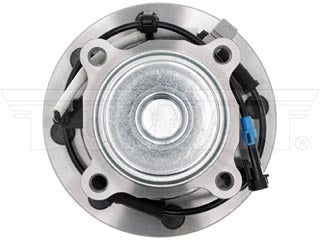

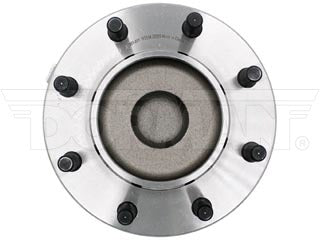

Dorman 951-891 Wheel Bearing and Hub Assembly

In stock
SKU: 591|951891
Confirm Fitment Before You Buy
Not sure it fits? Message Year/Make/Model/Engine (2WD/4WD if applicable) and we’ll help confirm compatibility.
Why buy from Koskowski Automotive?
• 50+ years (since 1972) • Dorman Authorized Seller • Fast shipping • Easy returns
$212.66
Vehicle Fitment: Use the table below to match your exact configuration. If you don’t see your exact setup, message us before ordering.

Product details

  • SKU 591|951891
  • Barcode 194883011656

Share this item!

Description

Product Description

This replacement wheel bearing and hub assembly comes with the hub and critical bearing replacement components included for a complete repair on specific vehicle applications.

  • Complete repair - this assembly includes the wheel hub and application-specific bearing components
  • Saves time - eliminates work required to remove individual corroded components
  • Reliable fit - precision-engineered to match the dimensions of original equipment
  • Trustworthy quality - engineered and tested in the United States

Detailed Applications

Year Make Model Configuration Positions Application Notes
2017 Chevrolet Express 3500 Front 14,050 Lb. GVW
2017 GMC Savana 3500 Front 14,050 Lb. GVW
2016 Chevrolet Express 3500 Front 14,050 Lb. GVW
2016 GMC Savana 3500 Front 14,050 Lb. GVW
2015 Chevrolet Express 3500 Front 14,050 Lb. GVW
2015 GMC Savana 3500 Front 14,050 Lb. GVW
2014 Chevrolet Express 3500 Front 14,050 Lb. GVW
2014 GMC Savana 3500 Front 14,050 Lb. GVW
2013 Chevrolet Express 3500 Front 14,050 Lb. GVW
2013 GMC Savana 3500 Front 14,050 Lb. GVW
2012 Chevrolet Express 3500 Front 10,000 Lb. GVW; 12,300 Lb. GVW; 14,200 Lb. GVW; 13,980 Lb. GVW
2012 GMC Savana 3500 Front 10,000 Lb. GVW; 12,300 Lb. GVW; 14,200 Lb. GVW; 13,980 Lb. GVW
2011 Chevrolet Express 3500 Front 10,000 Lb. GVW; 12,300 Lb. GVW; 14,200 Lb. GVW; 13,980 Lb. GVW
2011 GMC Savana 3500 Front 10,000 Lb. GVW; 12,300 Lb. GVW; 14,200 Lb. GVW; 13,980 Lb. GVW
2010 Chevrolet Express 3500 Front 10,000 Lb. GVW; 12,300 Lb. GVW; 14,200 Lb. GVW; 13,980 Lb. GVW
2010 GMC Savana 3500 Front 10,000 Lb. GVW; 12,300 Lb. GVW; 14,200 Lb. GVW; 13,980 Lb. GVW
2009 Chevrolet Express 3500 Front 10,000 Lb. GVW; 12,300 Lb. GVW; 14,200 Lb. GVW; 13,980 Lb. GVW
2009 GMC Savana 3500 Front 10,000 Lb. GVW; 12,300 Lb. GVW; 14,200 Lb. GVW; 13,980 Lb. GVW
2008 Chevrolet Express 3500 Front 10,000 Lb. GVW; 12,300 Lb. GVW; 14,050 Lb. GVW
2008 GMC Savana 3500 Front 10,000 Lb. GVW; 12,300 Lb. GVW; 14,050 Lb. GVW
2007 Chevrolet Express 3500 Front 10,000 Lb. GVW; 12,300 Lb. GVW; 14,050 Lb. GVW
2007 GMC Savana 3500 Front 10,000 Lb. GVW; 12,300 Lb. GVW; 14,050 Lb. GVW
2006 Chevrolet Express 3500 Front 10,000 Lb. GVW; 12,300 Lb. GVW; 14,050 Lb. GVW
2006 GMC Savana 3500 Front 10,000 Lb. GVW; 12,300 Lb. GVW; 14,050 Lb. GVW
2005 Chevrolet Express 3500 Front 10,000 Lb. GVW; 12,300 Lb. GVW; 14,050 Lb. GVW
2005 GMC Savana 3500 Front 10,000 Lb. GVW; 12,300 Lb. GVW; 14,050 Lb. GVW
2004 Chevrolet Express 3500 Front 12,000 Lb. GVW; 10,000 Lb. GVW; 12,300 Lb. GVW
2004 GMC Savana 3500 Front 12,000 Lb. GVW; 10,000 Lb. GVW; 12,300 Lb. GVW

Product Specifications

Anti Lock Brake Sensor Included: Yes
Anti Lock Braking System: Yes
Anti Lock Braking System Type: Sensor
Bolt Circle Diameter: 165 mm
Brake Pilot Diameter: 117.8 mm
Connector Gender: Female
Connector Quantity: 1
Connector Terminal Quantity: 2
Flange Bolt Hole Diameter: 140 mm
Flange Bolt Hole Quantity: 4
Flange Bolts Included: No
Flange Diameter: 199.5 mm
Flange Included: Yes
Flange Offset: 65.1 mm
Flange Shape: Square
Hub Pilot Diameter: 105.8 mm
Material: Steel
Package Contents: 1 Wheel Hub Assembly
Package Quantity: 1
Packaging Type: Box
Selling Package Quantity UOM: Piece
Spline Quantity: 0
Terminal Gender: Male
Wheel Pilot Diameter: 116.65 mm
Wheel Stud Quantity: 8
Wheel Stud Size: M14x1.5
Wheel Studs Included: Yes

OE Numbers

DIRECT OE CROSS
84327583 GENERAL MOTORS
