Product Description

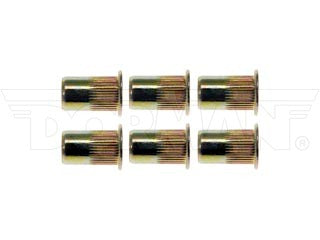

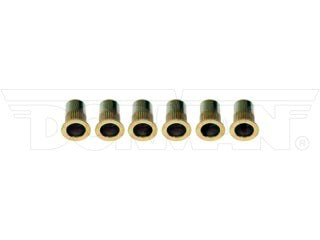

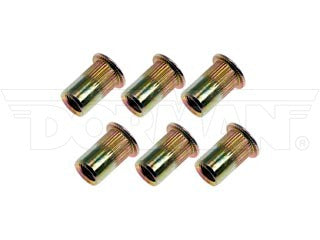

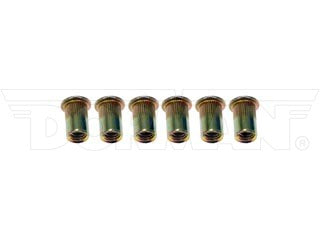

When an original riveted connection fails, or when mounting aftermarket fenders, spoilers, racks or other accessories, this tubular steel rivet nut is a fast and simple way to ensure a strong connection between the surfaces of two materials. Precision-manufactured for an exact fit inside a predrilled hole, this 1/4"-20 rivet nut anchors entirely from just one accessible side to create an internally threaded insert ready for bolting.
- Ideal solution - this 1/4"-20 rivet nut is designed to be anchored entirely from just one accessible side to create an internally threaded insert ready for bolting
- Diverse applications - effective way to install a wide variety of aftermarket accessories to vehicle body panels and the chassis when a conventional nut-and-bolt connection is impossible
- Durable construction - salt spray-tested for corrosion resistance and manufactured from quality steel to create a strong, secure connection between mating parts in specific applications
- Trustworthy quality - backed by a team of product experts in the United States and more than a century of automotive experience
Product Specifications
| ACQ Rated: | No |
|---|---|
| Attached Washer: | Yes |
| Callout Size: | 1/4-20 in |
| Color: | Yellow Zinc |
| Depth: | 0.54 in |
| Drill Size: | 3/8 in |
| FQA Compliant: | No |
| Grade: | Grade 5 |
| Heat Hardened: | No |
| Inside Diameter: | 1/4 in |
| Locking: | Yes |
| Material: | Steel |
| Package Contents: | 6 Rivet Nuts |
| Package Quantity: | 6 |
| Packaging Type: | Clamshell |
| Partial Thread: | Yes |
| SAE or Metric: | SAE |
| Seat Type: | Flat |
| Selling Package Quantity UOM: | Piece |
| Shouldered End: | No |
| Thread Diameter: | 1/4 in |
| Thread Direction: | Right Hand Thread |
| Thread Length: | 0.32 in |
| Thread Pitch: | 0 |
| Thread Type: | Coarse |
| Threads Per Inch: | 20 |
| Tool Size: | 1/4 in |
| Type: | Rivet Nut |
| Zinc Coated: | Yes |
