Regular price
$11.04
Couldn't load pickup availability
No reviews
Product details
- SKU 591|963264D
- Barcode 194883056916
Share this item!
Product Description

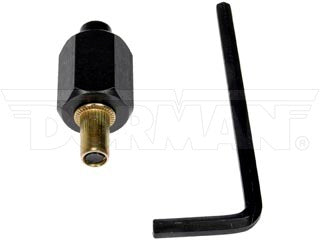

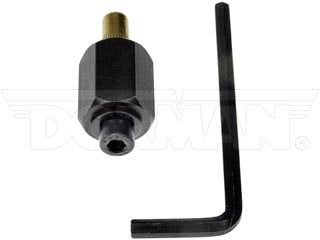

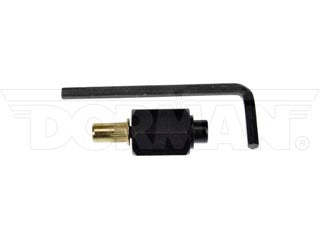

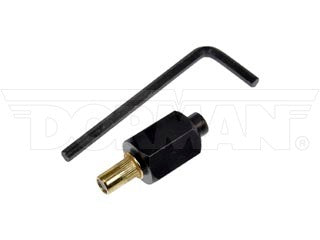

Looking for a simple way to install rivet nuts without the expense of specialized manual or pneumatic tools? This basic but very effective rivet setter tool is as easy and cost-effective as it gets. Simply mount an M5 rivet nut to the threaded bolt, press the setter into the predrilled hole in the materials to be connected, and turn the bolt end with a wrench to compress the rivet. This handy tool is made of corrosion-resistant steel, threaded to precise tolerances for an exact fit, and includes one M5 rivet nut.
- Cost-effective solution - this rivet nut installation bolt will set and install an M5 rivet nut, which can be compressed by turning the bolt with a wrench, eliminating the need for specialized rivet installation tools
- Diverse applications - simplest method to install rivet nuts, a hassle-free way to install a wide variety of aftermarket accessories to vehicle body panels and the chassis when a conventional nut-and-bolt connection is impossible
- Durable construction - salt spray-tested for corrosion resistance, precision-threaded and manufactured from quality steel for long and reliable service
- Quality assured - backed by a team of product experts in the United States and more than a century of automotive experience
Product Specifications
Callout Size: | M5-0.8 |
---|---|
Color: | Black; Yellow Zinc |
Depth: | 24 mm |
Drill Size: | 5/16 in |
Finish: | Black; Yellow Zinc |
FQA Compliant: | No |
Grade: | Grade 5 |
Head Tool Size: | 4mm; 14 mm |
Head Type: | Socket; Hex |
Heat Hardened: | No |
Material: | Steel |
Overall Length: | 35 mm |
Package Contents: | 1 Rivet Nut Tool; 1 Rivet Nut; 1 Allen Key |
Package Quantity: | 1 |
Packaging Type: | Clamshell |
Partial Thread: | Yes |
SAE or Metric: | Metric |
Selling Package Quantity UOM: | Kit |
Shank Length: | 8 mm |
Specialty: | Yes |
Thread Diameter: | M5 |
Thread Direction: | Right Hand Thread |
Thread Length: | 24 mm |
Thread Pitch: | 0.8 |
Thread Type: | Coarse |
Threads Per Inch: | 0 |
Type: | Rivet Nut Tool |
Zinc Coated: | No; Yes |
