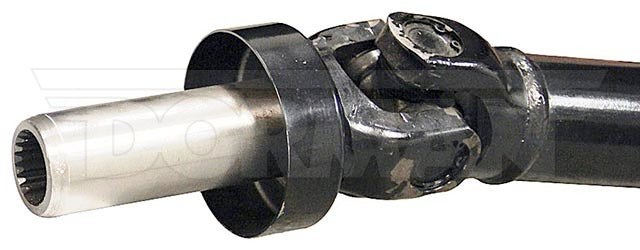

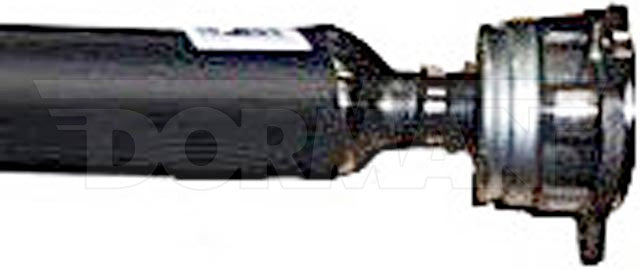

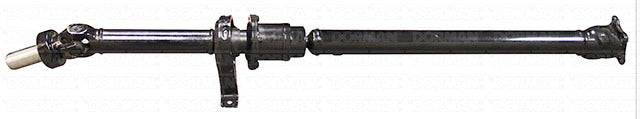

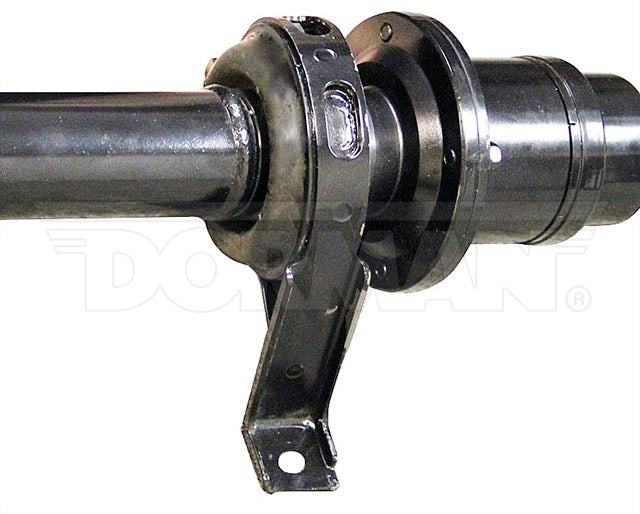

Dorman 966-431 Rear 2-Piece Steel Driveshaft Assembly 01-03 Suzuki Grand Vitara
Couldn't load pickup availability
Product details
- SKU 591|966431
- Barcode 194883661554
Share this item!
Upgrade and simplify your driveshaft replacement with a premium driveshaft that's delivered fully assembled, dynamically pre-balanced and ready for a fast, hassle-free installation on specified vehicle makes, models and years. Engineered and manufactured in the USA, the driveshaft is manufactured from high-precision, drawn over mandrel (DOM) seamless steel tubing that offers superior concentricity, uniform wall thickness and greater torsional strength and dent resistance than standard welded steel. The assembly includes 100% new—not remanufactured—components, including yokes, CV joints and U-joints. A premium quality driveshaft assembly deserves premium packaging; this product ships in protective foam-in-place packaging to ensure it arrives in the same pristine, install-ready condition in which it left the manufacturing facility.
- Ready to install - this premium driveshaft assembly arrives fully assembled, dynamically pre-balanced and ready for a fast, hassle-free installation on specified vehicle makes, models and years
- Premium shaft - made from drawn over mandrel (DOM) seamless steel tubing for superior concentricity, uniform wall thickness and more torsional strength and dent resistance than standard welded steel
- All-new construction - built in the USA with 100% new—not remanufactured—tubing, yokes, CV joints, and U-joints
- Superior packaging - assembly ships in protective foam-in-place packaging to ensure it is delivered in the same pristine, install-ready condition in which it left the manufacturing facility
Vehicle Fitment
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2001 | Suzuki | Grand Vitara | Rear | RWD |
| 2002-2003 | Suzuki | XL-7 | Rear | RWD |
Please confirm the part number and your vehicle's year, make, model and engine before ordering. Questions? Message us with your VIN and we'll check fitment for you.
Specifications
| Brand | Dorman |
|---|---|
| Part Number | 966-431 |
| UPC | 194883661554 |
| Placement | Rear |
| Compressed Length | 64.25 in. |
| Shaft Material | Steel |
| Shaft Diameter | 2.5 in. |
| End 1 Type | Slip Yoke |
| End 2 Type | Bolt-On |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Universal Joints Included | Yes |
| CV Joints Included | Yes |
| Axle Nut Included | No |
| Grade Type | Standard Replacement |
| Slip Yoke | Yes |
| Max Slip | 1 in. |
| Phase Degrees | 0 |
| Phased | No |
| Collapsed Length (Yoke To Bearing) | 32.75 in. |
| Collapsed Length (Flange Face To Flange Face) | 64.25 in. |
| Collapsed Length (Yoke To Flange Face) | 64.25 in. |
| Greaseable Drive Shaft | Yes |
| Drive Shaft Length (In) | 65.25 in |
| Drive Shaft Wall Thickness (In) | 0.065 in |
| Overall Length Adjustable | Yes |
| Package Contents | 1 Driveshaft |
| Country of Origin | United States |
| Warranty | Limited Lifetime |
OE & Interchange Numbers
| 2710052D10 | Suzuki (OE) |
|---|---|
| 2710052D11 | Suzuki (OE) |
